External Floppy Drive

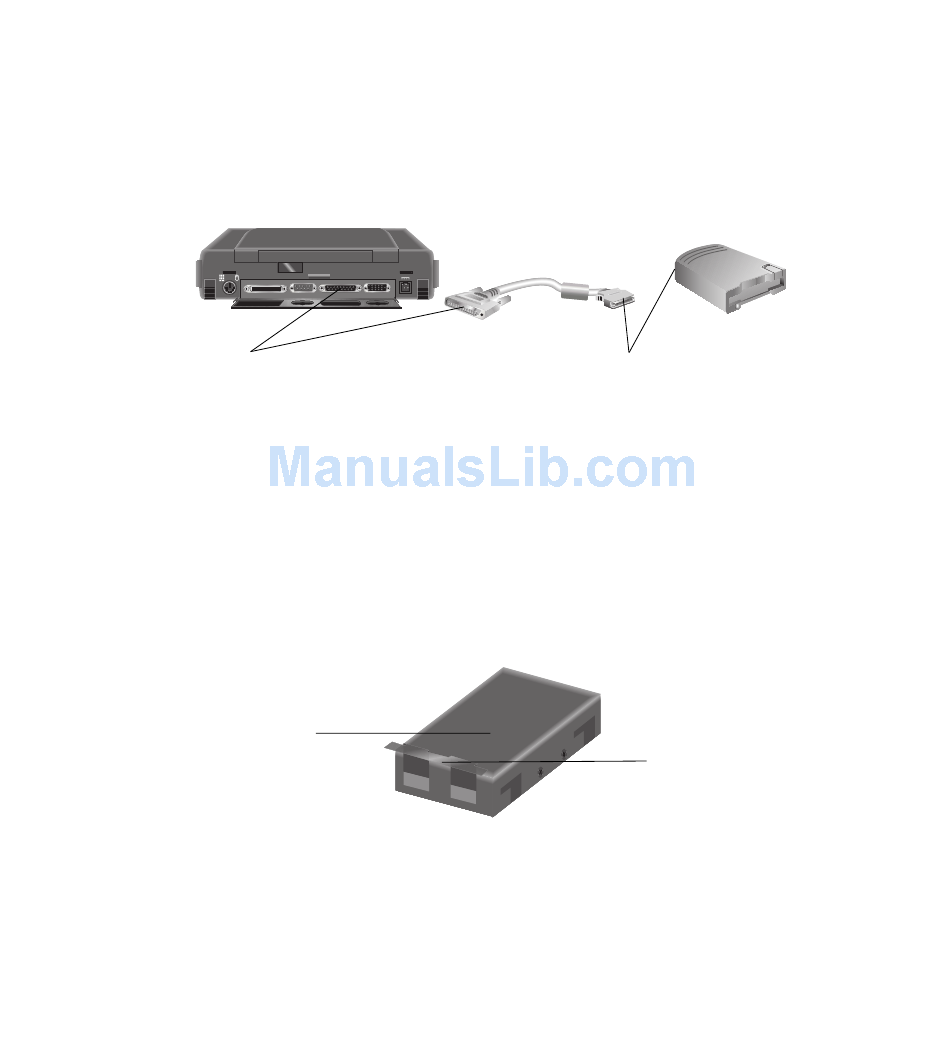

The system accepts an optional external floppy disk drive. This drive connects to the
floppy/parallel port on the back of the unit as shown below. (It also connects to the
floppy/parallel port on the docking bar. See page 24.) This connection requires a
floppy drive cable:
Step 1: Step 1: Step 1: Step 1: Step 1:
connect the cable's parallel connector
to the unit's (or the docking bar's)
floppy/parallel port.
When the floppy disk drive is installed and active, the floppy disk drive LED lights on
the external floppy disk drive. (External drives do not affect status display bar icons.)

Hard Disk Drive

The system's hard disk drive (HDD) may be removed from the unit for replacement
or for switching between different hard drives.
Hard disk drive: Hard disk drive: Hard disk drive: Hard disk drive: Hard disk drive:
The instructions on the following page detail the procedure for removing and
replacing the hard disk drive:
Step 2: Step 2:
Step 2: Step 2: Step 2:
connect the cable's other connec-
tor to the floppy drive's connector
(not shown).
HDD release latch: HDD release latch: HDD release latch:
HDD release latch: HDD release latch:
