Design Guide
Refrigerator
r
23-7/8"From
Rearof
Refrigerator
Frameless Cabinets: The casetrim
overlaps cabinetsat the top end sides,
Therefore frameLess cabinetsmay require
filler stripsto preventinterference with
cabinetdoorswing.The opening must
allowfor filler strips.
Case
Trim
3/4"
1/2"
1/4":
Door
Top View

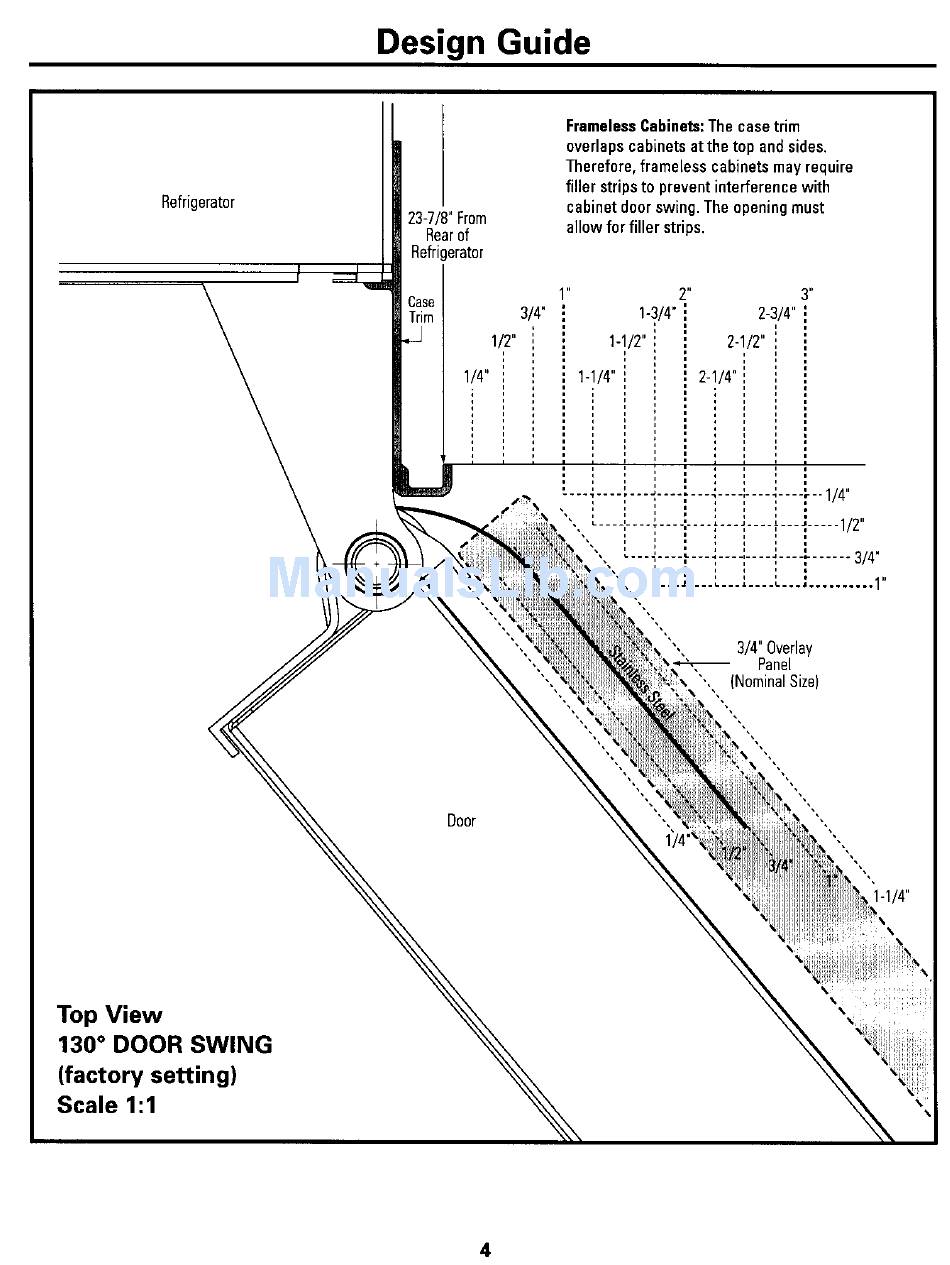

130 ° DOOR SWING
(factory
setting)
Scale 1:1
%
4
