Summary of Contents for Husqvarna LTH19530

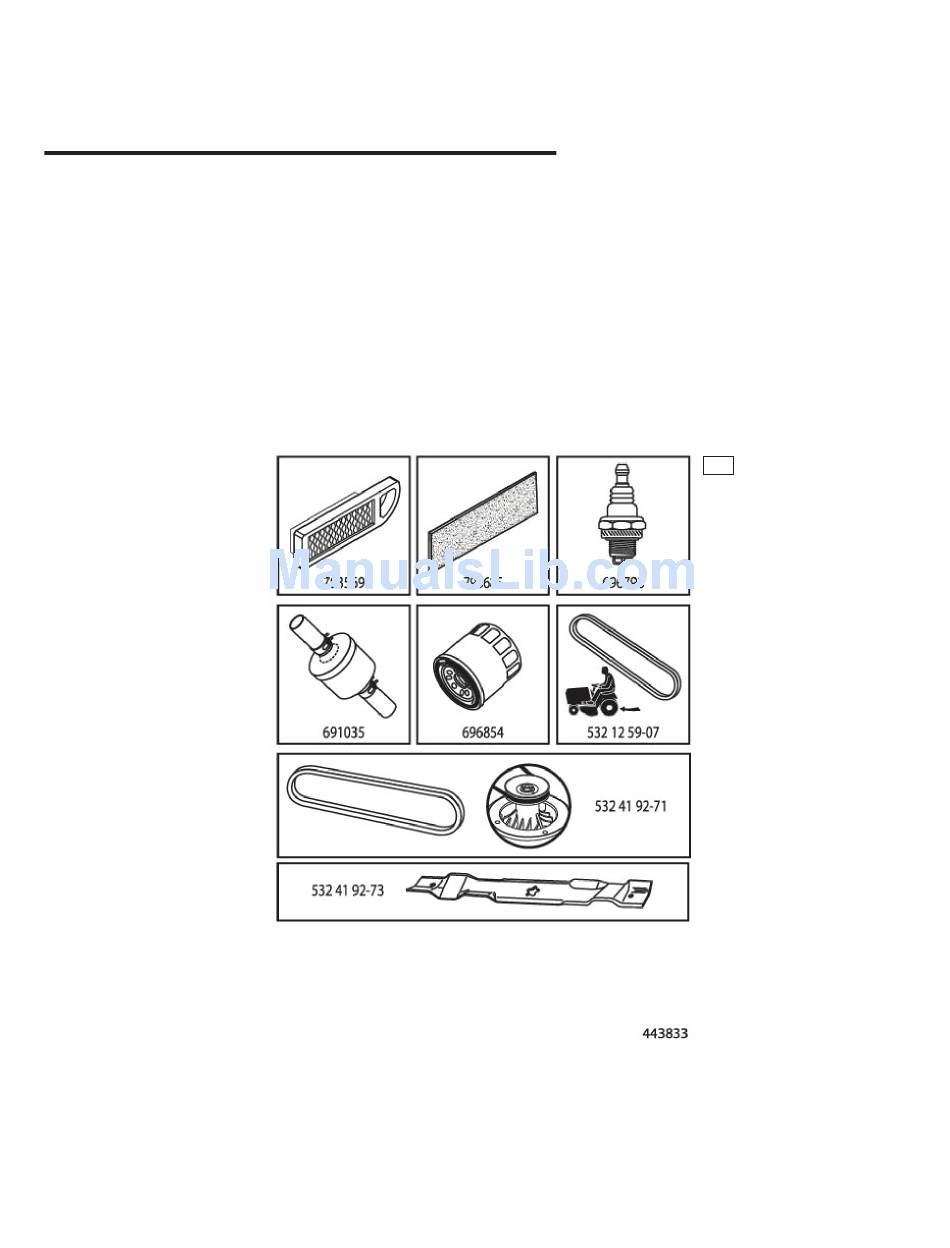

- Page 1 ILLUSTRATED PARTS LIST MFG. ID NO. 96041016903 CUSTOMER CATALOG NO. LTH19530 PRODUCT NO. 960 41 01-69 583 95 93-23 Rev. 1...
-
Page 2: Wheels And Tires
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 DECALS 27 PART PART DESCRIPTION DESCRIPTION 532 42 51-12 Decal, Warning Deflector 532 19 68-41 Decal, Warning Engine Symbols 532 42 15-43 Decal, Mower V-Belt Schematic 581 62 73-01... - Page 3 TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 SCHEMATIC 38 SCH11 BATTERY SOLENOID STARTER FUSE AMMETER BLACK (OPTIONAL) WHITE WHITE ATTACHMENT CLUTCH (CLUTCH OFF) BLACK CLUTCH/BRAKE GRAY (PEDAL UP) REVERSE SWITCH BLACK (NOT IN REVERSE) BLACK...
- Page 4 TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 ELECTRICAL 32 TR09S With Service Minder Option...
- Page 5 TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 ELECTRICAL 32 PART DESCRIPTION 532 14 49-24 Battery 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4 532 19 32-28 Box Battery 532 17 61-38 Switch Interlock Push-In...
-
Page 6: Chassis And Enclosures
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 CHASSIS AND ENCLOSURES 39 chassis-tex_TEX LT HUSQ_29_r1... - Page 7 TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 CHASSIS AND ENCLOSURES 39 PART PART DESCRIPTION DESCRIPTION 532 40 50-12 Logo 873 90 05-00 Nut Lock Hex Flange 5/16-18 532 43 89-64 Dash 532 41 34-85 Plate Deck Lift...
- Page 8 TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 DRIVE 40 drive-tex_T2_pedal_17...
- Page 9 TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 DRIVE 40 PART DESCRIPTION – – – – – – Transaxle, Hydro T2-BABC-1X2B-1GX1 (421645) (Order parts from transaxle manufacturer) 532 12 35-83 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
- Page 10 TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 ENGINE 24 OPTIONAL EQUIPMENT Spark Arrester engine-tex_BS_36...
- Page 11 TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 ENGINE 24 PART DESCRIPTION – – – – – – Engine Briggs Model No. 31Q677- 3493-G5 (438681) (Order parts from engine manufacturer) 532 13 73-52 Muffler 532 19 43-19...
- Page 12 TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 STEERING ASSEMBLY 41 steering-tex_STDHRS_10_r1...
-
Page 13: Steering Assembly
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 STEERING ASSEMBLY 41 PART DESCRIPTION 532 43 97-40 Wheel, Steering 532 41 81-68 Axle Asm., Front 532 41 68-45 Spindle Asm., LH 532 41 68-46 Spindle Asm., RH... -
Page 14: Mower Deck
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 MOWER DECK 44 tex-deck_SRD_25_r1... - Page 15 TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 MOWER DECK 44 PART PART DESCRIPTION DESCRIPTION 532 44 20-48 Deck Weldment 30"Srd 532 19 70-26 Spring Torsion Dfl 38/42/46 Gr 532 19 51-61 Stud Fastner W/'D'anti-Rotatio 532 11 04-52 Nut Push Phos &...
-
Page 16: Mower Lift
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 MOWER LIFT 45 101* lift-tex_18_r4 *Key 91 may be substituted for Key 101 PART PART DESCRIPTION DESCRIPTION 532 19 51-81 Link Asm Lift LH Rear 532 42 20-27 Shaft Asm., Lift... -
Page 17: Seat Assembly
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69 SEAT ASSEMBLY 42 seat-tex_6-tex LT PART PART DESCRIPTION DESCRIPTION 873 80 05-00 Nut, Lock 5/16-18 unc 532 43 98-22 Seat 532 19 76-61 Handle Slide Seat 532 18 01-66... - Page 18 05.15.13 BD/TH...
