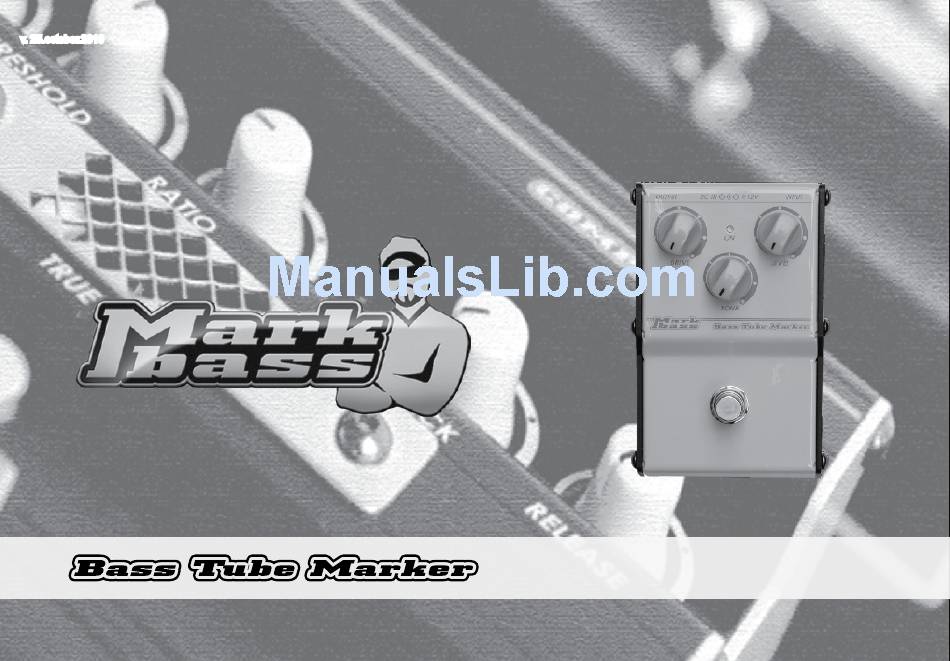

- Page 1 v. 25.october.2010 owner’s manual...
- Page 2 MORE INFORMATION For warranty and service information, please contact your local Markbass distributor (contact information available at www.markbass.it). For more technical information, please visit us at www.markbass.it and fill out the form on the Contact Us page. We hope you enjoy your effect pedal and use it to make great music! “The Lightning Flash with arrowhead symbol within an equilateral triangle, is intended to alert the...
- Page 3 Start by running a cable from your bass to the Bass Tube Marker input jack, and run another cable from the pedal output to your amp, setting all the pedal’s controls to the 12 o’clock position. Turn on the effect by stepping on the footswitch, and dial in the amount of distortion desired by adjusting the DRIVE knob. Adjust the tone as you like with the TONE knob, and use the LEVEL knob to set the desired volume level of the effect.
- Page 4 4. FUNCTION OVERVIEW DRIVE (1) – adjusts the amount of distortion. LEVEL (2) - controls the overall effect volume, so you can match the distortion level to the clean volume when switching the effect on and off. TONE (3) - controls amount of high frequency contour. ON/OFF SWITCH* (4) –...
- Page 5 Markbass distributor in your country for details. Please register this product online at www.markbass.it to establish the date of purchase. However, please note that you are required to retain a copy of your receipt as proof of purchase in order to receive warranty service.
- Page 6 If any problem occurs, please don’t hesitate to contact our support team at service@markbass.it. You can fill out this form and send a copy to Markbass (Parsek srl, Via Po 52, 66020 San Giovanni Teatino, CHIETI ITALY) or, even better, you can now register your warranty online in a matter of minutes, using our online registration form at www.markbass.it.
- Page 7 6. TECHNICAL SPECS 7. BLOCK DIAgRAM InPut IMPedAnce: 1.5 Mohm / 6 vpp outPut IMPedAnce: 100 ohm / 6 vpp drIve: +47dB (maximum gain) tone: from 300 Hz to 1.5 kHz LeveL outPut: 0 to Max Power requIreMents - dc InPut: +9/+12vdc or standard 9-volt battery dIMensIons: 81.8 x 54.8 x 124.5 mm...
- Page 8 Product specifications are subject to change without notice Via Po, 52 - 66020 San Giovanni Teatino (Ch) - Italy - Tel. +39 085 446 3755 - Fax +39 085 440 7764 www.markbass.it - info@markbass.it...
