3.7 LSU

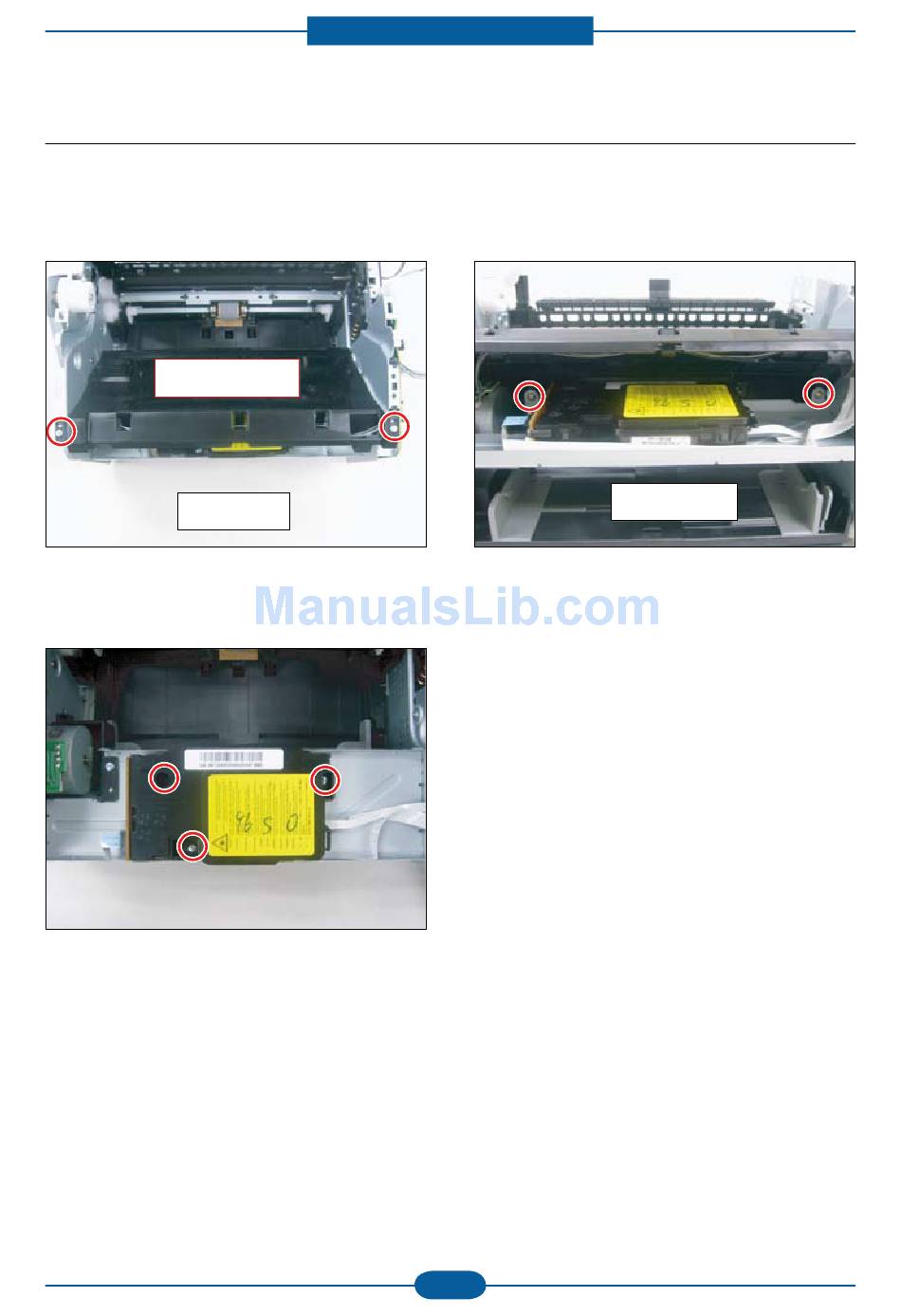

1. Remove the front/ top/ rear cover. (refer to 3.3 cover)
2. Remove 4 screw securing the COVER-LSU. Release the COVER-LSU.
COVER-LSU
COVER-LSU
COVER-LSU
Top view
Top view
Top view
3. Remove 3 screws. Release the LSU.
Service Manual
Disassembly and Reassembly
3-8
Front view
Front view
Front view
