4. Alignment and Troubleshooting

4.1 Alignment and Adjustments

This chapter describes the main functions for service, such as the product maintenance method, the test
output related to maintenance and repair, Jam removing method, and so on.
It includes the contents of manual.

4.1.1 Control Panel

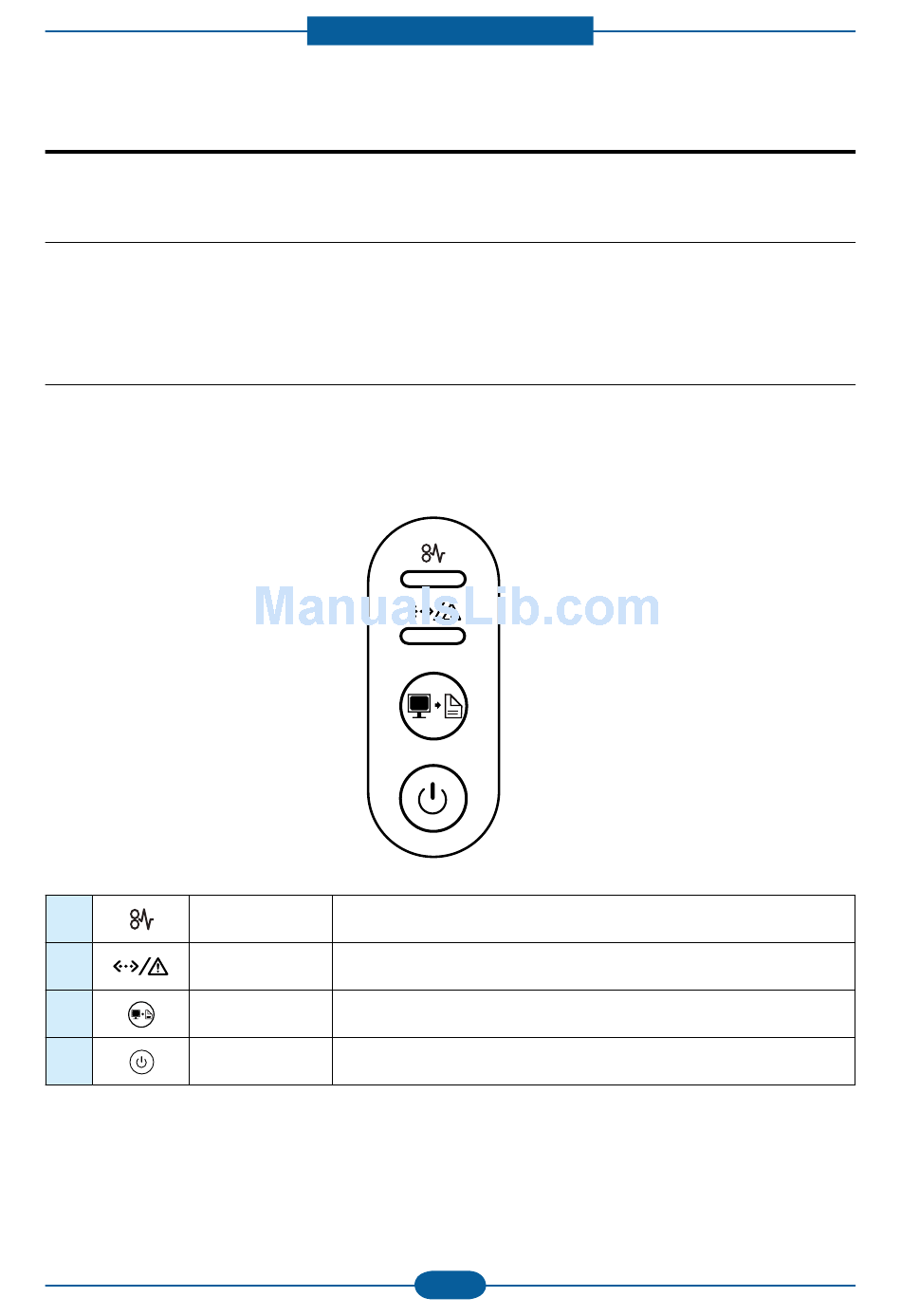

The ML-1660 series printers have 2 keys and 2 LEDs.
The 'User Interface' module handles the processing of the 'Key Press' and 'LED control' at different states of
the machine.
1 Jam
2 Online/ Error
3 Print Screen
4 Power
Service Manual
Alignment and Troubleshooting
Shows the status of jam occurance of your machine.
Shows the status of your machine.
Prints the displayed screen in the monitor.
You can turn the power on and off with this button.
