Summary of Contents for Fender Tone-Master
- Page 1 P/N 041224...

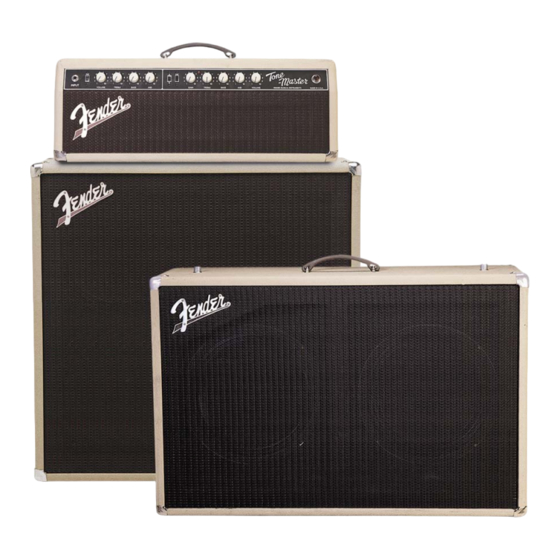

- Page 2 Like the other Fender custom amps, the Tone-Master is painstakingly built, one at a time, by a select group of craftsmen at the Fender electronics factory in Lake Oswego, Oregon.
- Page 3 TONE-MASTER CONTROL FUNCTIONS A. INPUTS -The guitar input for the Tone-Master. B. FAT - Adds a 3dB boost in gain to the A CHANNEL, mostly to the low and midrange frequen- cies. C. VOLUME A - Controls the loudness of CHANNEL A.
- Page 4 7, MED is best. For settings above 7, HI will produce full power and tone. N. PILOT JEWEL - When this lamp is illuminated the Tone-Master is receiving power. Should this bulb burn out, turn off the power, unscrew the red jewel and replace the lamp with a type T47...
- Page 5 Second, to enable the amplifier to better achieve the cranked-up sound at a lower volume. On the B CHANNEL, with a single Tone-Master enclosure, this switch should be set according to the setting of the B CHANNEL volume knob: For volume settings of 3.5 and lower, LO would be the appropriate setting.
- Page 6 (Eliminate any effects pedals and try another guitar cord.) Check under all tube covers to see that the tube filaments are glowing a dull orange. If, after checking all of the above, the system is not performing correctly, consult your Fender autho- rized service center.
- Page 7 WARNING: NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED PERSONNEL ONLY. WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE AMPLIFIER TO RAIN OR MOISTURE. A PRODUCT OF: FENDER AMP CUSTOM SHOP SCOTTSDALE, AZ 85258-3241...
