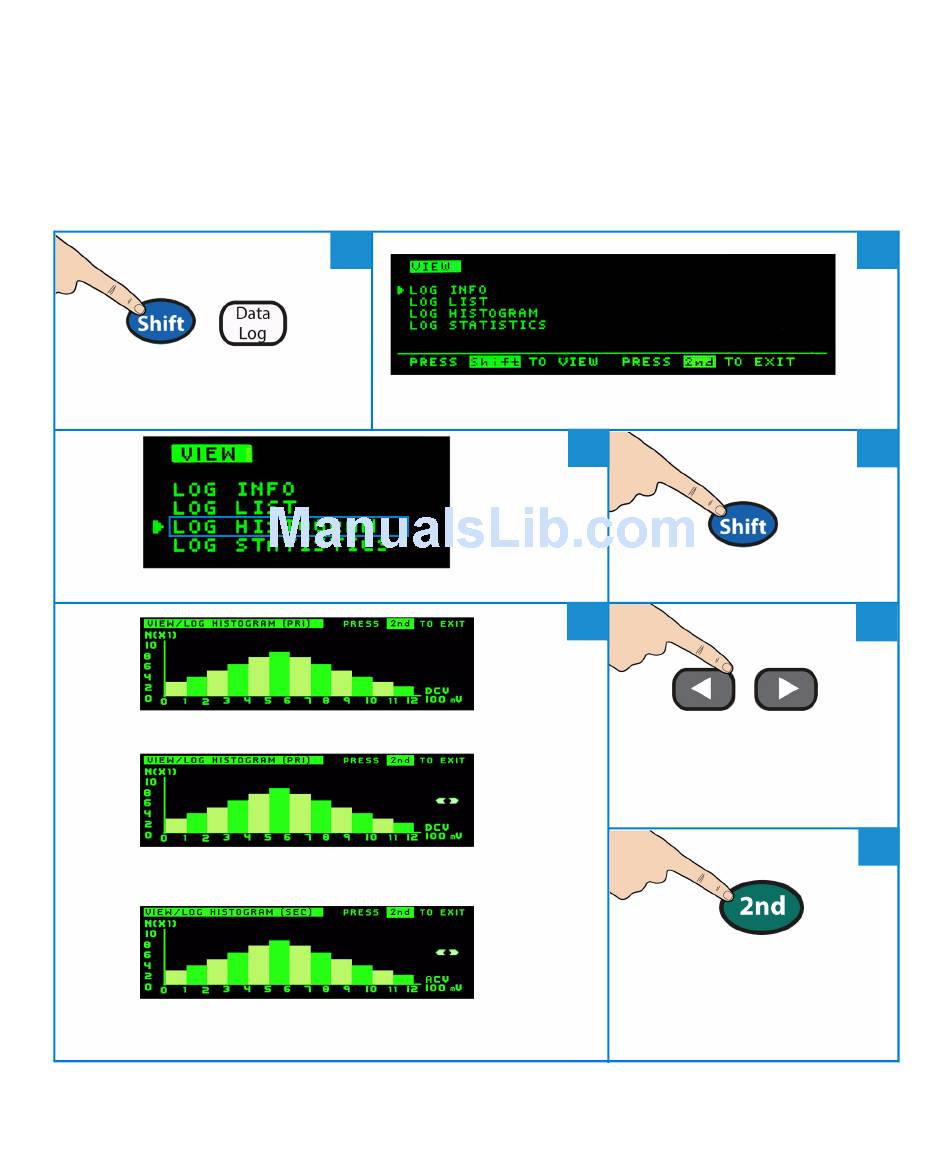

Viewing the log histogram

>
Press to display data log menu
Move cursor to the histogram menu
Typical histogram display without secondary measurement
function
Typical histogram display for primary measurement with
secondary measurement active
Typical histogram display for secondary measurement with
secondary measurement active
34450A User's Guide
To view the log histogram, follow the steps below:
1
Typical log view menu display
Functions and Features
3
Press to select
5
Press to switch between primary
or secondary data
Press to exit
2
2
4
6
7
71
