3 Measurement Tutorial
Ideal
Meter
86

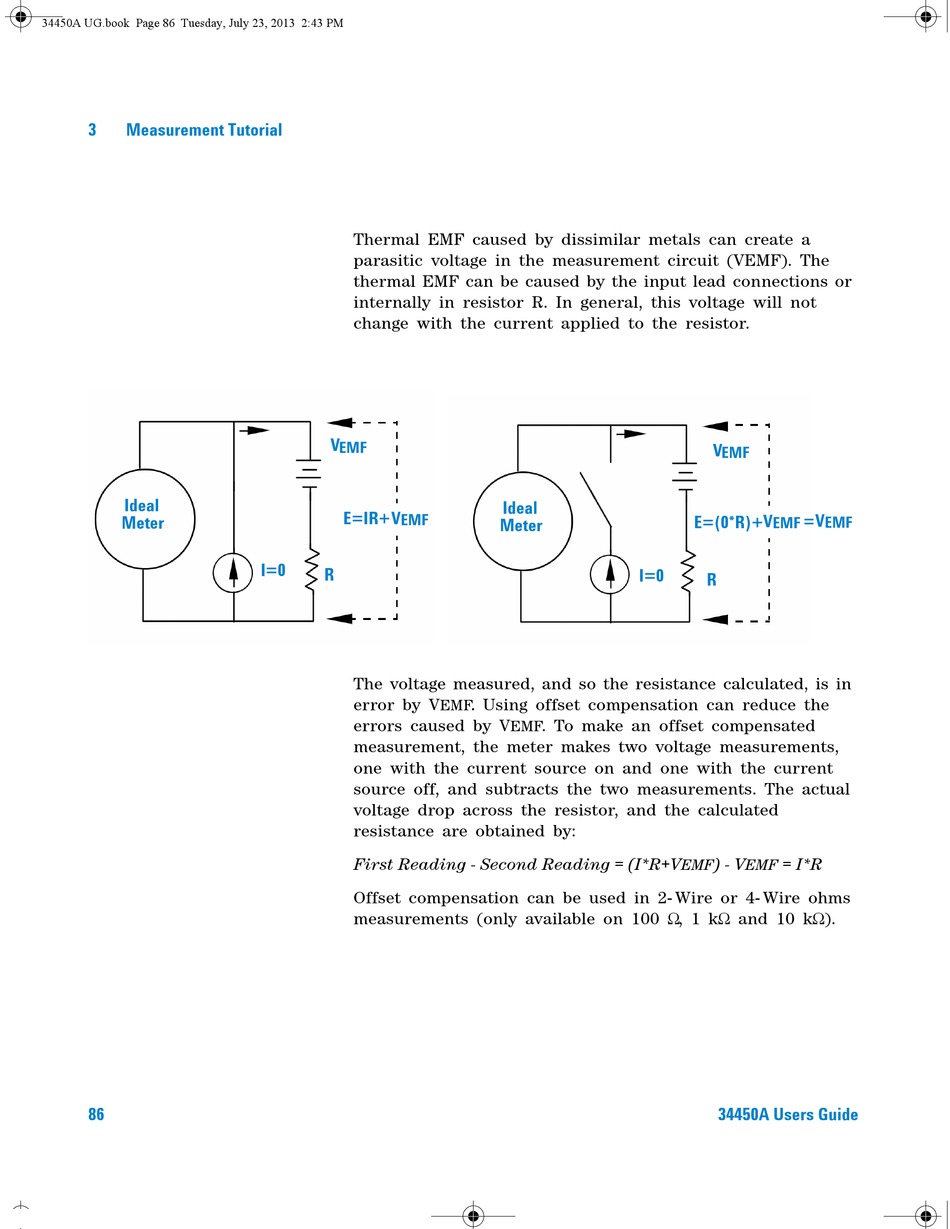

Thermal EMF caused by dissimilar metals can create a
parasitic voltage in the measurement circuit (VEMF). The
thermal EMF can be caused by the input lead connections or
internally in resistor R. In general, this voltage will not
change with the current applied to the resistor.
V
EMF
E=IR+V
EMF
I=0
R
The voltage measured, and so the resistance calculated, is in
error by V
errors caused by V
measurement, the meter makes two voltage measurements,
one with the current source on and one with the current
source off, and subtracts the two measurements. The actual
voltage drop across the resistor, and the calculated
resistance are obtained by:
First Reading - Second Reading = (I*R+V
Offset compensation can be used in 2- Wire or 4- Wire ohms
measurements (only available on 100 W, 1 kW and 10 kW).
Ideal
Meter
Using offset compensation can reduce the
EMF.
. To make an offset compensated
EMF
V
EMF
V
E=(0*R)+
EMF
I=0
R
) - V = I*R
EMF EMF
34450A Users Guide
V
=
EMF
