Checking diodes

34450A User's Guide
• Measurement Method: Uses 0.5 mA ± 0.2% constant current source
• Response Time: 190 samples/ second with audible tone
• Input Protection: 1000 V (HI terminal)
1
I
Forward
Bias

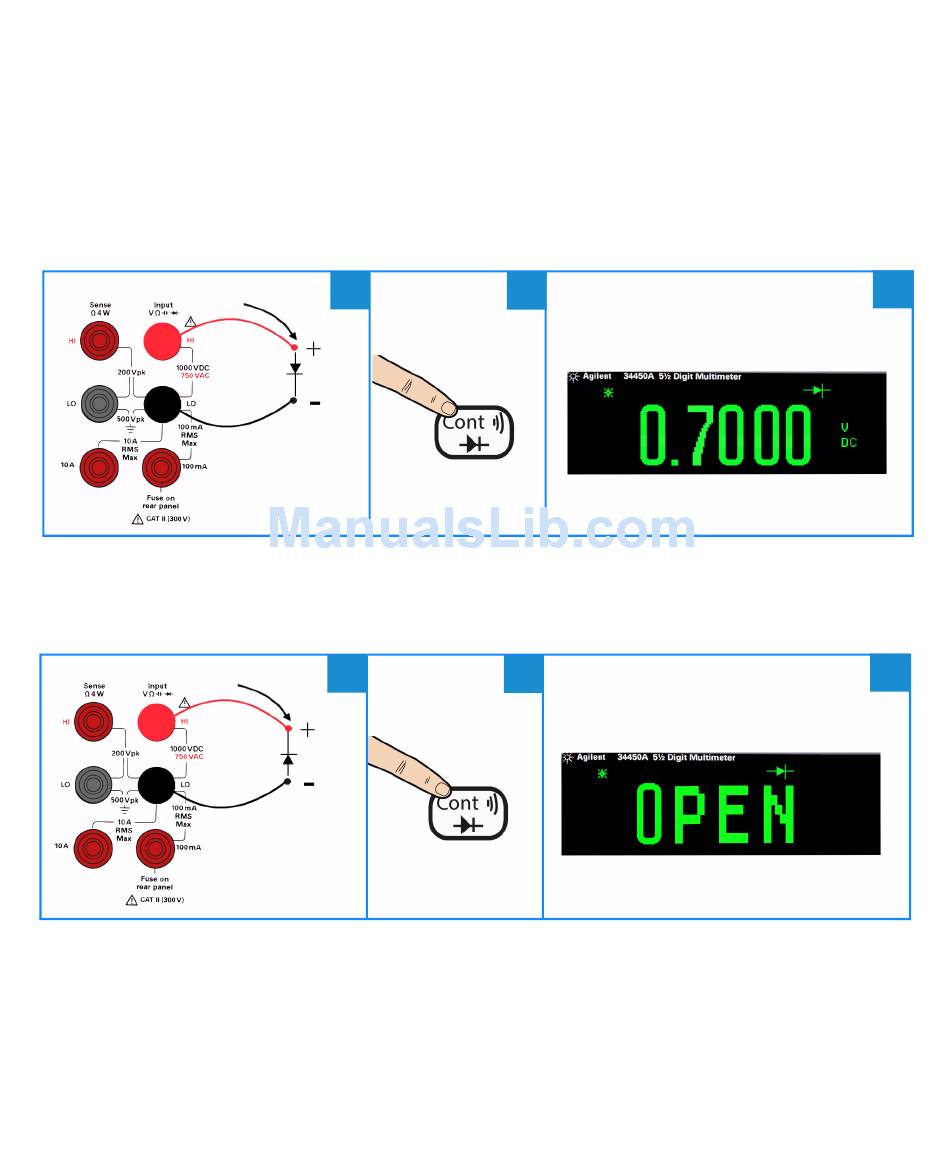

Figure 1-15 Forward-biased diode terminal connection and display

1
I
Reverse
Bias
Figure 1-16 Reverse-biased diode terminal connection and display
2
Typical Forward-Biased Diode
Measurement Display
Press Twice
2
Typical Reverse-Biased Diode
Measurement Display
Press Twice
Getting Started Tutorial 1
3
3
