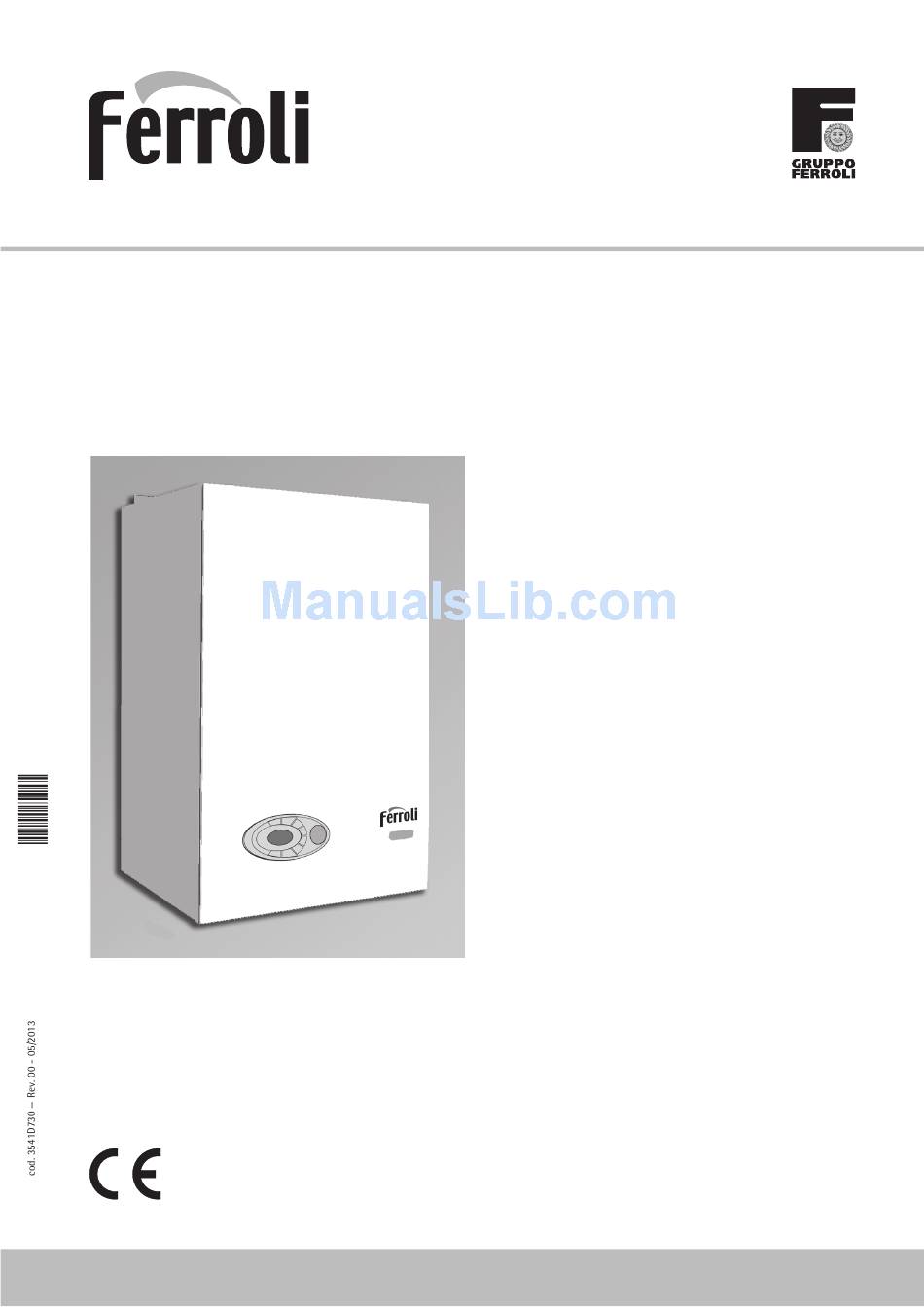

- Page 1 T-ONE INSTRUCTIONS FOR USE, INSTALLATION AND MAINTENANCE “T-ONE 25 C HE” GC N° 47-267-59 “T-ONE 30 C HE” GC N° 47-267-60...
- Page 2 “This record must be completed and left with the end user”. Ferroli is a member of the Benchmark initiative and fully supports the aims of the programme. Benchmark has been introduced to improve the standards of installation and commissioning of central heating systems in the UK and to encourage the regular servicing of all central heating systems to ensure safety and efficiency.
-
Page 3: Table Of Contents
T-ONE C HE 1 Instructions ..........................4 1.1 Introduction............................. 4 1.2 Control panel ............................4 1.3 Turning ON and OFF..........................5 1.4 Adjustments............................7 2 Installation ..........................9 2.1 General Instructions ..........................9 2.2 Place of installation ..........................10 2.3 Plumbing connections .......................... 10 2.4 Connection to the gas system ...................... -
Page 4: Instructions
1. Instructions 1.1 Introduction Thank you for choosing the T-ONE C HE, a FERROLI wall-mounted boiler the latest generation appliance, featuring advanced design and cutting-edge technology. T-ONE C HE is a high-efficiency condensing pre-mix appliance for central heating and hot water production, running on natural gas or LPG, generating extremely low emissions. -
Page 5: Turning On And Off
T-ONE C HE Indication during boiler operation Central Heating mode The Central Heating heat demand (generated by the OpenTherm Remote Control, the Room Thermostat or the Clock) is indicated by the flashing of the Hot Air symbol over the radiator (part. 13 and 14 - fig. 1). The display indicates the actual Central Heating water temperature (part. - Page 6 T-ONE C HE Ignition Ensure the power is on to the appliance. fig. 5 - Ignition fig. 6 - Air purge • For the firsts 300 seconds, the display shows FH that identifies the Air purge function. • During the first 5 seconds, the display shows the software version of the pcb.
-
Page 7: Adjustments
T-ONE C HE 1.4 Adjustments Heating temperature setting To set the system flow temperature, use the CH push buttons (part. 3 and 4 - fig. 1). It can be varied from a minimum of 20°C to a maximum of 80°C. - Page 8 T-ONE C HE O.T.C. setting To enter the OTC mode, press OTC button (part. 6 - fig. 1) for 5 seconds. The display shows CU flashing (fig. 11); to set Curve, use the DHW push buttons (part. 1 and 2 - fig. 1). It can be varied from 1 to 10, in accordance with the chart (fig.
-
Page 9: Installation
T-ONE C HE 2. Installation 2.1 General Instructions This unit must only be used for its intended purpose. This unit is designed to heat water to a temperature below boiling point and must be connected to a heating system and/or a water supply system for domestic use, com- patible with its performance, characteristics and heating capacity. -
Page 10: Place Of Installation
T-ONE C HE 2.2 Place of installation The combustion circuit is sealed with respect to the place of installation and therefore the unit can be in- stalled in any room. However, the place of installation must be sufficiently ventilated to prevent the creation of dangerous conditions in case of even slight gas leaks. - Page 11 T-ONE C HE Shutoff valve kit The shutoff valves supplied (see fig. 16) must be installed between the boiler and heating system to allow the boiler to be isolated from the system if necessary. Delivery cock 3/4” Domestic hot water outlet connection 1/2”...
-
Page 12: Connection To The Gas System
T-ONE C HE Water treatment If treatment of the water is necessary, Ferroli recommends the exclusive use of specific products such as Fernox or Sentinel to be applied in compliance with the producer's instructions. For more information, please contact: Fernox Manufacturing Co. LTD. - Page 13 T-ONE C HE Accessing electrical terminal block The electrical connections terminal block can be accessed after removing the casing. The layout of the terminals for the various connections is given in the wiring diagram in fig. 39. fig. 18 - Electrical terminal block Room thermostat (optional) CAUTION: THE ROOM THERMOSTAT MUST HAVE VOLTAGE FREE SWITCH CONTACTS.
-
Page 14: Flue System
The current standards and local regulations must be observed. Only a Ferroli flue system (with respective accessories) must be used with this unit, as required by BS 5440 and CE standards. - Page 15 T-ONE C HE Other coaxial connections fig. 20 - Examples of connection with coaxial pipes ( = Air / = Fumes) For coaxial connection, fit the unit with one of the following starting accessories. For the wall hole dimensions, refer to section 4.1 Dimensions and connections.
- Page 16 T-ONE C HE Connection with separate pipes fig. 22 - Examples of connection with separate pipes ( = Air / = Fumes) For the connection of separate ducts, fit the unit with the following starting accessory: fig. 23 - Starting accessory for separate ducts...
- Page 17 T-ONE C HE Position of terminals fig. 24 Minimum dimensions of fume exhaust terminals Directly under an opening, air inlet, openable window, etc. 300 mm Above an opening, air inlet, openable window, etc. 300 mm Horizontally to an opening, air inlet, openable window, etc.
-
Page 18: Condensate Drain Connection
Connection to multiple flues or single flues with natural draught To connect the T-ONE C HE boiler to a multiple flue or a single flue with natural draught, the flue or chimney must be expressly designed by professionally qualified technical personnel in conformity with the current standards and regulations. - Page 19 T-ONE C HE Condensate drain If possible, the condensate should be conveyed inside the internal drainage system or pipe. For that purpose, use a supplied with pipe of at least 22 mm diameter and a trap with flexible connection the unit to facilitate connection of the condensate drain pipe.
-
Page 20: Service And Maintenance
All adjustment, conversion, startup and maintenance operations described below must only be carried out by Qualified Per- sonnel (meeting the professional technical requirements prescribed by current regulations). FERROLI declines any liability for damage and/or injury caused by unqualified and unauthorised persons tampering with the unit. -
Page 21: Start-Up
T-ONE C HE 3.2 Start-up Checks to be made at first lighting, and after all maintenance operations that involved disconnection from the systems or an operation on safety devices or parts of the boiler: Before lighting the boiler • Open any on-off valves between the boiler and the systems. -
Page 22: Commisioning Instructions
T-ONE C HE 3.3 Commisioning instructions General PLEASE NOTE: The combustion for this appliance has been checked, adjusted and preset at the factory for operation on the gas type defined on the appliance data plate. Having checked: • That the boiler has been installed in accordance with these instructions, •... -
Page 23: Routine Servicing, Maintenance & Repair
T-ONE C HE 3.4 Routine servicing, maintenance & repair General PLEASE NOTE: During routine servicing, and after any maintenance or change of part of the combustion circuit, we recommend that the following is checked: • The integrity of the flue system and the flue seals;... -
Page 24: Combustion Check
T-ONE C HE Opening the casing To open the boiler casing, you need to follow the sequence given below and the instructions of fig. 31. 1. Using a screwdriver, partially unscrew the 2 screws “A” (fig. 30) 2. Lift the panel “B”... - Page 25 T-ONE C HE Setting the Air/Gas Ratio valve There are two adjustments possible on the air/gas ratio valve, the throttle setting at maximum rate and the offset setting at minimum rate. If either setting is adjusted the combustion values must be rechecked at both rates.
-
Page 26: Troubleshooting
T-ONE C HE 3.5 Troubleshooting Diagnostics The boiler is equipped with an advanced self-diagnosis system. In case of a boiler fault, the display will flash together with the fault symbol (detail 11 - fig. 1) indicating the fault code. Certain faults cause permanent boiler shutdowns (marked with the letter “A”): to restore operation, press the RESET button (detail 6 - fig. -
Page 27: Technical Data And Characteristics
T-ONE C HE 4. Technical data and characteristics 4.1 Dimensions and connections fig. 34 - Dimensions and connections Heating system delivery Domestic hot water outlet Gas inlet Cold water inlet Heating system return cod. 3541D730 - Rev. 00 - 05/2013... -
Page 28: General View And Main Components
T-ONE C HE 4.2 General view and main components fig. 35 - General view Gas inlet Gas valve Domestic hot water outlet Expansion tank Cold water inlet Ignition/ionization electrode System delivery 114 Water pressure switch System return 136 Flow meter... -
Page 29: Water Circuit
T-ONE C HE 4.3 Water circuit fig. 36 - Water circuit Domestic hot water outlet 136 Flow meter Cold water inlet 154 Condensate outlet pipe System delivery 186 Return sensor Condensate Trap System return Bypass cock Safety valve Heating circulating pump... -
Page 30: Technical Data Table
T-ONE C HE 4.4 Technical data table Data Unit T-ONE 25C HE T-ONE 30C HE CH Max Heat Input 25.0 29.5 CH Min Heat Input CH Max. Heat Output (80/60°C) 24.5 28.9 CH Min Heat Output (80/60°C) CH Max. Heat Output (50/30°C) 26.5... -
Page 31: Diagrams
T-ONE C HE 4.5 Diagrams Head available for the system (T-ONE 25C HE) fig. 37 - Pressure loss Boiler pressure losses Circulating pump min. speed Circulating pump max. speed Head available for the system (T-ONE 30C HE) fig. 38 Boiler pressure losses Circulating pump min. -
Page 32: Wiring Diagram
T-ONE C HE 4.6 Wiring diagram fig. 39 - Wiring diagram Important: Before connecting the room thermostat or the remote timer control, remove the jumper on the terminal block. 114 Water pressure switch Heating circulating pump 136 Flow meter DHW temperature sensor... - Page 34 Failure to install and commission according to the manufacturer’s instructions and complete this Benchmark Commissioning Checklist will invalidate the warranty. This does not affect the customer’s statutory rights. If yes, and if required by the manufacturer, has a water scale reducer been fitted? CONDENSING BOILERS ONLY The condensate drain has been installed in accordance with the manufacturer’s instructions and/or BS5546/BS6798 If the condensate pipe terminates externally has the pipe diameter been increased and weatherproof insulation fitted?
-
Page 35: Service Record
Service Record It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. Service Provider Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions. - Page 36 Before contacting Ferroli please have available the completed BENCHMARK document (located in the back of this manual), boiler serial number and model detail. For Technical assistance during the installation, call our Technical Helpline on 0843 479 0479. You will be required to provide your Gas Safe Register Number.
