Summary of Contents for Ferroli ECONCEPT TECH 25 A

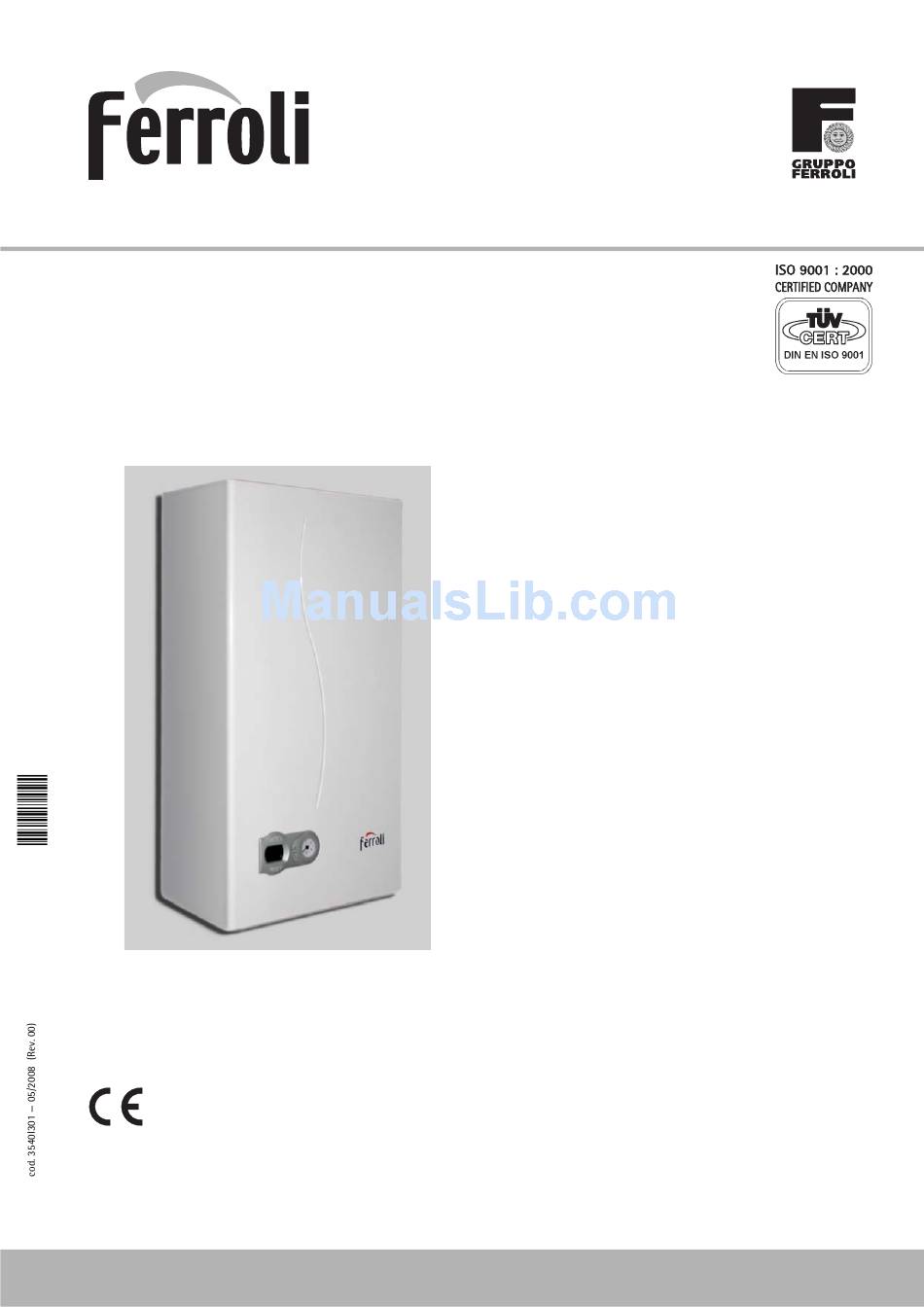

  • Page 1 ECONCEPT TECH 25 A INSTRUCTIONS FOR USE, INSTALLATION AND MAINTENANCE...
  • Page 2: Declaration Of Conformity

    ECONCEPT TECH 25 A • Carefully read the warnings in this instruction book- • In case the unit breaks down and/or functions poorly, let since they provide important information on safe deactivate it, do not make any attempt to repair it or installation, use and maintenance.
  • Page 3: Table Of Contents

    ECONCEPT TECH 25 A 1 Operating instructions ......................4 1.1 Introduction............................. 4 1.2 Control panel ............................4 1.3 Turning on and off ..........................6 1.4 Adjustments............................7 2 Installation ..........................11 2.1 General Instructions ..........................11 2.2 Place of installation ..........................11 2.3 Plumbing connections ..........................
  • Page 4: Operating Instructions

    ECONCEPT TECH 25 A is a high-efficiency sealed chamber premix condensing heat generator for heating and do- mestic hot water production (with optional external hot water tank) with extremely low emissions, running on natural gas or LPG and equipped with a microprocessor control system.
  • Page 5 ECONCEPT TECH 25 A Indication during operation Heating A heating demand (generated by the Room Thermostat or Remote Timer Control) is indicated by flashing of the hot air above the radiator (details 13 and 14 - fig. 1). The display (detail 11 - fig. 1) shows the actual heating delivery temperature and during DHW standby time, the mes- sage “d2”.
  • Page 6: Turning On And Off

    ECONCEPT TECH 25 A 1.3 Turning on and off Boiler lighting Switch on the power to the unit. comfort reset fig. 4 - Boiler lighting • For the following 120 seconds the display will show FH which identifies the heating system air venting cycle.
  • Page 7: Adjustments

    ECONCEPT TECH 25 A The antifreeze system does not work when the power and/or gas to the unit are turned off. To avoid damage caused by freezing during long idle periods in winter, it is advisable to drain all water from the boiler, DHW circuit and system;...
  • Page 8 ECONCEPT TECH 25 A Room temperature adjustment (with optional room thermostat) Using the room thermostat, set the temperature desired in the rooms. If the room thermostat is not installed the boiler will keep the heating system at its setpoint temperature.
  • Page 9 ECONCEPT TECH 25 A Press the button (detail 6 - fig. 1) again for 5 seconds to exit the “Sliding Temperature” menu. If the room temperature is lower than the required value, it is advisable to set a higher order curve and vice versa. Pro- ceed by increasing or decreasing in steps of one and check the result in the room.
  • Page 10 ECONCEPT TECH 25 A Water system pressure adjustment The filling pressure with system cold, read on the boiler water gauge, must be approx. 1.0 bar. If the system pressure falls to values below minimum, the boiler card will activate fault F37 (fig. 14).
  • Page 11: Installation

    ECONCEPT TECH 25 A 2. Installation 2.1 General Instructions BOILER INSTALLATION MUST ONLY BE PERFORMED BY QUALIFIED PERSONNEL, IN ACCORDANCE WITH ALL THE INSTRUCTIONS GIVEN IN THIS TECHNICAL MANUAL, THE PROVISIONS OF CURRENT LAW, THE PRE- SCRIPTIONS OF NATIONAL STANDARDS AND LOCAL REGULATIONS AND THE RULES OF PROPER WORK- MANSHIP 2.2 Place of installation...
  • Page 12: Connection Kits

    ECONCEPT TECH 25 A Connection kits The connection kits shown in fig. 16 are supplied by request. M N P fig. 16 - Union connection kit A = 3/4” fitting assembly for Ø18 pipe M = O-ring B = 1/2” gas cock...
  • Page 13: Gas Connection

    ECONCEPT TECH 25 A Connection to a storage tank for domestic hot water production The unit's electronic board is arranged for managing an external storage tank for domestic hot water production. Make the plumbing connections according to the diagram of fig. 17. Make the electrical connections as shown on the wiring diagram in sec.
  • Page 14: Electrical Connections

    ECONCEPT TECH 25 A 2.5 Electrical connections Connection to the electrical grid The unit's electrical safety is only guaranteed when correctly connected to an efficient earthing system exe- cuted according to current safety standards. Have the efficiency and suitability of the earthing system checked by professionally qualified personnel.
  • Page 15: Fume Ducts

    ECONCEPT TECH 25 A Access to the electrical terminal board Follow the instructions given in fig. 19 to access the electrical connection terminal board. The layout of the terminals for the various connections is given in the wiring diagram in fig. 34.
  • Page 16 ECONCEPT TECH 25 A Connection with coaxial pipes fig. 21 - Examples of connection with coaxial pipes ( = Air / = Fumes) For coaxial connection, fit the unit with one of the following starting accessories. For the wall hole dimensions, refer to sec.
  • Page 17 ECONCEPT TECH 25 A Connection with separate pipes fig. 23 - Examples of connection with separate pipes ( = Air / = Fumes) For connection of separate ducts, fit the unit with starting accessory: 041003X0 fig. 24 - Starting accessory for separate ducts...
  • Page 18 = Fumes) If you are then going to connect the ECONCEPT TECH 25 A boiler to a collective flue or a single flue with natural draught, the flue must be expressly designed by professionally qualified technical personnel in conformity with the cur- rent standards and be suitable for airtight chamber units equipped with a fan.
  • Page 19: Condensate Drain Connection

    ECONCEPT TECH 25 A 2.7 Condensate drain connection The boiler is equipped with a trap to drain condensate. Fit the inspection connection A and the flexible tube B, pressing it in about 3 cm and securing it with a clamp. Fill the trap with approx. 0.5 l. of water and connect the flexible tube to the elimination system.
  • Page 20: Service And Maintenance

    (meeting the professional technical requirements prescribed by current regulations) such as those of the Local After- Sales Technical Service. FERROLI declines any liability for damage and/or injury caused by unqualified and unauthorised people tampering with the unit. 3.1 Adjustments...
  • Page 21 ECONCEPT TECH 25 A Activating TEST mode Press the heating buttons (details 3 and 4 - ) at the same time for 5fig. 1seconds to activate TEST mode. The boiler lights at the maximum heating power set as described in the following section.
  • Page 22: Start-Up

    ECONCEPT TECH 25 A 3.2 Start-up Checks to be made at first lighting, and after all maintenance operations that involved disconnection from the systems or an operation on safety devices or parts of the boiler: Before lighting the boiler •...
  • Page 23: Combustion Analysis

    ECONCEPT TECH 25 A Opening the casing To open the boiler casing (fig. 29): 1. Undo the screws (1) 2. Open, turning the casing (2) 3. Lift and remove the casing (3) m fo m fo fig. 29 - Opening the casing Combustion analysis It is possible to analyse the combustion through the air sampling (detail 2) and fume sampling (detail 1) points shown in fig.
  • Page 24: Troubleshooting

    ECONCEPT TECH 25 A 3.4 Troubleshooting Diagnostics In case of operation faults or problems, the display flashes and the fault identification code appears. There are faults that cause permanent shutdown (marked with the letter “A”): to restore operation just press the RESET button (detail 8 - fig.
  • Page 25 ECONCEPT TECH 25 A Fault Fault Possible cause Cure code Sensor damaged Fume sensor fault Wiring shorted Check the wiring or replace the sensor Wiring disconnected Sensor damaged Delivery sensor 2 fault Wiring shorted Check the wiring or replace the sensor...
  • Page 26: Technical Data And Characteristics

    ECONCEPT TECH 25 A 4. Technical data and characteristics 4.1 Dimensions and connections 56 48 fig. 31 - Dimensions and connections Heating system delivery Gas inlet Heating system return Safety valve drain cod. 3540I301 - 05/2008 (Rev. 00)
  • Page 27: General View And Main Components

    ECONCEPT TECH 25 A 4.2 General view and main components fig. 32 - General view Airtight chamber Detection electrode Gas inlet Diverter valve System delivery 114 Water pressure switch System return 161 Condensing heat exchanger Safety valve 186 Return sensor...
  • Page 28: Plumbing Circuit

    ECONCEPT TECH 25 A 4.3 Plumbing circuit fig. 33 - Plumbing circuit Gas inlet 114 Water pressure switch System delivery 154 Condensate outlet System return 161 Condensing heat exchanger Safety valve 186 Return sensor 193 Trap Heating circulator 196 Condensate tray...
  • Page 29: Technical Data Table

    ECONCEPT TECH 25 A 4.4 Technical data table The column on the right gives the abbreviation used on the dataplate. Data Unit Value Max. heating capacity 25.2 Min. heating capacity Max. Heat Output in heating. (80/60°C) 24.6 Min. Heat Output in heating. (80/60°C) Max.
  • Page 30: Diagrams

    ECONCEPT TECH 25 A 4.5 Diagrams Loss of head/Head of circulators H [m H Q [l/h] 1.000 1.500 2.000 Boiler losses of head 1 - 2 - 3 Circulator speed cod. 3540I301 - 05/2008 (Rev. 00)
  • Page 31: Wiring Diagram

    ECONCEPT TECH 25 A 4.6 Wiring diagram 10kOhm 1.8kOhm 138 256 1 2 3 4 5 6 230V 50Hz DBM04A fig. 34 - Wiring diagram Important: Before connecting the room thermostat or the remote timer control, remove the jumper on the terminal block.
