Installation Instructions

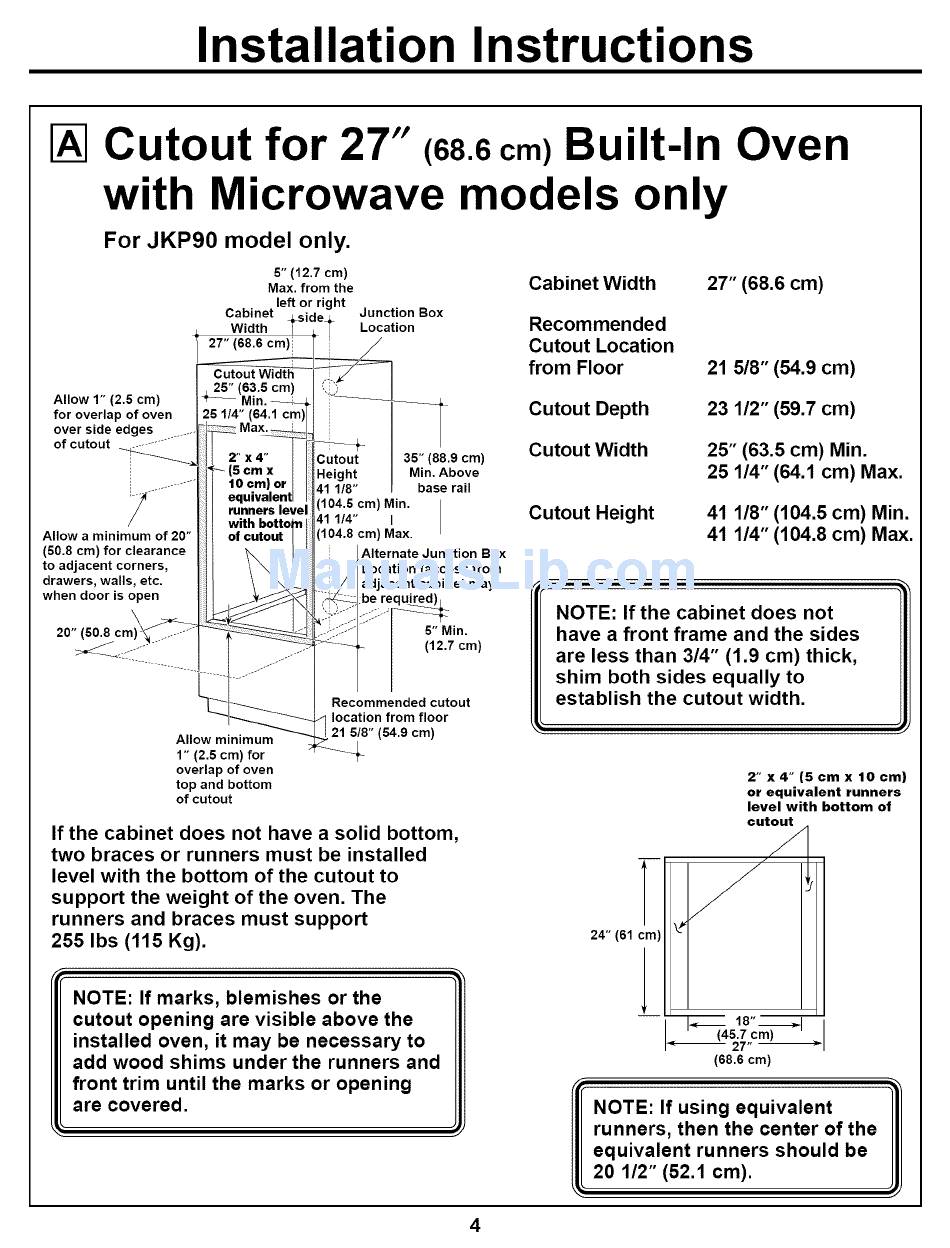

IA1 Cutout for 27" (68.6
cm)
Built-In Oven
with Microwave models only
For JKP90 model only.
5" (12.7 cm)
Max. f romthe Cabinet Width 27" (68.6 cm)
left or right
Cabinet Junction Box
Width Location
Recommended
Cutout Location
from Floor 21 5/8" (54.9 cm)
Allow 1" (2,5 cm)
for overlap of oven
over side edges ....
of cutout ............
Allow a minimum of 20"
(50.8 cm) for clearance
to adjacent corners,
drawers, walls, etc.
when door is open
\
20" (80.8 cm)
Cutout 35" (88.9 cm)
Height Min, Above
41 1/8" base rail
eq (104,5 cm) Min.
runners level
41 1/4" I
(104.8 cm) Max.
Alternate Junction Box
Location (access from
adjacent cabinet may
:be
6" Min.
(12.7 cm)
Allow minimum
1" (2.5 cm) for
overlap of oven
top and bottom
of cutout
Recommended cutout
location from floor
6/8" (54.9 cm)
4-
If the cabinet does not have a solid bottom,
two braces or runners must be installed
level with the bottom of the cutout to
support the weight of the oven. The
runners and braces must support
255 Ibs (115 Kg).
NOTE: If marks, blemishes or the
cutout opening are visible above the
installed oven, it may be necessary to
add wood shims under the runners and
front trim until the marks or opening
are covered.
Cutout Depth
Cutout Width
Cutout Height
23 1/2" (59.7 cm)
25" (63.5 cm) Min.
25 1/4" (64.1 cm) Max.
41 1/8" (104.5 cm) Min.
41 1/4" (104.8 cm) Max.
NOTE: If the cabinet does not
have a front frame and the sides
are less than 3/4" (1.9 cm) thick,
shim both sides equally to
establish the cutout width.
24" (61 cm)
2"x4"(Scmx 10cm)
or equivalent runners
level with bottom of
cutout
-- _ 18",--_1
(45.7 cm)
27"
(68.6 cm)
NOTE: If using equivalent
runners, then the center of the
equivalent runners should be
20 1/2" (52,1 cm),
= =
4
