GE Profile PT970BM Dimensions And Installation Information

CABINET
WIDTH
30''
PT970BM/CM/WM
CUTOUT
GE Profile WIDTH 30" Built-In Double Microwave/Convection Oven
™
28-1/2'' MIN.
28-5/8'' MAX.

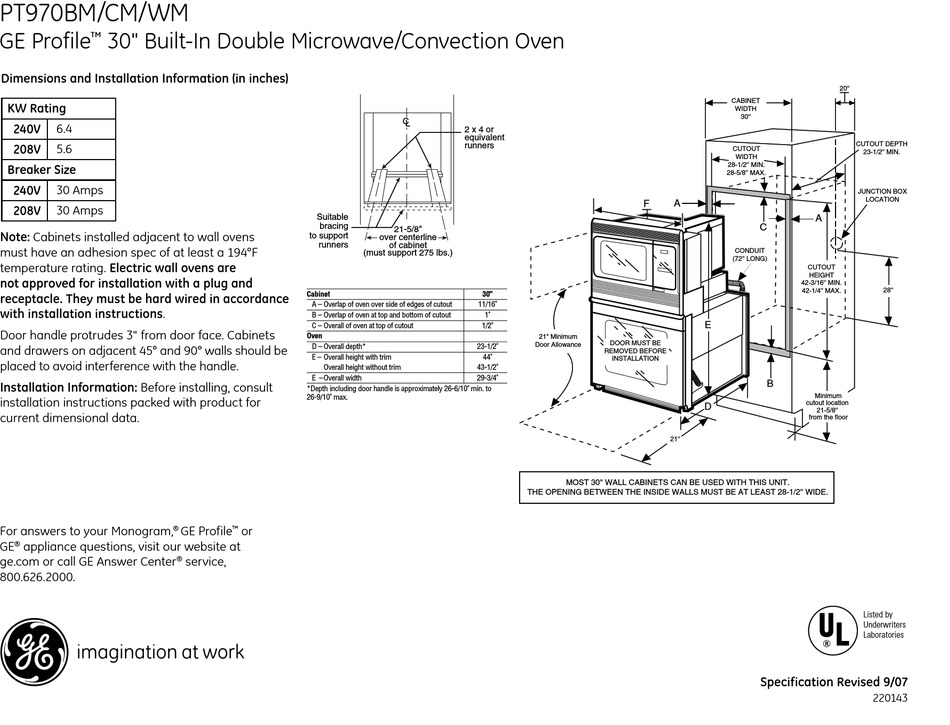

Dimensions and Installation Information (in inches)
A
F
A
KW Rating C
240V
6.4
CONDUIT
(72'' LONG)
208V 5.6
CUTOUT
HEIGHT
Breaker Size 42-3/16'' MIN.
42-1/4'' MAX.
240V 30 Amps
208V 30 Amps
E
Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a 194°F
temperature rating. Electric wall ovens are
B
not approved for installation with a plug and
Minimum
cutout location
receptacle. They must be hard wired in accordance
D
from the floor
with installation instructions.
Door handle protrudes 3" from door face. Cabinets 21''
and drawers on adjacent 45° and 90° walls should be
placed to avoid interference with the handle.
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
For answers to your Monogram,
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
20''
CUTOUT DEPTH
23-1/2'' MIN.
JUNCTION BOX
LOCATION
28''
Suitable
bracing
to support
runners
Cabinet
21-5/8''
A – Overlap of oven over side of edges of cutout
B – Overlap of oven at top and bottom of cutout
C – Overall of oven at top of cutout
Oven
D – Overall depth*
E – Overall height with trim
Overall height without trim
E – Overall width
*Depth including door handle is approximately 26-6/10" min. to
26-9/10" max.
GE Profile or
® ™
service,
®
C L
2 x 4 or
equivalent
runners
21-5/8"
over centerline
of cabinet
(must support 275 lbs.)
30"
11/16"
1"
1/2"
21" Minimum
Door Allowance
23-1/2"
44"
43-1/2"
29-3/4"
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
CABINET
WIDTH
30''
CUTOUT
WIDTH
28-1/2'' MIN.
28-5/8'' MAX.
F A
CONDUIT
(72'' LONG)
E
DOOR MUST BE
REMOVED BEFORE
INSTALLATION
D
21''
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
20''
CUTOUT DEPTH
23-1/2'' MIN.
JUNCTION BOX
LOCATION
A
C
CUTOUT
HEIGHT
42-3/16'' MIN.
28''
42-1/4'' MAX.
B
Minimum
cutout location
21-5/8''
from the floor
Listed by
Underwriters
Laboratories
Specification Revised 9/07
