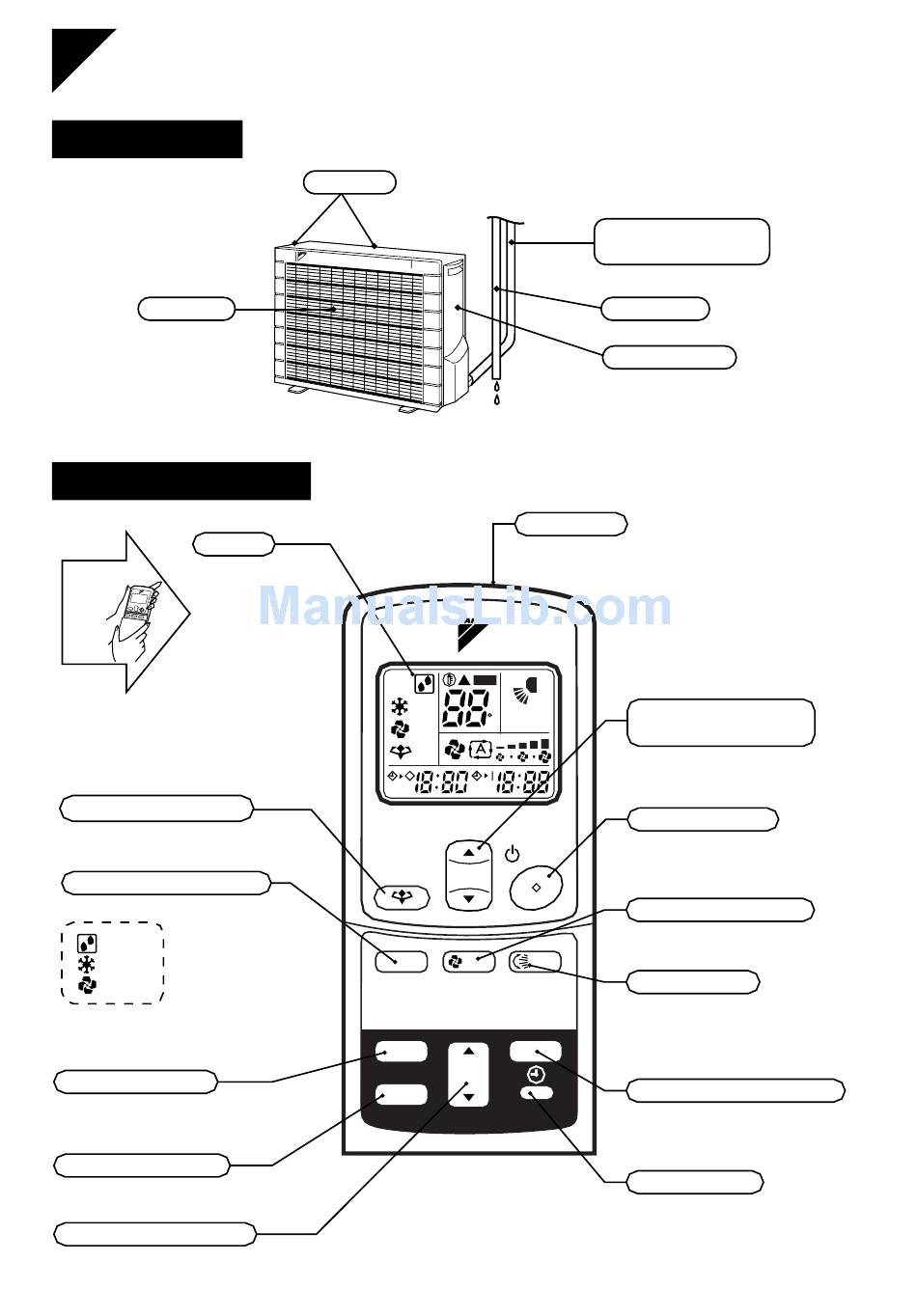

Names of Parts

Outdoor unit

Air outlet
Remote controller
Display
It displays the
Open
current settings.
the
(In this illustration,
cover.
each section is
shown with all its
displays ON for the
purpose of
explanation. Some
models may not
show all its
indications.)
POWERFUL button
(See page 10.)
MODE selector button
It selects the operation mode.
: DRY
: COOL
: FAN
ON TIMER button
(See page 11.)
OFF TIMER button
(See page 11.)
TIMER Setting button
It changes the time setting
6
Air inlet
(Back and side)
ON
C
AMPM AMPM
POWERFUL TEMP
MODE FAN
ON
OFF
TIMER
<
ARC423A18
Refrigerant piping
and inter-unit cable
Drain hose
Earth terminal
It is inside of this part.
Appearance of the outdoor unit may differ
from some models.
Transmitter
It sends signals to the indoor unit.
TEMPERATURE
adjustment buttons
It changes the temperature
setting.
ON/OFF button
Press it once to start operation.
ON/OFF
To stop it, press it once again.
FAN setting button
It selects the air flow rate setting.
SWING
SWING button
(See page 9.)
CANCEL
TIMER CANCEL button
It cancels the timer setting.
CLOCK button
>
(See page 8.)
