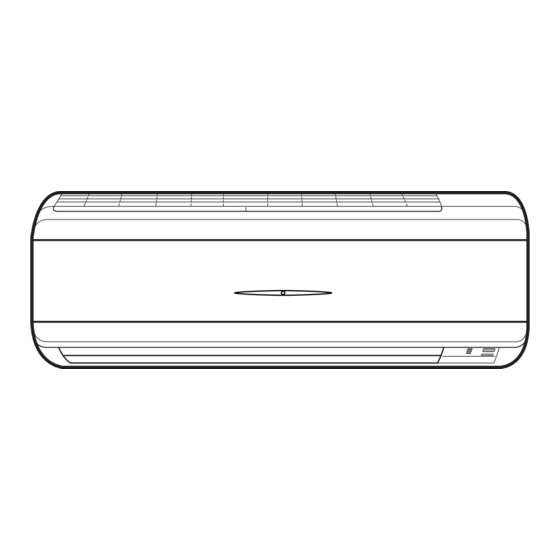

- Page 1 DAIKIN ROOM AIR CONDITIONER MODELS FT13BV1LS Operation Manual FT18BV1LS FT24BV1LS English...
-
Page 2: Table Of Contents
CONTENTS READ BEFORE OPERATION Safety precautions ......... 2 Names of parts..........4 Preparation Before Operation ......7 OPERATION DRY · COOL · FAN Operation ..... 10 Adjusting the Air Flow Direction ....12 POWERFUL Operation ........ 14 TIMER Operation ......... 15 CARE Care and Cleaning ........ -
Page 3: Safety Precautions
• Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work will cause electric shocks, fire etc. For repairs and reinstallation, consult your Daikin dealer for advice and information. • The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for some reason any refrigerant happens to leak into the room, make sure it does not come in contact with any flame as of gas heaters, kerosene heaters or gas range. - Page 4 • Do not place appliances which produce open fire in places exposed to the air flow from the unit or under the indoor unit. It may cause incomplete combustion or deformation of the unit due to the heat. • Do not block air inlets nor outlets. Impaired air flow may result in insufficient performance or trouble. •...
-
Page 5: Names Of Parts
Names of parts ■ Indoor Unit ■ Main unit control panel... - Page 6 ■ Outdoor Unit Indoor Unit ■ 1. Air filter 12. Indoor Unit ON/OFF switch: • Push this switch once to start operation. 2. Air purifying filter with photocatalytic Push once again to stop it. deodorizing function: • The operation mode refers to the following •...
- Page 7 ■ Remote Controller ON/OFF TEMP POWERFUL MODE SWING CANCEL TIMER < > ARC433A24, A26 1. Signal transmitter: 8. SWING button: (page 12.) • It sends signals to the indoor unit. • Flap (Horizontal blade) 2. Display: 9. SWING button: (page 12.) (18, 24 class only) •...
-
Page 8: Preparation Before Operation
Preparation Before Operation ■ To set the batteries Position + and – correctly! 1. Press with a finger and slide the front cover to take it off. 2. Set two dry batteries (AAA). 3. Set the front cover as before. ATTENTION ■... - Page 9 Preparation Before Operation ■ To operate the remote controller • To use the remote controller, aim the transmitter at the indoor unit. If there is anything to block signals between the unit and the remote control- ler, such as a curtain, the unit will not operate. •...
- Page 10 ■ To set the clock 1. Press “CLOCK button”. is displayed. blinks. 2. Press “TIMER setting button” to set the clock to the present time. ON/OFF Holding down “ ” or “ ” button rap- TEMP POWERFUL idly increases or decreases the time dis- play.
-
Page 11: Dry · Cool · Fan Operation
OPERATION DRY · COOL · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. ■ To start operation 1. Press “MODE selector button” and select a operation mode. - Page 12 ■ To change the air flow rate setting 5. Press “FAN setting button”. DRY mode COOL or FAN mode Five levels of air flow rate setting from “ ” to “ ” plus “ ” are available. The air flow rate setting is not variable. ■...
-
Page 13: Adjusting The Air Flow Direction
Adjusting the Air Flow Direction You can adjust the air flow direction to increase your com- fort. ■ To adjust the horizontal blades (flaps) 1. Press “SWING button”. The display will light up and the flaps will begin to swing. ON/OFF 2. - Page 14 ■ To adjust the vertical blades (louvers) (13 class only) Hold the knob and move the louvers. (You will find a knob on the left-side and the right-side blades.) Notes on louvers angles ■ ATTENTION • Always use a remote controller to adjust the louvers angles. In side the air outlet, a fan is rotating at a high speed.
-
Page 15: Powerful Operation
POWERFUL Operation POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. You can get the maximum capacity . ■ To start POWERFUL operation 1. Press “POWERFUL button”. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the settings which were used ON/OFF before POWERFUL operation. -
Page 16: Timer Operation
TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER in combination. ■ To use OFF TIMER opera- tion • Check that the clock is correct. If not, set the clock to the present time. - Page 17 ■ To use ON TIMER operation • Check that the clock is correct. If not, set the clock to the present time (page 9.). 1. Press “ON TIMER button”. is displayed. blinks. 2. Press “TIMER Setting button” until the time setting reaches ON/OFF the point you like.
-
Page 18: Care And Cleaning
CARE Care and Cleaning Before cleaning, be sure to stop the operation and CAUTION turn the breaker OFF. Units ■ Indoor unit, Outdoor unit and Remote controller 1. Wipe them with dry soft cloth. ■ Front grille 1. Open the front grille. •... - Page 19 Filters 1. Open the front grille. (page 17.) 2. Pull out the air filters. • Push a little upwards the tab at the center of each air filter, then pull it down. 3. Take off the air purifying filter with photocatalytic deodorizing function. •...
- Page 20 Check Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded. Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit. Check that the earth wire is not disconnected or broken. Check that the drain comes smoothly out of the drain hose during COOL or DRY operation.
-
Page 21: Trouble Shooting
TROUBLE SHOOTING Trouble Shooting These cases are not troubles. The following cases are not air conditioner troubles but have some reasons. You may just continue using it. Case Explanation Operation does not start soon. • This is to protect the air conditioner. •... - Page 22 Check again. Please check again before calling a repair person. Case Check The air conditioner does not • Hasn’t a breaker turned OFF or a fuse blown? operate. • Isn’t it a power failure? (OPERATION lamp is off) • Are batteries set in the remote controller? •...
-
Page 23: Specification
It is recommended to have periodical maintenance by a specialist aside from regular cleaning by the user. For specialist maintenance, contact the service shop where you bought the air conditioner. The maintenance cost must be born by the user. Specification INDOOR UNIT FT13BV1LS FT18BV1LS FT24BV1LS OUTDOOR UNIT R13BV1LS R18BV1LS... - Page 24 22 Soi Onnuch 55/1 On-nuch Rd., Pravet Subdistrict, Pravet District, Bangkok 10250 Thailand. Tel : 0-2721-7670-84 Fax : 0-2721-7607-8 Two-dimensional bar code is a code for manufacturing. 3P098595-10R M02B111D (0703) HT...
