Names of Parts

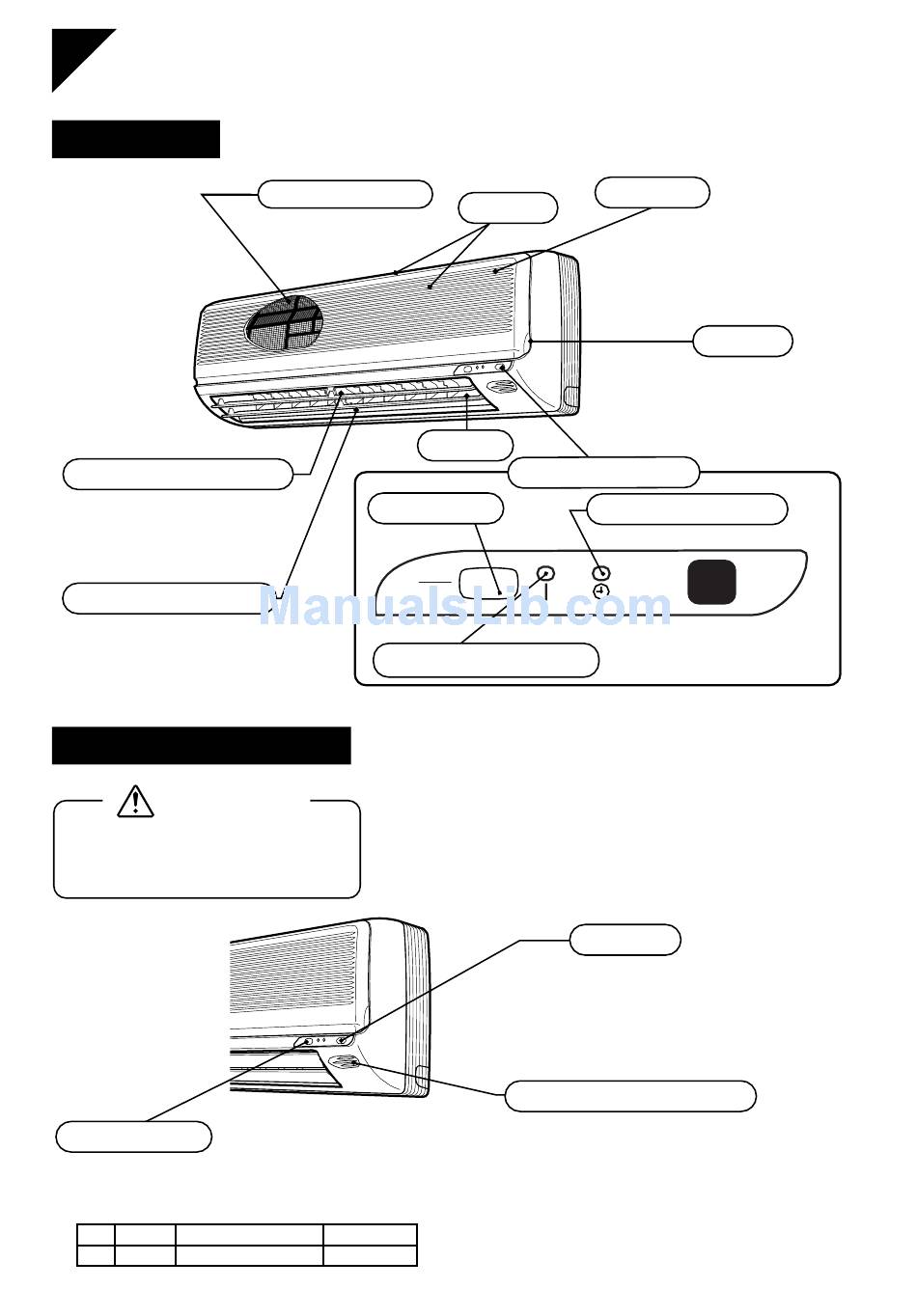

Indoor unit
Louvre (vertical blades)
The louvre is inside of the air
outlet.
(See page 9.)
Flap (horizontal blade)
(See page 9.)
Receiver explanation
CAUTION
Before opening the front grille, be sure to
stop the operation and turn the breaker
OFF. If the power is on, the fan may rotate
inside and may cause injury.
ON/OFF button
• Push this button once to start operation. Push once again to stop it.
• This button is useful when the remote controller is missing.
• The operation mode refers to the following table.
Mode Temperature setting
FT COOL 22˚C
Air purifying filter
Air purifying filters are
attached to the inside of
the air filters.
Air outlet
ON/OFF button
(See page 11.)
ON
OFF
Operation lamp (green)
Air flow rate
AUTO
Front grille
Air inlet
Indicator lamps
TIMER lamp (orange)
(See page 11.)
Receiver:
• It receives signals from the
remote controller.
• When the unit receives a signal,
you will hear a short beep.
Room temperature sensor:
• It senses the air temperature around the
unit.
Grille tab
5
