User's Manual
User's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digital camera and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Easypix Digital camera

Summary of Contents for Easypix Digital camera

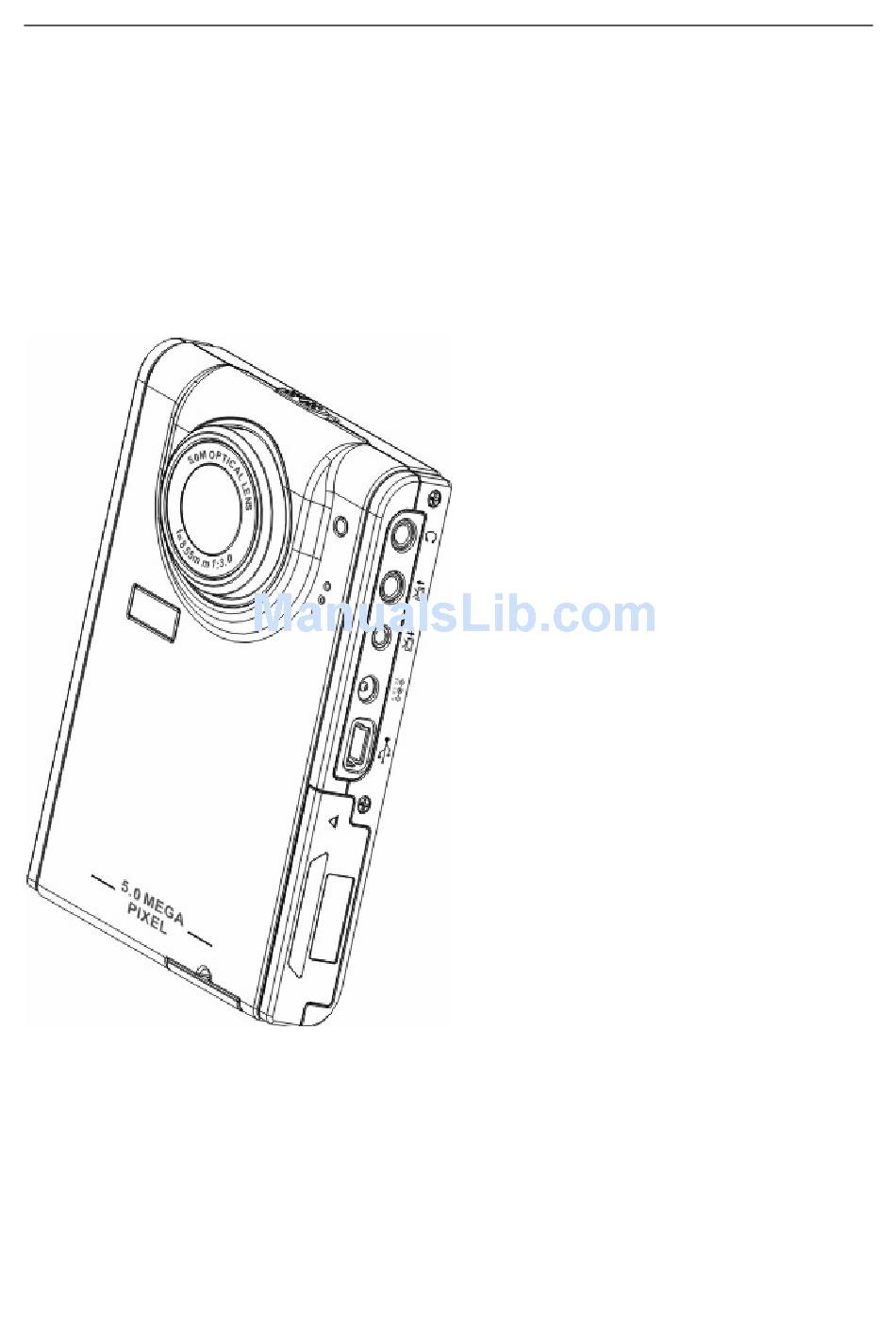

  • Page 1 User’s Manual User’s Manual...

  • Page 2: Table Of Contents

    User’s Manual Contents Introduction Features Package contents Getting Started P4-P7 Attach the hand strap Insert the batteries P8-P9 Insert an SD card P10-P11 Play Multimedia P12-P20 -Photo/Video/Audio Clip Browsing -MPEG4 Player -Audio Clip Browsing MP3 Player P18-P20 -Play -Lyric Display Voice Pen P21-P22 Alarm Clock...

  • Page 3: Features P3

    Chapter 1 Introduction Hello. Thank you for purchasing this digital camera, which will bring you a wonderful new life style, and enable you to enjoy a modern stylish life. It integrates entertainment and shooting, which enables you to enjoy high definition shooting of up to 5 megapixels, and experience the unique entertainment of this player and the exciting world of multimedia.
  • Page 4 User’s Manual Digital camera overview: Familiarize yourself with the controls of the digital camera with the illustrations below. Front view Lens Microphone Flash...
  • Page 5 User’s Manual Rear View Speaker Mode button MP3 button Camera Mode button 4-way button Menu button OK button Power button Lock button Zoom button Shutter button Side Views: Left...
  • Page 6 User’s Manual Right Earphone jack TV-in jack TV-out jack DC in jack USB port Battery/SD card compartment Top View Focus button...
  • Page 7 User’s Manual Bottom View Docking connector Hand strap eyelet...

  • Page 8: Chapter 2 Getting Started

    User’s Manual Chapter 2 Getting Started Attaching the hand strap 1£ ® Thread the short loop of the hand strap through the hand strap eyelet at the bottom of the player. 2£ ® Thread the long loop of the hand strap through the short loop. 3£...

  • Page 9: Turning The Player On And Off

    User’s Manual 3£ ® Insert the batteries into the compartment observing the correct polarity. 4£ ® Close the cover and snap it into place in the direction of the arrow. Turning the player on and off Press the Power button on the left side of the player to turn it on. Illustration: Power button Press the Power button again to turn the player off.

  • Page 10: Inserting An Sd Card

    User’s Manual Inserting an SD card 1£ ® Slide the battery/memory card cover on the side of the player in the direction of the arrow. 2£ ® Open the cover.
  • Page 11 User’s Manual 3£ ® Insert the SD card into the slot, with the label facing the front of the player, until it clicks into place. Note: SD cards can only be inserted by one direction. If the card does not enter the slot easily, do not force it.

  • Page 12: Photo/Video/Audio Clip Browsing P12

    Media player Photo/Video/Audio Clip Browsing: Enter the photo browsing mode in the main menu of digital camera, and the LCD screen will display the photos/video clip thumbnails according to the time. You can press the left or the right key of the 4-way button to move to the previous or the next file.
  • Page 13 User’s Manual Delete: In the Play Mode, you can easily delete any unsatisfactory photo or video clip, and not transfer them into the PC. To delete unneeded files, please follow the procedure: 1£ ® In the Play Mode, use the 4-way button to move to the photo/video clip to be deleted.
  • Page 14 User’s Manual Edit Photos You can use various options in the playback menu to edit photos, such as resizing, cropping, or rotating photos. Resize Photos To resize a photo, please follow the procedure: 1£ ® In the Play Mode, use the 4-way button to move to the photo that you want to resize.
  • Page 15 User’s Manual 3£ ® Press the Up or the Down key of the 4-way button and the OK button to open the Rotate submenu. 4£ ® Press the Up or the Down key of the 4-way button to select one of the following rotate options: 5£...
  • Page 16 User’s Manual Set the slideshow interval To set the interval between consecutive photos during the slide show, please follow the procedure: 1£ ® In the photo mode, enter the photo browsing state. 2£ ® Press the MENU button, and use the left or the right key of the 4-way button to move to the Slide menu.
  • Page 17 User’s Manual 4£ ® Press the Up or the Down key of the 4-way button to select one of the following direction options: ----Forward ----Backward 5£ ® Press OK when finished. Repeat the slideshow To show the slides repeatedly, please follow the procedure: 1£...

  • Page 18: Mp3 Player

    User’s Manual 2£ ® Press the MENU button, and use the left or the right key of the 4-way button to move to the Slide menu. 3£ ® Press the Up or the Down key of the 4-way button to display the Play This File submenu.
  • Page 19 User’s Manual You can use the Volume Control Button on the side of the player to control the volume by yourself. When listening to the music, you are recommended to move up the lock button on the side of the player to avoid accidental operations.

  • Page 20: Lyric Display

    User’s Manual Lyric Display: This feature only supports the lyrics of .lrc format. You can download or use the proper software to edit the lyrics. To use this feature, you just need to copy the lyrics to the DCIM directory of the player when uploading the songs from the PC.

  • Page 21: Alarm Clock

    6£ ® When recording is finished, move to the Exit icon, and press OK to confirm. Alarm Clock: This digital camera features an alarm clock. To set the time, please follow the procedure: 1£ ® Turn on the player, and enter the multimedia main menu.

  • Page 22: World Time

    User’s Manual 4£ ® You can use the Up or Down key of the 4-way button to select items. You can use the Left or the Right key of the 4-way button to set the time and alarm. 5£ ® Press OK to confirm.

  • Page 23: Calculator

    User’s Manual 2£ ® Use the 4-way button and then the OK button to enter the Accessory submenu. 3£ ® Use the Left or the Right key of the 4-way button to enter the World time menu. 4£ ® After you enter the World time menu, use the Right key of the 4-way button to enter the menu selection.

  • Page 24: Currency Exchange P24

    User’s Manual 4£ ® Use the Left, Right, Up, and Down key of the 4-way button to enter numbers or symbols. 5£ ® To finish calculation, move to the = sign, and you can get the result. Currency Exchange: This player uses a set of basic exchange rates to make currency conversion.

  • Page 25: File Browser P25

    User’s Manual File Browser: It can display all the files in the folders of this player, which makes it convenient for you to copy or delete these files. To use this feature, please follow the procedure: Delete: 1£ ® Turn on the player, and enter the multimedia menu. 2£...

  • Page 26: Pc-Camera P26

    User’s Manual Setup Enable sound effect: Follow the procedure to enable the sound effects: 1£ ® Turn on the player, enter the main menu, and press the right key of the 4-way button to switch to the Setup menu. 2£ ® Press OK to enter, and use the Left or the Right key of the 4-way button to switch to the Sound Effects menu.
  • Page 27 User’s Manual Set the welcome picture: Follow the procedure to specify the welcome picture shown when the player is turned on. 1£ ® Turn on the player, and press the left or the right key of the 4-way button to switch to the Setup menu. 2£...
  • Page 28 User’s Manual Set the TV out: You can connect the digital camera to a TV, and use the TV screen to view photos and play video clips. Set the output mode: Before connecting the player to a TV, you need to set the TV output mode and make sure that it matches your TV.
  • Page 29 User’s Manual Set the auto power off function: The auto power off function turns off power automatically after a specified period in order to conserve power. Follow the procedure to set the auto power off interval. 1£ ® Turn on the player, enter the main menu, and press the right key of the 4-way button to switch to the Setup menu.
  • Page 30 User’s Manual Set the language: To set the menu language, please follow the procedure: 1£ ® Turn on the player, enter the main menu, and press the right key of the 4-way button to switch to the Setup menu. 2£ ® Press OK to enter, and use the Left or the Right key of the 4-way button to switch to the Language menu.
  • Page 31 User’s Manual Format the memory: Follow the procedure to format the camera’s memory: 1£ ® Turn on the player, enter the main menu, and press the right key of the 4-way button to switch to the Setup menu. 2£ ® Press OK to enter, and use the Left or the Right key of the 4-way button to switch to the Format menu.

  • Page 32: Camera Mode

    User’s Manual Chapter 4 Camera Mode With the 5-megapixel setting of this digital camera, you can easily capture the exciting segments of your life. First, you can use the right shortcut key of the player to enter the camera mode directly, which makes it convenient for you to take photos or record videos.

  • Page 33: Take Pictures

    Press twice to enter the Video Mode. Press thrice to enter the Play Mode. Take pictures 1£ ® Turn on the digital camera. Make sure the player is in the Picture mode. 2£ ® Frame the picture using the LCD. 3£ ® Press the Shutter button.

  • Page 34: Use The Flash P34

    User’s Manual Use the flash The flash has three settings for different lighting conditions. Press MENU button to enter the menu, and display different flash settings. Icon Description Flash automatically as necessary Enable flash Disable flash Use the self-timer The self-timer allows you to take hands-free pictures and videos such as self portraits or group photos.

  • Page 35: Couple Shots P35

    User’s Manual 3£ ® Use the Down key of the 4-way button to select the Continuous Shots option, and press MENU to return. 4£ ® This feature has been set. Press OK to begin continuous shots. Couple Shots This feature enables you to shoot different objects on a single screen. See the following procedure for detail: 1£...

  • Page 36: Picture Frame P36

    User’s Manual Picture Frame Picture frame enables you to select various backgrounds to make personalized decoration. See the following procedure for detail: 1£ ® Turn on the player. Make sure the player is in the Picture mode. 2£ ® Press MENU, and use the Left or the Right key of the 4-way button to enter the Capture Mode menu.
  • Page 37 User’s Manual Record videos 1£ ® Turn on the player. Make sure the player is in the Video mode. 2£ ® Frame the picture using the LCD. 3£ ® Press the Shutter button or OK to begin recording the video. 4£...
  • Page 38 User’s Manual Set the resolution: Use this menu item to select the resolution of the image as follows: 1£ ® Turn on the player and switch to the Picture Mode. 2£ ® Press MENU. 3£ ® Press the Left or the Right key of the 4-way button to switch to the Resolution menu.
  • Page 39 The EV Adjust menu enables you to set the amount of light that enters the player while taking the picture. The EV compensation is expressed as a single number that is used by the digital camera to calculate the correct combination of aperture and shutter speed for producing optimum quality pictures.
  • Page 40 ----Best 1:8 5£ ® Press OK when finished. Order prints You can set up printing information for printing the digital images taken with your digital camera. Refer to the following sections for more information: Use DPOF The DPOF (Digital Print Order Format) refers to a format that is used for recording the print specifications of images.
  • Page 41 User’s Manual 2£ ® Press MENU, and use the Left or the Right key of the 4-way button to switch to the Print menu. 3£ ® Press the Up or the Down key of the 4-way button to select Current to set the DPOF information of the current image, or select Reset to clear the DPOF information of the image.

  • Page 42: Install The Software P42

    To install the software, please follow the procedure: 1£ ® Insert the CD into your PC’s CD drive. The CD menu is displayed. 2£ ® Select one of the following options: ----Digital camera Driver ----Ulead Photo Explorer 8.0SE ----Ulead Video Studio 7.0SE...
  • Page 43 User’s Manual Record TV program or Karaoke You can connect the player to a TV to record your favorite TV program, and use the Karaoke feature to record your own songs. First, make sure that the TV-IN cable has been connected with the TV properly: To record TV programs or Karaoke, Please follow the procedure: 1£...

  • Page 44: Appendix 1: Specifications

    User’s Manual Appendix 1: Specifications Image sensor 1/1.8-inch CMOS Resolution 5 megapixels (2592 × 1944 pixels) Extrapolated resolution 12 megapixels Shutter speed 1/6~1/1000 second Zoom 8x digital zoom 2.5-inch TFT Internal memory 128 MB Supported media SD (Secure Digital) Card Format: Image JPEG/EXIF2.1/DPOF...

  • Page 45: Appendix 2: Error Messages

    User’s Manual Appendix 2: Error Messages Error Message Possible causes Solutions The card is full, and no more Card Full Delete some files or insert another card. files can be stored on it. Move the card’s write-protect switch to Write-Protect Card has been write-protected.
  • Page 46 User’s Manual Blaze MP3 Workshop Blaze MP3 Workshop is a full featured and easy to use convert tool. It can support CD, DVD, VCD, MPEG4 convert MP3 file, and also support record function and save as MP3 format. Latest Version: Release Date: Apr.
  • Page 47 User’s Manual Introduction of Blaze Video Magic V1.0 Blaze Video Magic V1.0 is a suite of powerful multimedia transformation software, which can transform media files into ASF and AVI format under Windows systems. It is different from other transformation softwares on the internet, which are either full of advertisements, or too simple in functionality, or only for a certain type of file format.
  • Page 48 User’s Manual 3.4 Delete files: Delete the highlighted files in the current list box. 3.5 Select all: Select all the files in the list box. 3.6 Output setting: Click the Setting button to show an Output Setting box, which is used to set parameters.
  • Page 49 User’s Manual 5 Supported video file formats: Real Media Files (*.RM;*.RMVB) Windows AVI Files (*.AVI) Windows Media Video Files (*.WMV) Advanced System Format (*.ASF) MPEG(*.MPG;*.MPEG;*.MPE) MPEG4 Files(*.MP4) VCD(*.DAT) Quicktime Files(*.MOV) DVD(*.VOB) Output Type: AVI (Video format: MPEG-4, Audio format: MPEG-1)
