Universal Remote Control UR2-DTA Operating Instructions

Operating Instructions For Introduction
1

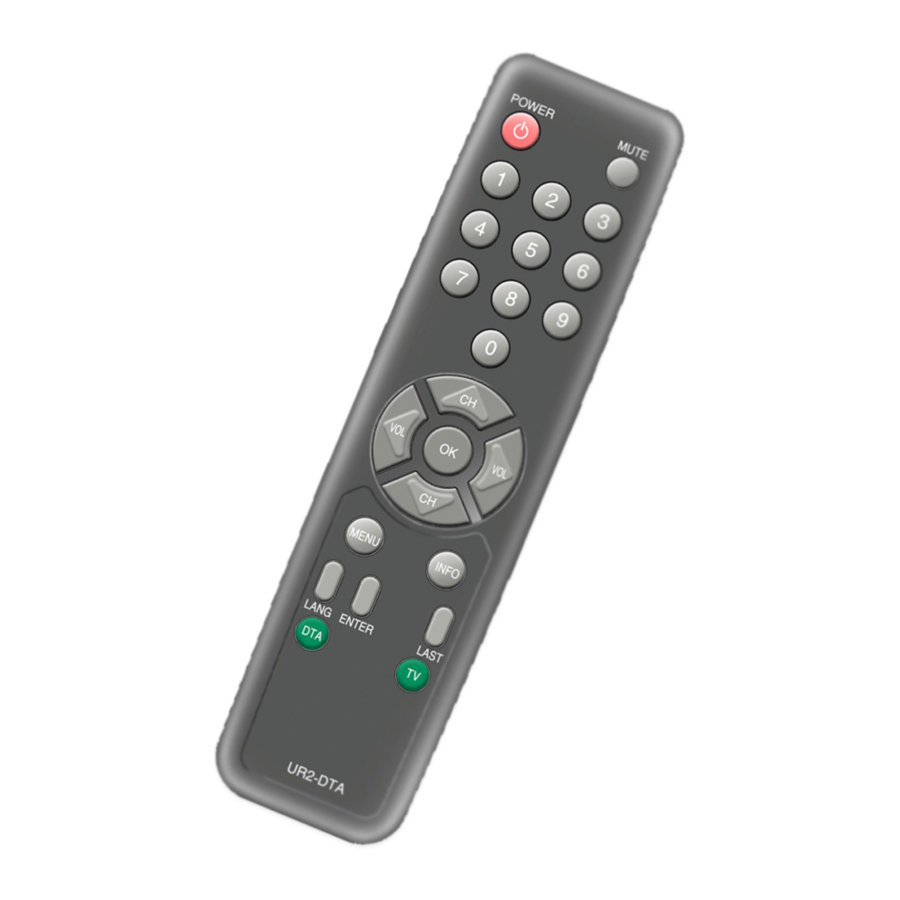

UR2-DTA
The is designed to
UR2-DTA
operate the S/A, Pace Micro,
Motorola and IPTV set tops, plus
the majority of TV equipment on
DTA Remote Control
the market as shown below.
DTA : DTA boxs, IPTV set tops
TV : Televisions
2 Replacing Batteries
Before you program or operate the
remote control, you must install two new
AA alkaline batteries.
STEP1 Remove the battery compart-
ment cover on the back of your
remote control.
STEP2 Check battery polarity carefully,
and install the batteries as
shown in the illustration below.
STEP3 Replace the battery compart-
ment cover.
3 Operations
Volume Default: TV volume and mute
through The TV, with the option of con-
trolling volume and mute through the
Cable. Refer to Section E For program-
Universal Remote Control, Inc.
ming the volume and mute through
www.universalremote.com
your Cable.
OCE-0089A REV 03 (05/26/10)
Button Functions
4
Programming the Remote Control
5
There are three ways you can program your remote:
* Quick Set-Up Method
* The Pre-Programmed 3-Digit Code Method
* The Auto-Search Method
The Quick Set-Up Method is a unique new feature that enables the fastest and
easiest set-up by using one-digit codes for up to 10 major brands for each compo-
nent.
The Pre-Programmed Code Method allows you to setup all the buttons at once by
entering 3-digit code numbers that correspond to a particular Component's manu-
facturer/brand, so it's the fastest and easiest of the two methods. (Code Tables
are on the backside of this Instruction Sheet.) The Auto-Search Method scans
through all the codes in the remote control, one at a time.
IMPORTANT SETUP NOTE! STEP4 After you've entered the correct
code number and the Component
This pertains to all programming steps.
has turned Off, press the [POWER]
When you are in setup mode, a compo-
button to turn the Component
nent LED will light for 20 seconds.If you do
back On. Now it is time to test the
not press a button within 20 seconds, the
VOLUME and MUTE buttons for
LED light will turn off and exit setup mode
the TV to make sure they all work.
and you will need to start over.
If any of the functions do not work
as they should, repeat from STEP
A. Quick Set-Up Method
3 using the next 3-digit code num-
STEP1 Turn on the device you want to
ber listed for that brand until you
program-to program your TV,
find the best code.
turn the TV on.
STEP5 Once you have found the correct
STEP2 Point the remote at the TV and
3-digit code, save it by pressing
press and hold TV key for 3 sec-
the same [COMPONENT] button
onds. While Holding the TV key,
one more time. The POWER LED
the POWER LED will light off and
light will blink twice to confirm that
on again. Begin to press the
the code was successfully stored.
number keys, one at a time,
starting with 1, then 2, 3...0 until C. Auto-Search Method
the TV turns off.
STEP1 Turn on the Component you
STEP3 Release the TV key to save the
want to program (TV, DTA).
code. The POWER LED will blink
STEP2 Press the [COMPONENT] button
twice to confirm the code is
(TV or DTA) to be programmed
stored.
and OK button simultaneously
for 3 seconds. The POWER LED
B. Pre-Programmed 3-Digit Code
light will turn on for 20 seconds
Method
indicating the unit is ready to be
programmed.
STEP1 Turn on the Component you want
to program(TV, DTA).
STEP3 Point the remote toward the
STEP2 Press the [COMPONENT] button Component and press the [CH ]
(TV or DTA) to be programmed or [CH ] button one step at a
and OK button simultaneously time or keep it pressed. The
for 3 seconds. The POWER LED remote will emit a series of
light will turn on for 20 seconds ON/OFF commands. Release the
[CH ] or [CH ] button as soon
indicating the unit is ready to be
as the Component turns Off.
programmed.
STEP4 Test functions. (Same as for 3-
STEP3 Point the remote control toward
Digit Code Programming Method
the Component and enter the 3-
- Section B). If any of the func-
digit code number assigned to
tions do not work as they should,
your brand.
repeat from STEP 3 using [CH ]
*Note : If the 3-digit code number you just
or [CH ] buttons to find the cor-
entered is correct, the Component
rect code.
will turn Off. If it did not turn Off,
STEP5 Save the code. (Same as for
continue entering code numbers
3-Digit Code Programming
listed for that brand until the
Method - Section B).
Component turns Off.
Now, repeat the Auto-Search Method If you wish to store the TV volume
control in DTA mode, use the follow-
for those Components you could
ing steps.
not program earlier with the Pre-
Programmed Method.
Press the [DTA] button and
STEP1
the [OK] button simultane-
D. Finding a Component Button's
ously for 3 seconds.
Setup Code Number
The [DTA] Component LED
will turn on for 20 seconds.
If you used the Auto-Search Method
to program a Component, you may STEP2 Press the [VOL ] button.
not know what the correct code num-
Press the [TV] button.
STEP3
ber is. Here is a way for you to identi-
The Component LED will
fy the code number, so you can
blink twice to confirm the
record it for future reference.
programming.
Press the [COMPONENT] but- To return to original state:
STEP1
ton (TV or DTA) you want to If you wish to restore the DTA volume
control in DTA mode, repeat the
verify and the OK button simul-
above steps but press [DTA] in
taneously for 3 seconds. The
.
POWER LED light will turn on STEP3
for 20 seconds.
F. Memory Lock System
Press the [INFO] button and
STEP2
This remote control is designed to
count the number of times the
retain programmed memory for 10
Component LED light blinks.
years even after batteries are
This number indicates the first
removed from the remote control.
digit of the code, followed by
G. Write your TV Set-up codes
the second and third, each sep-
arated by a one second pause
Set-up Code Number :
when the LED will turn off.
For additional information about your
remote control, go to www.universal-
*Note : 10 blinks represents the
remote.com
number zero.
Example : One blink, (pause), eight
blinks, (pause) and three
blinks, indicates code
number 183.
E. Programming Volume Control
Volume and Mute control are factory-
programmed to automatically transfer
to the respective Component mode you
select, as follows:
DTA : TV T V : TV
However, you can program the volume
controls (Volume Up, Volume Down
and Mute) from one Component to
operate in another Component.
