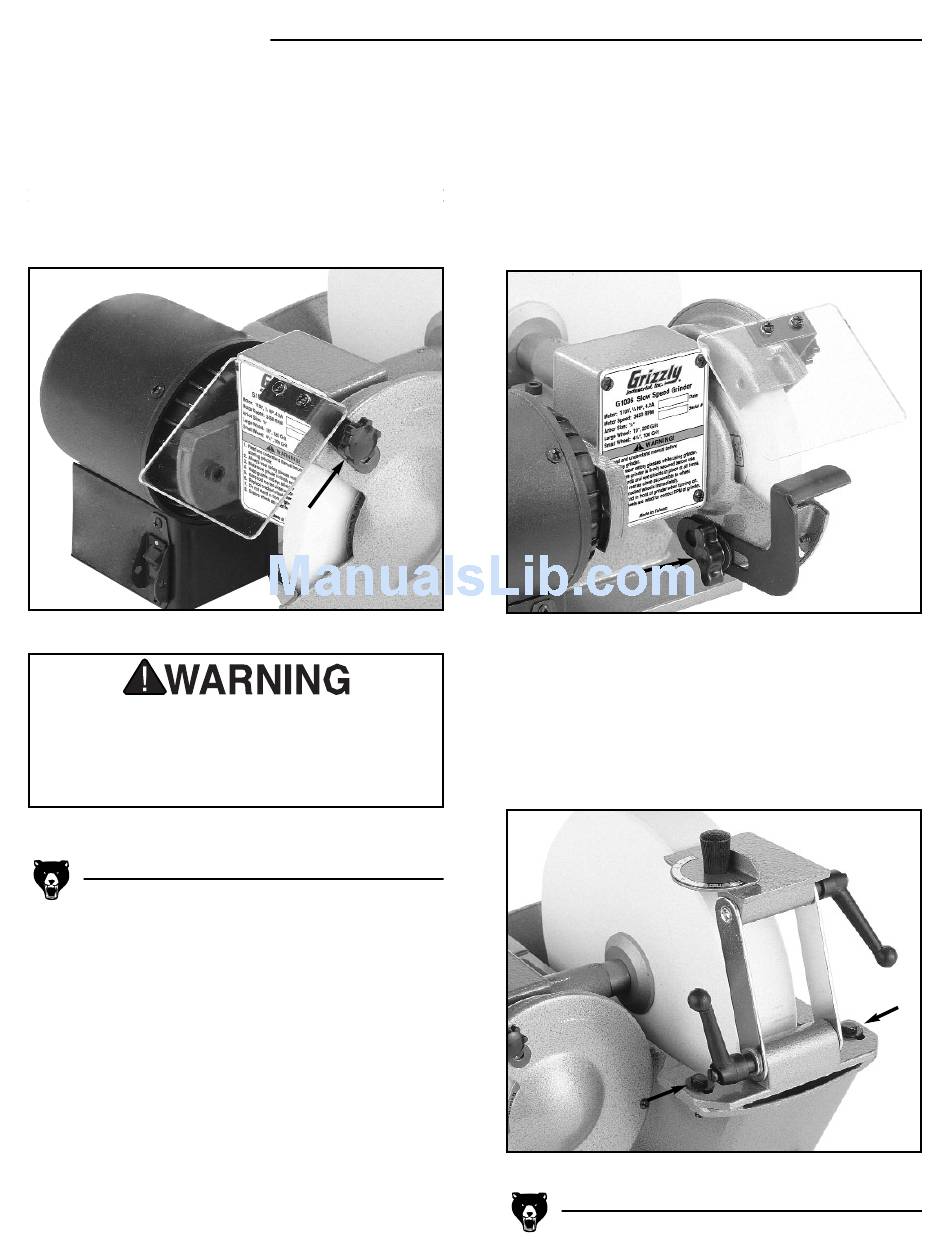

VII. ASSEMBLY

A. EYE SHIELD
Attach the plastic eye shield to its mounting
bracket using the 2 Phillips
nuts provided, then attach the eye shield assem-
bly to the outside wheel guard just above the cut-
away. A knurled knob holds the eye shield in
place. Figure 1.
Figure 1. Knob to adjust eye shield.
An Eye Shield is included for your protec-
tion. Failure to attach the Eye Shield could
result in serious personal injury to the oper-
ator or others in the work area.
G1036 Slow-Speed Grinder
® Head screws and
B. TOOL RESTS
Attach the tool rest for the 4
the inside wheel guard of the G1036, using the
knob and Hex Nut supplied. Figure 2. The Hex
Nut is placed between the knob and tool rest and
acts as a jam nut, preventing the knob from
vibrating loose.
Figure 2. Knob to adjust tool rest.
The tool rest for the 10'' stone is attached to the
right end of the water reservoir. Bolt the tool rest
in place using the 2 Hex Bolts, Nuts and Washers
provided. Figure 3. The two lever-type handles
are used to adjust the tool rest for the proper
positioning relative to the wheel.
Figure 3. Bolts to mount tool rest.
1 ⁄ '' grinding stone to
2
