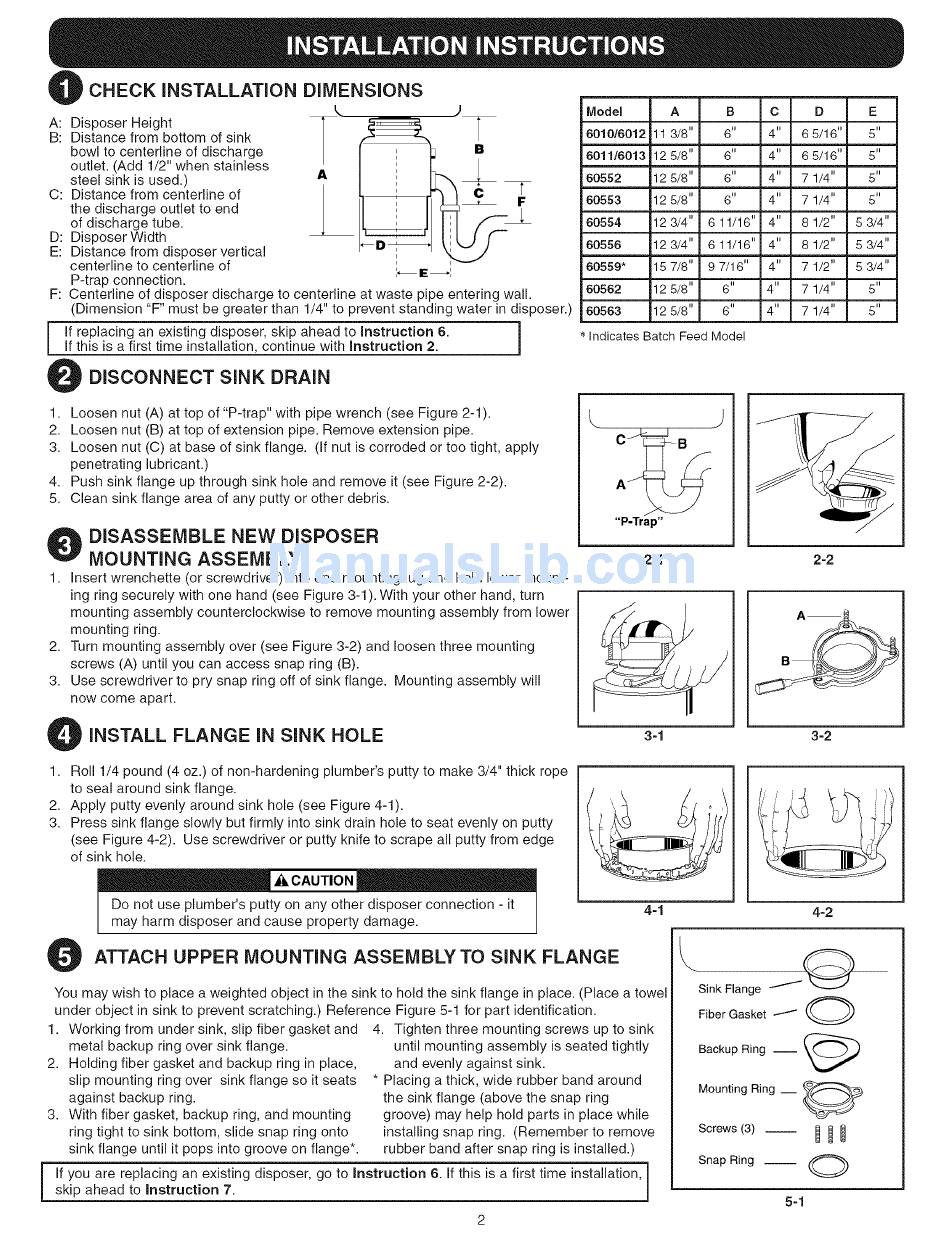

Installation Instructions - Kenmore 6010 Installation, Care & Use Manual

Food waste disposers
Table of Contents

Advertisement

CHECK
INSTALLATION
DIMENSIONS
L
J
A: Disposer Height
B: Distance from bottom of sink
bowl to centerline of discharge
B
outlet. (Add 1/2" when stainless
.J
steel sink is used.)
A
C: Distance from centerline of
the discharge outlet to end
I_l
_
F
of discharge tube.
D: Disposer Width
E: Distance from disposer vertical
--D_
centerline to centerline of
_
_=_:
P-trap connection.
F: Centerline of disposer discharge to centerline at waste pipe entering wall.
(Dimension "F" must be greater than 1/4" to prevent standing water in disposer.)
If replacing an existing disposer, skip ahead to Instruction
6.
1
If this is a first time installation, continue with Instruction
2.
!
Model
A
B
C
D
E
6010/6012
11 3/8"
6"
4"
6 5/16"
5"
6011/6013
12 5/8"
6"
4"
6 5/16"
5"
60552
12 5/8"
6"
4"
7 1/4"
5"
60553
12 5/8"
6"
4"
7 1/4"
5"
60554
12 3/4"
6 11/16"
4"
8 1/2"
5 3/4"
60556
12 3/4"
6 11/16"
4"
8 1/2"
5 3/4"
60559*
15 7/8"
9 7/16"
4"
7 1/2"
5 3/4"
60562
12 5/8"
6"
4"
7 1/4"
5"
60563
12 5/8"
6"
4"
7 1/4"
5"
Indicates Batch Feed Model
DISCONNECT
SINK DRAIN
1. Loosen nut (A) at top of "P-trap" with pipe wrench (see Figure 2-1).
2. Loosen nut (B) at top of extension pipe. Remove extension pipe.
3. Loosen nut (C) at base of sink flange. (If nut is corroded or too tight, apply
penetrating lubricant.)
4. Push sink flange up through sink hole and remove it (see Figure 2-2).
5. Clean sink flange area of any putty or other debris.
2,
3.
DISASSEMBLE
NEW DISPOSER
MOUNTING
ASSEMBLY
Insert wrenchette (or screwdriver) into one mounting lug and hold lower mount-
ing ring securely with one hand (see Figure 3-1 ). With your other hand, turn
mounting assembly counterclockwise
to remove mounting assembly from lower
mounting ring.
Turn mounting assembly over (see Figure 3-2) and loosen three mounting
screws (A) until you can access snap ring (B).
Use screwdriver to pry snap ring off of sink flange. Mounting assembly will
now come apart.
L
/
"P-Trap"
2-1
2-2
INSTALL
FLANGE
IN SINK HOLE
3-1
3-2
1,
2.
3.
Roll 1/4 pound (4 oz.) of non-hardening
plumber's putty to make 3/4" thick rope
to seal around sink flange.
Apply putty evenly around sink hole (see Figure 4-1).
Press sink flange slowly but firmly into sink drain hole to seat evenly on putty
(see Figure 4-2). Use screwdriver or putty knife to scrape all putty from edge
of sink hole.
_
_CAUTION
_
Do not use plumber's putty on any other disposer connection - it
may harm disposer and cause property damage.
4-1
4-2
ATTACH UPPER MOUNTING
ASSEMBLY
TO SINK FLANGE
You may wish to place a weighted object in the sink to hold the sink flange in place. (Place a towel
under object in sink to prevent scratching.)
Reference Figure 5-1 for part identification.
1. Working from under sink, slip fiber gasket and
4. Tighten three mounting screws up to sink
metal backup ring over sink flange,
until mounting assembly is seated tightly
2. Holding fiber gasket and backup ring in place,
and evenly against sink.
slip mounting ring over sink flange so it seats
* Placing a thick, wide rubber band around
against backup ring.
the sink flange (above the snap ring
3. With fiber gasket, backup ring, and mounting
groove) may help hold parts in place while
ring tight to sink bottom, slide snap ring onto
installing snap ring. (Remember to remove
sink flange until it pops into groove on flange*,
rubber band after snap ring is installed.)
If you are replacing an existing disposer, go to Instruction
6. If this is a first time installation,i
skip ahead to Instruction
7.
1
Sink Flange
FiberGasket _
Backup
Ring
i
_k_---- _
Mounting
Ring
__
Screws
(3)
8 _
Snap Ring __
5-1
