Wheelock E60 Installation Instructions

273 Branchport Avenue
Long Branch, N.J. 07740
(800) 631-2148
www.wheelockinc.com
Use this product according to this instruction manual. Please keep this instruction manual for future reference.

GENERAL:

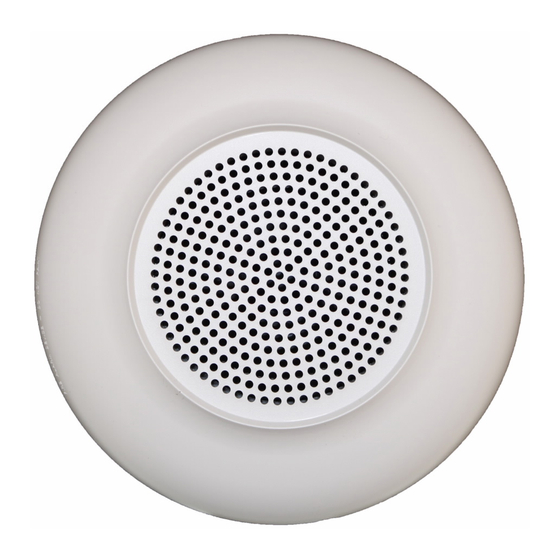

Wheelock's Series E60 Round Speakers and Speaker Strobes are UL Listed under Standard 1971 for Signaling Devices for the Hearing Impaired and UL Standard 1480
for Speaker Appliances. They are designed for multiple power requirements with high dBA output at each power tap. All models offer a choice of field selectable taps,
1/8W to 2W, for either 25.0VRMS or 70.0VRMS audio systems. The design incorporates a high efficiency speaker for maximum output at minimum power across a
frequency range of 400Hz to 4000Hz, and features a sealed back construction for extra protection and improved audibility. The Series E60 appliances also incorporate a
speaker mounting plate attached to the speaker for ease of installation. The Speaker Strobes can provide a non-synchronized strobe appliance when connected directly to
a Fire Alarm Control Panel (FACP), or provide a synchronized strobe appliance when used in conjunction with a Sync Module (SM), Dual Sync Module (DSM), or
Wheelock power supplies. The strobes use a xenon flashtube with solid state circuitry enclosed in a polycarbonate lens to provide maximum visibility and reliability for
effective visible signaling. The E60-24MCW and E60-24MCWH Speaker Strobes are for wall mounting only. The E60-24MCC and E60-24MCCH Speaker Strobes are
for ceiling mounting only. All models are Listed for indoor use only with the back boxes specified in these instructions (see Wiring and Mounting Information).
WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY.
INSTRUCTIONS, CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION, INSTALLATION AND/OR OPERATION OF THESE
PRODUCTS IN AN EMERGENCY SITUATION, WHICH COULD RESULT IN PROPERTY DAMAGE AND SERIOUS INJURY OR DEATH TO YOU
AND/OR OTHERS.

SPECIFICATIONS:

Model Voltage
(VRMS)
E60 25/70
E60-24MCC 25/70
E60-24MCCH 25/70
E60-24MCW 25/70
E60-24MCWH 25/70
NOTES:
1. Strobes will produce 1 flash per second over the "Regulated Voltage" range.
2. These strobes meet the required light distribution patterns defined in UL 1971.
3. All models are UL Listed for indoor use with a temperature range of +32ºF to +120ºF (0ºC to +4ºC) and maximum humidity of 85% RH. The effect of
shipping and storage temperatures shall not adversely affect the performance of the appliance when it is stored in the original cartons and is not subjected to
misuse or abuse.
4. The maximum supervision voltage is 33 volts DC.
5. Frequency range of speakers is 400-4000Hz.
CAUTION: Always operate audio amplifiers and speakers within their specified ratings. Excessive input may distort sound quality and may damage audio
equipment. Do not exceed 100% of speaker input voltage per UL 1480. Improper input voltage can damage speaker. If distortion is heard, check for clipping of the
audio appliance with an oscilloscope and reduce the amplifier input level or gain level to eliminate any clipping.
WARNING: CANDELA SETTING WILL DETERMINE THE CURRENT DRAW OF THE PRODUCT.
UL Voltage
DC 16-33VDC
FWR 16-33VRMS
UL Voltage
DC 16-33VDC
FWR 16-33VRMS
CAUTION: These strobes are UL Listed as "Regulated". They are intended to be used with FACPs whose notification circuits are UL Listed as "Regulated."
These appliances shall not be used on UL Listed "Special Application" notification circuits unless the appliances are identified to be compatible in the installation
instructions of the FACP or unless the FACP is identified to be compatible in this instruction manual.
WARNING: THESE STROBES WERE TESTED TO THE REGULATED VOLTAGE LIMITS OF 16.0-33.0 VOLTS FOR 24V MODELS USING
FILTERED DC OR UNFILTERED FULL-WAVE-RECTIFIED VOLTAGE. DO NOT APPLY VOLTAGE OUTSIDE OF THIS RANGE.
Copyright 2006 Wheelock, Inc. All rights reserved.
Thank you for using our products.
INSTALLATION INSTRUCTIONS
SERIES E60 ROUND SPEAKERS AND SPEAKER STROBES
Table 1: UL Listed Models and Ratings
Speaker
dBA at 10 Feet
(Rated Watts)
1/8 1/4 1/2
77.0 79.5 82.5
77.0 79.5 82.5
77.0 79.5 82.5
77.0 79.5 82.5
77.0 79.5 82.5
Table 2: UL Current Ratings with Strobe Only
E60-MCC/E60-MCCH Maximum RMS Current (AMPS)
15cd
0.065
0.110
E60-MCW/E60-MCWH Maximum RMS Current (AMPS)
15cd
0.060
0.102
FAILURE TO COMPLY WITH ANY OF THE FOLLOWING
Regulated
Voltage
(VDC/VRMS)
1 2
85.0 88.0 ----
85.0 88.0 24
85.0 88.0 24
85.0 88.0 24
85.0 88.0 24
30cd 75cd
0.105 0.189
0.170 0.280
30cd 75cd
0.092 0.165
0.155 0.253
Strobe
Voltage
Range Candela
(VDC/VRMS)
---- ----
16-33.0 15/30/75/95
16-33.0 115/177
16-33.0 15/30/75/110
16-33.0 135/185
95cd 115cd
0.249 0.300
0.375 0.455
110cd 135cd
0.220 0.300
0.347 0.455
Mounting
Options
A
B
B
B
B
177cd
0.420
0.645
185cd
0.420
0.645
P84719 C
Sheet 1 of 4
