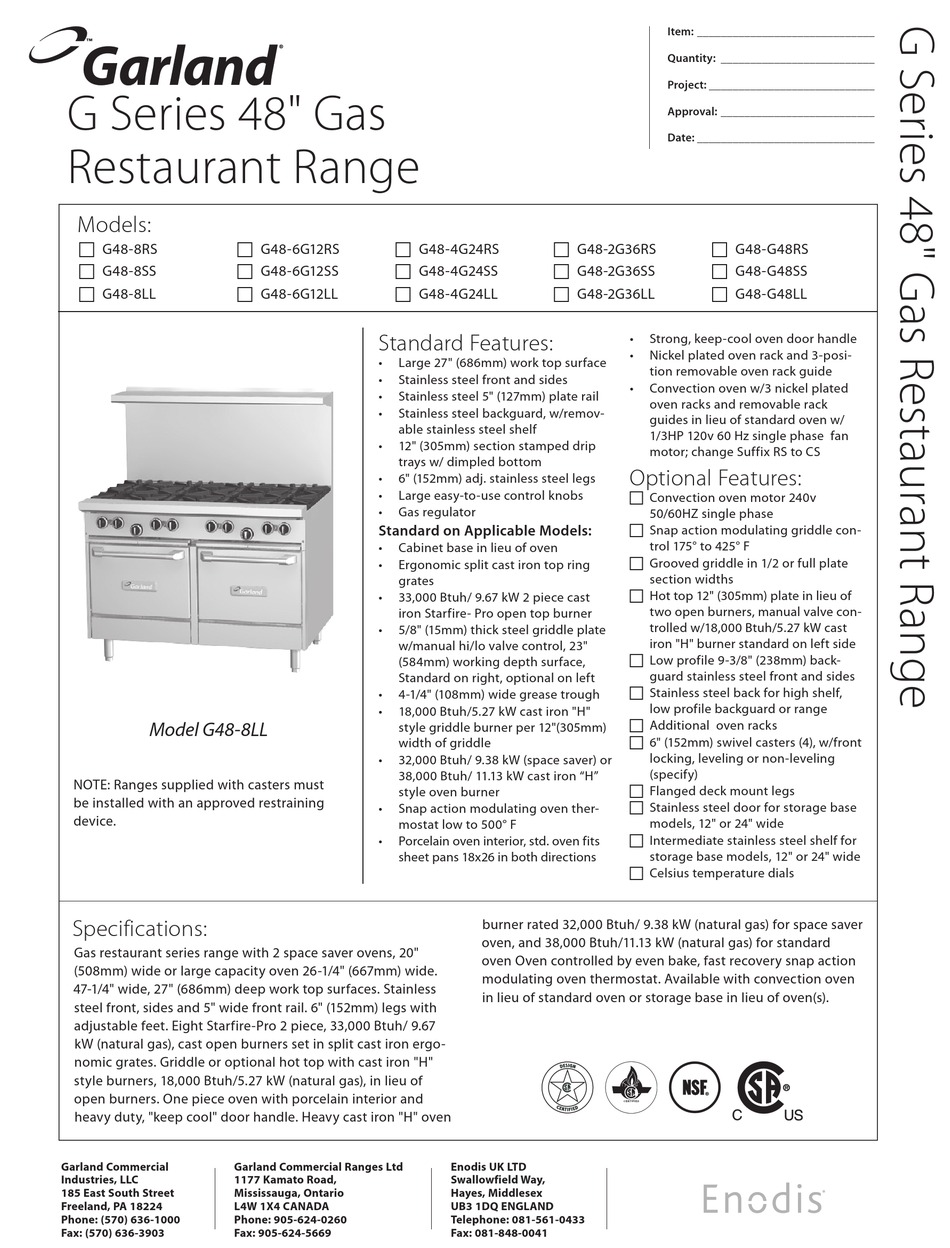

Garland G48-2G36LL Specifications

G Series 48" Gas
Restaurant Range
Models:
 G48-8RS  G48-6G12RS
 G48-8SS  G48-6G12SS
 G48-8LL  G48-6G12LL
Model G48-8LL
NOTE: Ranges supplied with casters must
be installed with an approved restraining
device.

Specifications:

Gas restaurant series range with 2 space saver ovens, 20"
(508mm) wide or large capacity oven 26-1/4" (667mm) wide.
47-1/4" wide, 27" (686mm) deep work top surfaces. Stainless
steel front, sides and 5" wide front rail. 6" (152mm) legs with
adjustable feet. Eight Starfire-Pro 2 piece, 33,000 Btuh/ 9.67
kW (natural gas), cast open burners set in split cast iron ergo-
nomic grates. Griddle or optional hot top with cast iron "H"
style burners, 18,000 Btuh/5.27 kW (natural gas), in lieu of
open burners. One piece oven with porcelain interior and
heavy duty, "keep cool" door handle. Heavy cast iron "H" oven
Garland Commercial Garland Commercial Ranges Ltd
Industries, LLC 1177 Kamato Road,
185 East South Street Mississauga, Ontario
Freeland, PA 18224 L4W 1X4 CANADA
Phone: (570) 636-1000 Phone: 905-624-0260
Fax: (570) 636-3903 Fax: 905-624-5669
 G48-4G24RS  G48-2G36RS
 G48-4G24SS  G48-2G36SS
 G48-4G24LL  G48-2G36LL

Standard Features:

• Large 27" (686mm) work top surface
• Stainless steel front and sides
• Stainless steel 5" (127mm) plate rail
• Stainless steel backguard, w/remov-
able stainless steel shelf
• 12" (305mm) section stamped drip
trays w/ dimpled bottom
• 6" (152mm) adj. stainless steel legs
• Large easy-to-use control knobs
• Gas regulator
Standard on Applicable Models:
• Cabinet base in lieu of oven
• Ergonomic split cast iron top ring
grates
• 33,000 Btuh/ 9.67 kW 2 piece cast
iron Starfire- Pro open top burner
• 5/8" (15mm) thick steel griddle plate
w/manual hi/lo valve control, 23"
(584mm) working depth surface,
Standard on right, optional on left
• 4-1/4" (108mm) wide grease trough
• 18,000 Btuh/5.27 kW cast iron "H"
style griddle burner per 12"(305mm)
width of griddle
• 32,000 Btuh/ 9.38 kW (space saver) or
38,000 Btuh/ 11.13 kW cast iron "H"
style oven burner
• Snap action modulating oven ther-
mostat low to 500° F
• Porcelain oven interior, std. oven fits
sheet pans 18x26 in both directions
burner rated 32,000 Btuh/ 9.38 kW (natural gas) for space saver
oven, and 38,000 Btuh/11.13 kW (natural gas) for standard
oven Oven controlled by even bake, fast recovery snap action
modulating oven thermostat. Available with convection oven
in lieu of standard oven or storage base in lieu of oven(s).
Enodis UK LTD
Swallowfield Way,
Hayes, Middlesex
UB3 1DQ ENGLAND
Telephone: 081-561-0433
Fax: 081-848-0041
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
 G48-G48RS
 G48-G48SS
 G48-G48LL
• Strong, keep-cool oven door handle
• Nickel plated oven rack and 3-posi-
tion removable oven rack guide
• Convection oven w/3 nickel plated
oven racks and removable rack
guides in lieu of standard oven w/
1/3HP 120v 60 Hz single phase fan
motor; change Suffix RS to CS

Optional Features:

 Convection oven motor 240v
50/60HZ single phase
 Snap action modulating griddle con-
trol 175° to 425° F
 Grooved griddle in 1/2 or full plate
section widths
 Hot top 12" (305mm) plate in lieu of
two open burners, manual valve con-
trolled w/18,000 Btuh/5.27 kW cast
iron "H" burner standard on left side
 Low profile 9-3/8" (238mm) back-
guard stainless steel front and sides
 Stainless steel back for high shelf,
low profile backguard or range
 Additional oven racks
 6" (152mm) swivel casters (4), w/front
locking, leveling or non-leveling
(specify)
 Flanged deck mount legs
 Stainless steel door for storage base
models, 12" or 24" wide
 Intermediate stainless steel shelf for
storage base models, 12" or 24" wide
 Celsius temperature dials
