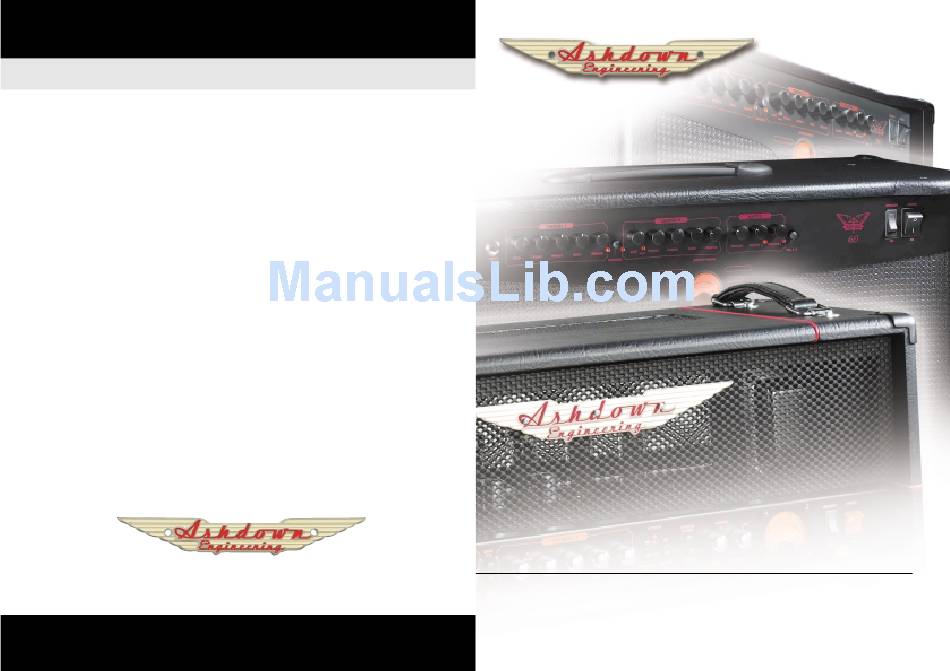

  • Page 1 O perating I nstructio ns Park Farm • Inworth • Colchester • Essex • CO5 9SH http://www.ashdownmusic.com Fallen Angel 40 Fallen Angel 60 Fallen Angel 180...
  • Page 2: Important Safety Instructions

    Important Safety Instructions BASIC PRECAUTIONS Thank you for purchasing your Ashdown Engineering Amplifier. If you live in the UK, please register WARNING When using electrical products, basic precautions should be followed, including the following: your purchase by completing this form and return it to the following address: Ashdown Engineering Ltd., Park Farm, Inworth, Colchester, Essex CO5 9SH...
  • Page 3: Grounding Instructions

    Fallen Angel 40w and 60w Combos and 60w Head: The Fallen Angel 40 and 60 combo (and 60 head) amplifiers are built on the same principles as the 180 Watt head and suit the same heavier guitar playing styles.They have been designed to produce the maximum bottom end possible from an open back cabinet.
  • Page 4: Front Panel Facilities

    Fro nt Panel Facilities FALLEN ANGEL 40, 60, 180 Fallen Angel 40w Combo Fallen Angel 60w Combo Fallen Angel 60w Head Fallen Angel 180w Head...
  • Page 5: Master Section

    Fro nt Panel Facilities FALLEN ANGEL 40, 60, 180 INPUT GAIN/CHANNEL 2 BOOST The single jack input socket perfectly matches passive guitars with its very high impedance but still retains Channel 2 Gain control has a vast range available (especially when used with the Channel 2 Boost facility).
  • Page 6: Rear Panel Facilities

    Fro nt/ Rear Panel Facilities Rear Panel Facilities FALLEN ANGEL 40, 60, 180 FALLEN ANGEL 40, 60, 180 MASTER 1/MASTER 2 the effects return signal is in parallel with the signal through the amplifier). Use the 4 front panel push Two selectable Master Level controls are provided for further flexibility.The push button to the side of...
  • Page 7 Rear Panel Facilities FALLEN ANGEL 40, 60, 180 Fallen Angel 40w Combo Fallen Angel 60w Combo Fallen Angel 60w Head Fallen Angel 180w Head...
  • Page 8: Specifications

    Output 60 2 x EL34 fixed bias Output power 60 Watts RMS into 4, 8 or 16 Ohms POWER REQUIREMENT Fallen Angel 40 = 80 Watts at rated supply voltage Fallen Angel 60 = 120 Watts at rated supply voltage...
