Windsor WAVE WAV Operating Instruction

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL:
Power Source: 115V Electric
Beginning with Serial No. 1000039213
86038510-AD 11/07/12
WAV
10125050
Operating Instructions (ENG)
Read instructions before operating the machine.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WAVE WAV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Windsor WAVE WAV

Summary of Contents for Windsor WAVE WAV

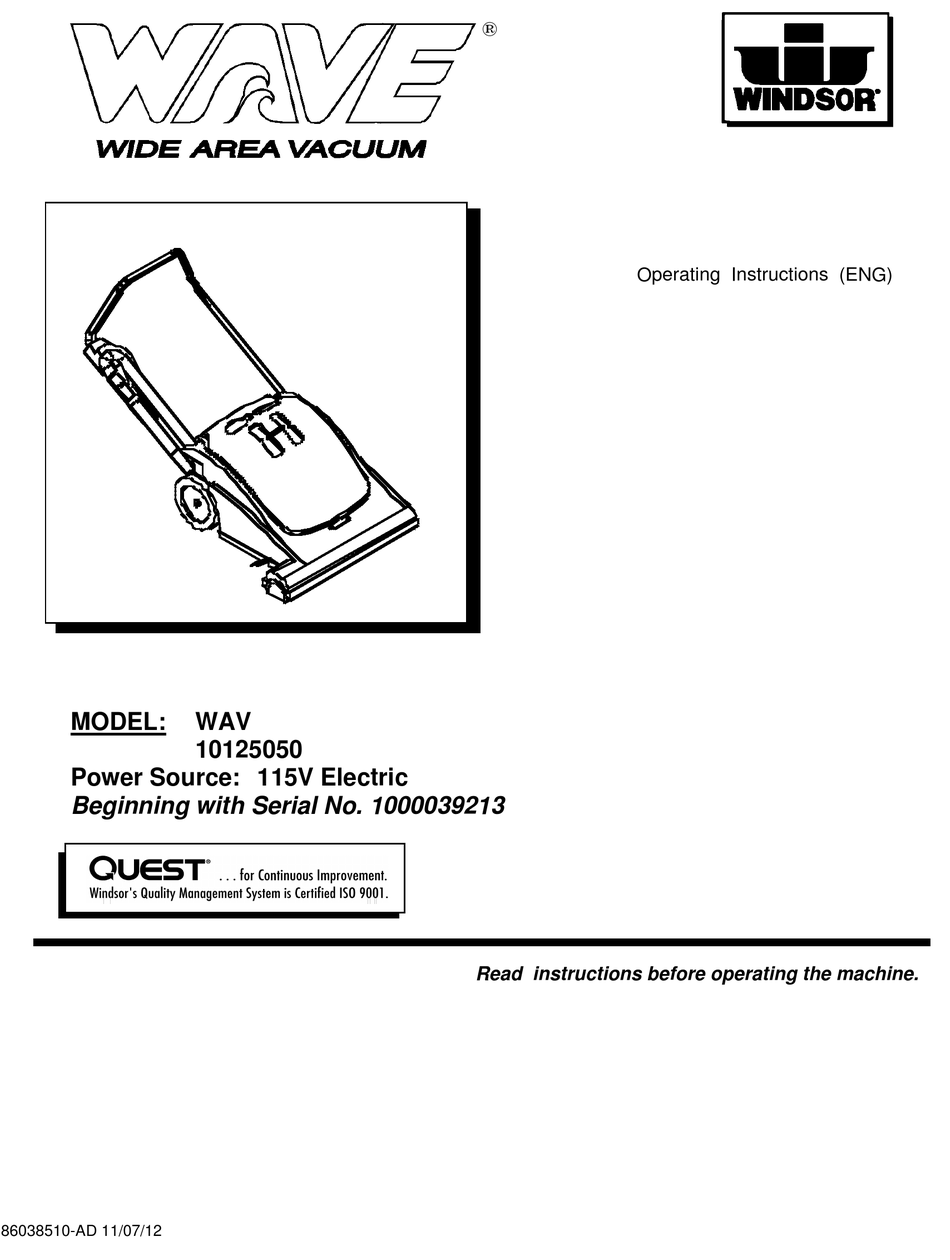

  • Page 1  Operating Instructions (ENG) MODEL: 10125050 Power Source: 115V Electric Beginning with Serial No. 1000039213 Read instructions before operating the machine. 86038510-AD 11/07/12...

  • Page 2: Machine Data Log/Overview

    MACHINE DATA LOG/OVERVIEW Warranty Registration Thank you for purchasing a Windsor product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. To register your product go to: www.windsorind.com/WarrantyRegistration.aspx...

  • Page 3: Table Of Contents

    Wiring Diagram..........4-3 Service Schedule..........4-4 GROUP PARTS LIST Brush and Drive Group.........5-1 Brush Height and Wheel Group....5-3 Vacuum Group..........5-5 Handle Group..........5-7 Lid/Decal Group..........5-9 Electrical Panel and Cover Group………….5-11 Suggested Spare Parts……………………...5-13 Warranty............. 5-14 WAV 86038510 05/15/07...

  • Page 4: How To Use This Manual

    They are Parts may be ordered from authorized Windsor listed in this general order: dealers. When placing an order for parts, the machine model and machine serial number are Belt/Brush Motor important.

  • Page 5: Important Safety Instructions

    Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not pull/run machine over cord. Keep cord away from heated surfaces. Connect to a properly grounded outlet. See Grounding Instructions. SAVE THESE INSTRUCTIONS WAV 86038510 05/15/07...

  • Page 6: Hazard Intensity Level

    Unless Operation Guide is Read and understood. In Flammable or Explosive areas. In areas with possible falling objects. WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts. WAV 86038510 05/15/07...

  • Page 7: Grounding Instructions

    The green colored rigid ear, lug, or wire extending from the adaptor must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adaptor is used, it must be held in place by a metal screw. WAV 86038510 05/15/07...

  • Page 8: Controls

    12 Dust bag cover. Raise to allow access to dust bag and vac motors. 13 Cloth dust bag. High filtration cloth bag with zipper opening to access paper bag. 14 Paper bag. Fits within cloth bag for clean and easy dust removal. WAV 86038510 05/15/07...

  • Page 9: Set Up

    NOTE: Attach strain relief/cord retainer to the power cord. 1. Make a loop in power cord approximately 12” from receptacle end. 2. Slide cord loop through slot in retainer arm. Pull slack cord back through slot to secure. Attach retainer to handle. WAV 86038510 05/15/07...

  • Page 10: Operation

    9. When finished vacuuming, coil the cable by hand by looping into about a 3 foot diameter, Hang coiled cable over handle. Wrap the end around the cable loop to secure. Return brush to storage position. WAV 86038510 05/15/07...

  • Page 11: Maintenance

    3/8" (9.5mm) long. brackets. W A R N I N G Vacuum Motor Carbon Brushes Replacement (Windsor) THE GREEN GROUND WIRE MUST ATTACH THE MOTOR TO THE POWER CORD FOR SAFE OPERATION. SEE THE End Cap WIRING DIAGRAM.

  • Page 12: Daily Maintenance

    The electrical cable must be well insulated, if the cable insulation is broken or frayed, repair or replace it immediately. Don’t take chances with electrical fire or shock. WAV 86038510 05/15/07...

  • Page 13: Wiring Diagram

    C.B. C.B. PRV NO. 57104 86010640 PRV NO. 87016 NO TERMINAL GROUND MICRO POST SWITCH COM TERMINAL POWER CORD 86006500 PRV NO. 70024 SWITCH BOX 86261570 86261570 SCREW PRV NO. 88349 PRV NO. 880253 EXHAUST HANDLE SCREEN WAV 86038510 05/29/12...

  • Page 14: Service Schedule

    Check vac motor carbon brushes Check for arcing and pitting on any electrical contacts; replace if found Inspect and clean vac shoe; check for dents and damage which would detrimentally effect vacuum and brush movement Check overall performance of machine WAV 86038510 05/15/07...
  • Page 15 THIS PAGE LEFT BLANK INTENTIONALLY WAV 86038510 05/15/07...

  • Page 16: Brush And Drive Group

    BRUSH AND DRIVE GROUP BRUSH ASSEMBLY -DETAIL- Vacuum Door Assembly BRUSH ASSEMBLY BRUSH DRIVE MOTOR ASSEMBLY VACUUM DOOR ASSEMBLY 24 A,B BRUSH BRUSH DRIVE MOTOR ASSEMBLY WAV 86038510 04/08/08...
  • Page 17 COLLAR, 3/8 SHAFT 86010680 87030 WASHER, 3/8 FLT NYL 86006280 66281 PEDAL WAND ACTIVATOR 86005060 51277 LINKAGE, WAND ACTIVATOR WAV 86003380 29202 DOOR, WAV FLAPPER 86270910 57042 NUT, 3/8 PUSH LK STL ZNPLT 86007690 73240 SPRING, EXT. 0.5OD X 2.25L X .063W...

  • Page 18: Brush Height And Wheel Group

    BRUSH HEIGHT AND WHEEL GROUP MAIN FRAME ASSEMBLY 7 17 WAV 86038510 07/24/07...
  • Page 19 WASHER, 3/4ID X 1.00 PLTD. 86010660 87025 WASHER, 1/4 LOCK EXT. STAR SS 86007740 73362 SPRING, EXT .5OD X 1.75L X .06W 86006920 70507 SCR, 3/8-16 X 3/4 HHCS GR5 PLTD. 86275570 70505 SCR, 1/4-20 X 1.0 HHCS PLTD. WAV 86038510 07/24/07...

  • Page 20: Vacuum Group

    VACUUM GROUP 7A, 7B (BRUSH SET) WAV 86038510 05/15/07...
  • Page 21 140164 BAG, CLOTH U19855 SERVICE 86135260 140211 BRUSH SET, VAC MOTOR ONLY SERVICE 86135320 140687 BRUSH SET, 120V VAC WINDSOR ONLY 86006770 70323 SCR, 10-32 X 1/4 PHTR PLTD. 86003510 34012 FILTER, VAC MOTOR 86086800 73461 SCREEN, 5/32 .032T 20GA AL 3X3...

  • Page 22: Handle Group

    HANDLE GROUP HANDLE ASSEMBLY - DETAIL - HANDLE ASSEMBLY WAV 86038510 05/15/07...
  • Page 23 86091470 140309 BAR ASM, BRUSH SWITCH 86069190 140310 BRKT, SWITCH MOUNTING 86198480 27371 CLIP, POWER CORD 86004490 41373 HOLSTER, WAV WAND 86246320 51142 LEVER, HANDLE LOCK 86238290 36104 GRIP, HANDLE ADJUSTMENT 86005630 57022 NUT, 3/8-16 THIN NYLOCK SS 86005710 57105...

  • Page 24: Lid/Decal Group

    LID/DECAL GROUP WAV 86038510 05/15/07...
  • Page 25 LABEL, WINDSOR LOGO 86000070 02083 BRUSH, 3" DUST 86274520 70233 SCR, #10 X 3/8 PH HI-LO PLTD 86002990 27744 CLIP, C 1-1/2 PLASTIC 86283600 02085 BRUSH, UPHOLSTERY 86000080 02084 TOOL, 5" UPHOLSTERY 86000160 02292 TOOL, 11" PLASTIC CREVICE WAV 86038510 11/11/11 5-10...

  • Page 26: Electrical Panel And Cover Group

    ELECTRICAL PANEL AND COVER GROUP NUT SUPPLIED WITH SWITCH NUTS SUPPLIED WITH CIRCUIT BREAKER WAV 86038510 05/15/07 5-11...
  • Page 27 86006500 70024 SCR, #8 X 1/2 SHT METAL SS 86236080 34326 FILTER, EXHAUST 86063720 27738 COVER, REAR 86172770 70610 SCR, 1/4-20 X 1.0 BLK THUMB 86230050 140239 BREAKER, 3.0A THERMAL CIR. 86245040 50279 LABEL, GROUND SYMBOL WAV 86038510 05/15/07 5-12...

  • Page 28: Suggested Spare Parts

    BAGS, PAPER (PKG. OF 10) 86003510 34012 FILTER, VAC MOTOR 86236040 34309 FILTER, EXHAUST 86001200 140164 BAG, CLOTH 86135260 140211 BRUSH SET, VAC MOTOR 86001250 140212 BRUSH SET, 90 VDC 1/4HP MOTOR 86135360 14340 BRUSH SET, 53616/53617 WAV 86038510 05/15/07 5-13...
