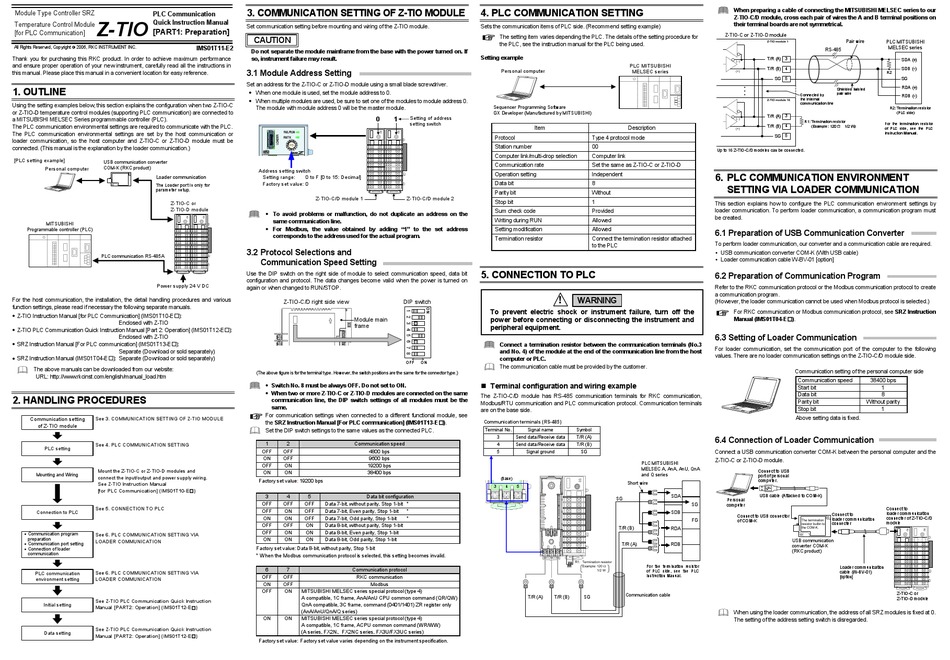

RKC INSTRUMENT Z-TIO PLC Communication Quick Instruction Manual

Module Type Controller SRZ
PLC Communication
Z-TIO Quick Instruction Manual
Temperature Control Module
[PART1: Preparation]
[for PLC Communication]
All Rights Reserved, Copyright  2006, RKC INSTRUMENT INC.
Thank you for purchasing this RKC product. In order to achieve maximum performance
and ensure proper operation of your new instrument, carefully read all the instructions in
this manual. Please place this manual in a convenient location for easy reference.
1. OUTLINE
Using the setting examples below, this section explains the configuration when two Z-TIO-C
or Z-TIO-D temperature control modules (supporting PLC communication) are connected to
a MITSUBISHI MELSEC Series programmable controller (PLC).
The PLC communication environmental settings are required to communicate with the PLC.
The PLC communication environmental settings are set by the host communication or
loader communication, so the host computer and Z-TIO-C or Z-TIO-D module must be
connected. (This manual is the explanation by the loader communication.)
[PLC setting example]
USB communication converter
Personal computer COM-K (RKC product)
Loader communication
The Loader port is only for
parameter setup.
Z-TIO-C or
Z-TIO-D module
MITSUBISHI
Programmable controller (PLC)
PLC communication RS-485A
Power supply 24 V DC
For the host communication, the installation, the detail handling procedures and various
function settings, please read if necessary the following separate manuals.
• Z-TIO Instruction Manual [for PLC Communication] (IMS01T10-E ):
Enclosed with Z-TIO
• Z-TIO PLC Communication Quick Instruction Manual [Part 2: Operation] (IMS01T12-E ):
Enclosed with Z-TIO
• SRZ Instruction Manual [For PLC communication] (IMS01T13-E ):
Separate (Download or sold separately)
•
SRZ Instruction Manual (IMS01T04-E ): Separate (Download or sold separately)
The above manuals can be downloaded from our website:
URL: http://www.rkcinst.com/english/manual_load.htm
2. HANDLING PROCEDURES
Communication setting See 3. COMMUNICATION SETTING OF Z-TIO MODULE
of Z-TIO module
See 4. PLC COMMUNICATION SETTING
PLC setting
Mount the Z-TIO-C or Z-TIO-D modules and
Mounting and Wiring
connect the input/output and power supply wiring.
See Z-TIO Instruction Manual
[for PLC Communication] (IMS01T10-E )
See 5. CONNECTION TO PLC
Connection to PLC
• Communication program
See 6. PLC COMMUNICATION SETTING VIA
preparation
LOADER COMMUNICATION
• Communication port setting
• Connection of loader
communication
See 6. PLC COMMUNICATION SETTING VIA
PLC communication
environment setting
LOADER COMMUNICATION
See Z-TIO PLC Communication Quick Instruction
Initial setting
Manual [PART2: Operation] (IMS01T12-E )
See Z-TIO PLC Communication Quick Instruction
Data setting
Manual [PART2: Operation] (IMS01T12-E )
3. COMMUNICATION SETTING OF Z-TIO MODULE
Set communication setting before mounting and wiring of the Z-TIO module.
CAUTION
IMS01T11-E2
Do not separate the module mainframe from the base with the power turned on. If
so, instrument failure may result.
3.1 Module Address Setting
Set an address for the Z-TIO-C or Z-TIO-D module using a small blade screwdriver.
• When one module is used, set the module address to 0.
• When multiple modules are used, be sure to set one of the modules to module address 0.
The module with module address 0 will be the master module.
0
Address setting switch
Setting range: 0 to F [0 to 15: Decimal]
Factory set value: 0
Z-TIO-C/D module 1
• To avoid problems or malfunction, do not duplicate an address on the
same communication line.
• For Modbus, the value obtained by adding "1" to the set address
corresponds to the address used for the actual program.
3.2 Protocol Selections and
Communication Speed Setting
Use the DIP switch on the right side of module to select communication speed, data bit
configuration and protocol. The data changes become valid when the power is turned on
again or when changed to RUN/STOP.
Z-TIO-C/D right side view
Module main
frame
(The above figure is for the terminal type. However, the switch positions are the same for the connector type.)
• Switch No. 8 must be always OFF. Do not set to ON.
• When two or more Z-TIO-C or Z-TIO-D modules are connected on the same
communication line, the DIP switch settings of all modules must be the
same.
For communication settings when connected to a different functional module, see
the SRZ Instruction Manual [For PLC communication] (IMS01T13-E ).
Set the DIP switch settings to the same values as the connected PLC.
1 2 Communication speed
OFF OFF 4800 bps
ON OFF 9600 bps
OFF ON 19200 bps
ON ON 38400 bps
Factory set value: 19200 bps
3 4 5 Data bit configuration
OFF OFF OFF Data 7-bit, without parity, Stop 1-bit *
OFF ON OFF Data 7-bit, Even parity, Stop 1-bit
ON ON OFF Data 7-bit, Odd parity, Stop 1-bit
OFF OFF ON Data 8-bit, without parity, Stop 1-bit
OFF ON ON Data 8-bit, Even parity, Stop 1-bit
ON ON ON Data 8-bit, Odd parity, Stop 1-bit
Factory set value: Data 8-bit, without parity, Stop 1-bit
* When the Modbus communication protocol is selected, this setting becomes invalid.
6 7 Communication protocol
OFF OFF RKC communication
ON OFF Modbus
OFF ON MITSUBISHI MELSEC series special protocol (type 4)
A compatible, 1C frame, AnA/AnU CPU common command (QR/QW)
QnA compatible, 3C frame, command (0401/1401) ZR register only
(AnA/AnU/QnA/Q series)
ON ON MITSUBISHI MELSEC series special protocol (type 4)
A compatible, 1C frame, ACPU common command (WR/WW)
(A series, FX2N、FX2NC series, FX3U/FX3UC series)
Factory set value: Factory set value varies depending on the instrument specification.
4. PLC COMMUNICATION SETTING
Sets the communication items of PLC side. (Recommend setting example)
The setting item varies depending the PLC. The details of the setting procedure for
the PLC, see the instruction manual for the PLC being used.
Setting example
Personal computer
Sequencer Programming Software
GX Developer (Manufactured by MITSUBISHI)
1 Setting of address
setting switch
Item
Protocol
Station number
Computer link/multi-drop selection
Communication rate
Operation setting
Data bit
Parity bit
Z-TIO-C/D module 2
Stop bit
Sum check code
Writing during RUN
Setting modification
Termination resistor
5. CONNECTION TO PLC
!
DIP switch
To prevent electric shock or instrument failure, turn off the
power before connecting or disconnecting the instrument and
peripheral equipment.
Connect a termination resistor between the communication terminals (No.3
and No. 4) of the module at the end of the communication line from the host
computer or PLC.
OFF ON
The communication cable must be provided by the customer.
Terminal configuration and wiring example
The Z-TIO-C/D module has RS-485 communication terminals for RKC communication,
Modbus/RTU communication and PLC communication protocol. Communication terminals
are on the base side.
Communication terminals (RS-485)
Terminal No. Signal name
3 Send data/Receive data
4 Send data/Receive data
5 Signal ground
(Base)
3 4 5
*
*
T/R (A) T/R (B)
When preparing a cable of connecting the MITSUBISHI MELSEC series to our
Z-TIO-C/D module, cross each pair of wires the A and B terminal positions on
their terminal boards are not symmetrical.
Z-TIO-C or Z-TIO-D module
(−)
PLC MITSUBISHI
MELSEC series
(+)
(−)
Description
(+)
Type 4 protocol mode
00
Up to 16 Z-TIO-C/D modules can be connected.
Computer link
Set the same as Z-TIO-C or Z-TIO-D
Independent
6. PLC COMMUNICATION ENVIRONMENT
8
SETTING VIA LOADER COMMUNICATION
Without
1
This section explains how to configure the PLC communication environment settings by
loader communication. To perform loader communication, a communication program must
Provided
be created.
Allowed
Allowed
6.1 Preparation of USB Communication Converter
Connect the termination resistor attached
To perform loader communication, our converter and a communication cable are required.
to the PLC
USB communication converter COM-K (With USB cable)
Loader communication cable W-BV-01 [option]
6.2 Preparation of Communication Program
Refer to the RKC communication protocol or the Modbus communication protocol to create
a communication program.
WARNING
(However, the loader communication cannot be used when Modbus protocol is selected.)
For RKC communication or Modbus communication protocol, see SRZ Instruction
Manual (IMS01T04-E ).
6.3 Setting of Loader Communication
For loader communication, set the communication port of the computer to the following
values. There are no loader communication settings on the Z-TIO-C/D module side.
Symbol
T/R (A)
6.4 Connection of Loader Communication
T/R (B)
SG Connect a USB communication converter COM-K between the personal computer and the
Z-TIO-C or Z-TIO-D module.
PLC MITSUBISHI
MELSEC A, AnA, AnU, QnA
and Q series
Short wire
SDA
SG
Personal
SG
computer
SDB
Connect to USB connector
FG
of COM-K
T/R (B) RDA
T/R (A) RDB
R1: Termination resistor
Example: 120 Ω For the termination resistor
1/2 W of PLC side, see the PLC
Instruction Manual.
Communication cable
SG
When using the loader communication, the address of all SRZ modules is fixed at 0.
The setting of the address setting switch is disregarded.
Pair wire PLC MITSUBISHI
Z-TIO module 1
MELSEC series
RS-485
T/R (A) 3
SDA (+)
T/R (B) 4 SDB (−)
R2
SG 5 SG
RDA (+)
Shielded twisted
pair wire
Connected by RDB (−)
the internal
Z-TIO module 16
communication line
R2: Termination resistor
(PLC side)
T/R (A) 3
R1: Termination resistor
For the termination resistor
T/R (B) 4 (Example: 120 Ω 1/2 W)
of PLC side, see the PLC
Instruction Manual.
SG 5
Communication setting of the personal computer side
Communication speed 38400 bps
Start bit 1
Data bit 8
Parity bit Without parity
Stop bit 1
Above setting data is fixed.
Connect to USB
port of personal
computer.
USB cable (Attached to COM-K)
Connect to
Connect to loader communication
connecter of Z-TIO-C/D
loader communication
The termination
module
resistor builtin to connecter
the COM-K.
USB communication
converter COM-K
(RKC product)
Loader communication
cable (W-BV-01)
[option]
Z-TIO-C or
Z-TIO-D module
