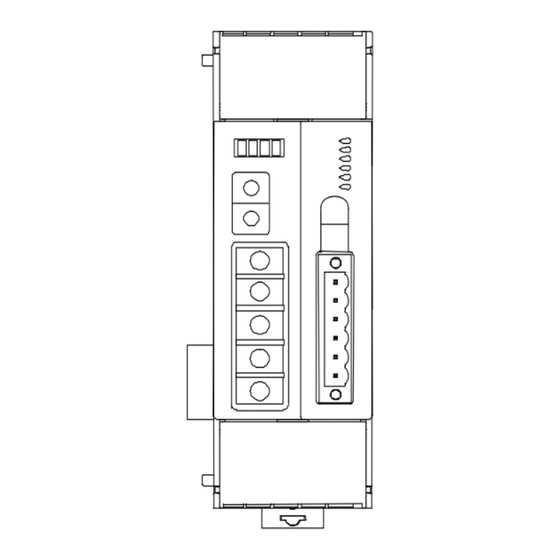

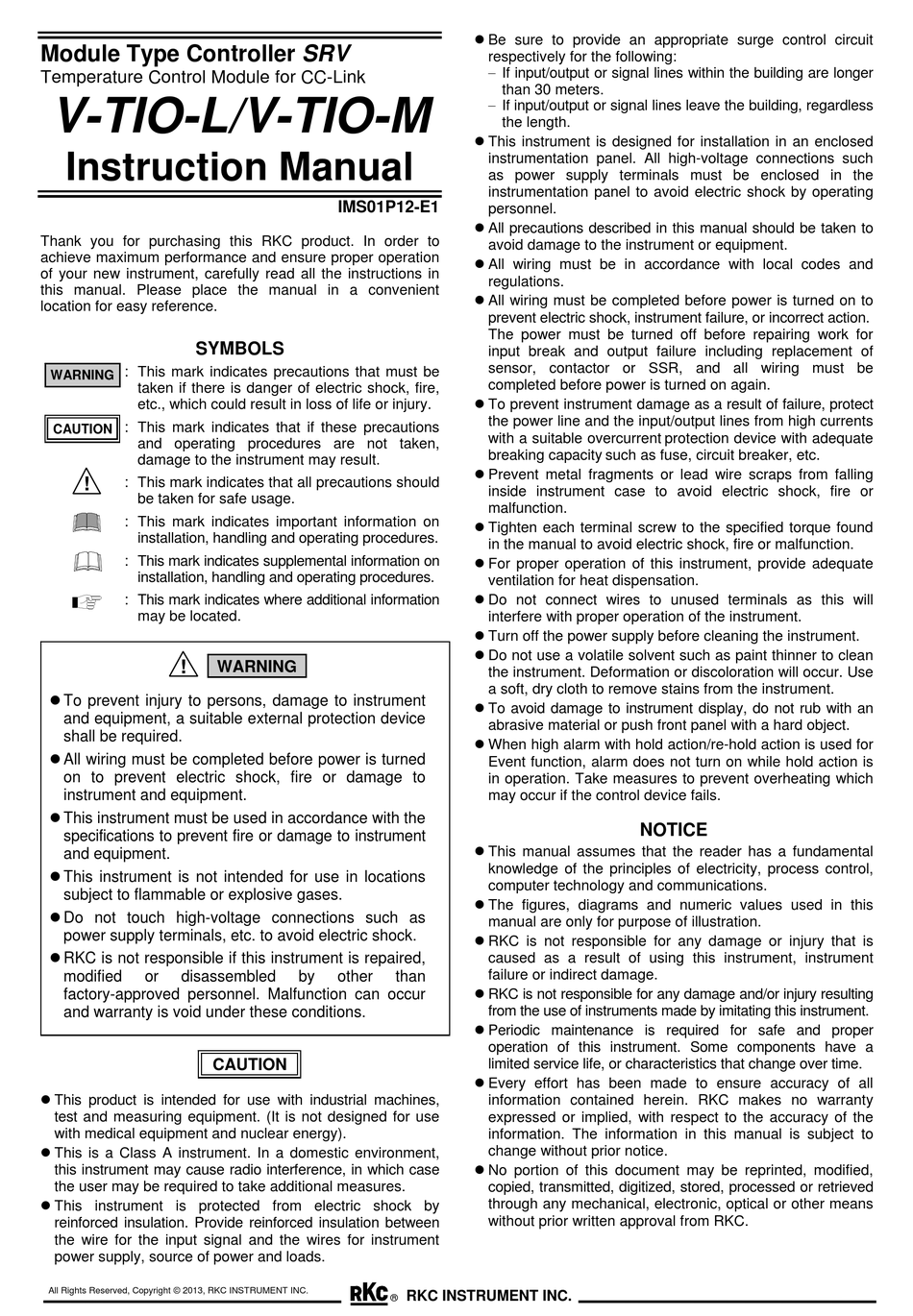

RKC INSTRUMENT V-TIO-L Instruction Manual

Module Type Controller SRV
Temperature Control Module for CC-Link
V-TIO-L/V-TIO-M
Instruction Manual
Thank you for purchasing this RKC product. In order to
achieve maximum performance and ensure proper operation
of your new instrument, carefully read all the instructions in
this manual. Please place the manual in a convenient
location for easy reference.
SYMBOLS
: This mark indicates precautions that must be
WARNING
taken if there is danger of electric shock, fire,
etc., which could result in loss of life or injury.
: This mark indicates that if these precautions
CAUTION
and operating procedures are not taken,
damage to the instrument may result.
! : This mark indicates that all precautions should
be taken for safe usage.
: This mark indicates important information on
installation, handling and operating procedures.
: This mark indicates supplemental information on
installation, handling and operating procedures.
: This mark indicates where additional information
may be located.
!
 To prevent injury to persons, damage to instrument
and equipment, a suitable external protection device
shall be required.
 All wiring must be completed before power is turned
on to prevent electric shock, fire or damage to
instrument and equipment.
 This instrument must be used in accordance with the
specifications to prevent fire or damage to instrument
and equipment.
 This instrument is not intended for use in locations
subject to flammable or explosive gases.
 Do not touch high-voltage connections such as
power supply terminals, etc. to avoid electric shock.
 RKC is not responsible if this instrument is repaired,
modified or disassembled
factory-approved personnel. Malfunction can occur
and warranty is void under these conditions.
CAUTION
 This product is intended for use with industrial machines,
test and measuring equipment. (It is not designed for use
with medical equipment and nuclear energy).
 This is a Class A instrument. In a domestic environment,
this instrument may cause radio interference, in which case
the user may be required to take additional measures.
 This instrument is protected from electric shock by
reinforced insulation. Provide reinforced insulation between
the wire for the input signal and the wires for instrument
power supply, source of power and loads.
All Rights Reserved, Copyright  2013, RKC INSTRUMENT INC.
IMS01P12-E1
WARNING
by other
 Be sure to provide an appropriate surge control circuit
respectively for the following:
 If input/output or signal lines within the building are longer
than 30 meters.
 If input/output or signal lines leave the building, regardless
the length.
 This instrument is designed for installation in an enclosed
instrumentation panel. All high-voltage connections such
as power supply terminals must be enclosed in the
instrumentation panel to avoid electric shock by operating
personnel.
 All precautions described in this manual should be taken to
avoid damage to the instrument or equipment.
 All wiring must be in accordance with local codes and
regulations.
 All wiring must be completed before power is turned on to
prevent electric shock, instrument failure, or incorrect action.
The power must be turned off before repairing work for
input break and output failure including replacement of
sensor, contactor or SSR, and all wiring must be
completed before power is turned on again.
 To prevent instrument damage as a result of failure, protect
the power line and the input/output lines from high currents
with a suitable overcurrent protection device with adequate
breaking capacity such as fuse, circuit breaker, etc.
 Prevent metal fragments or lead wire scraps from falling
inside instrument case to avoid electric shock, fire or
malfunction.
 Tighten each terminal screw to the specified torque found
in the manual to avoid electric shock, fire or malfunction.
 For proper operation of this instrument, provide adequate
ventilation for heat dispensation.
 Do not connect wires to unused terminals as this will
interfere with proper operation of the instrument.
 Turn off the power supply before cleaning the instrument.
 Do not use a volatile solvent such as paint thinner to clean
the instrument. Deformation or discoloration will occur. Use
a soft, dry cloth to remove stains from the instrument.
 To avoid damage to instrument display, do not rub with an
abrasive material or push front panel with a hard object.
 When high alarm with hold action/re-hold action is used for
Event function, alarm does not turn on while hold action is
in operation. Take measures to prevent overheating which
may occur if the control device fails.
 This manual assumes that the reader has a fundamental
knowledge of the principles of electricity, process control,
computer technology and communications.
 The figures, diagrams and numeric values used in this
manual are only for purpose of illustration.
 RKC is not responsible for any damage or injury that is
caused as a result of using this instrument, instrument
failure or indirect damage.
than
 RKC is not responsible for any damage and/or injury resulting
from the use of instruments made by imitating this instrument.
 Periodic maintenance is required for safe and proper
operation of this instrument. Some components have a
limited service life, or characteristics that change over time.
 Every effort has been made to ensure accuracy of all
information contained herein. RKC makes no warranty
expressed or implied, with respect to the accuracy of the
information. The information in this manual is subject to
change without prior notice.
 No portion of this document may be reprinted, modified,
copied, transmitted, digitized, stored, processed or retrieved
through any mechanical, electronic, optical or other means
without prior written approval from RKC.
RKC INSTRUMENT INC.
®
NOTICE
