Summary of Contents for JBL SoundFactor SF12Mi
-
Page 1: Installation Guide
Installation Guide For SF12Mi and SF15i Models Only Part Number: 351940-001... -
Page 2: Table Of Contents
Who Pays For What? JBL will pay all labor and material expenses for all repairs covered by this warranty. Please be sure to save the original shipping cartons because a charge will be made if replacement cartons are requested. Payment of shipping charges is discussed in the next section of this warranty. -
Page 3: Working Load Limit
Improper installation may result in damage, injury or death. The working load limit (WLL) of any JBL SoundFactor Install loudspeaker is maintained as long as no more than one loudspeaker is suspended by a minimum of two primary suspension points with no addi- tional load placed on the loudspeaker enclosure. -
Page 4: General Hardware
Sources for specialized rigging hardware may be found on page 11. Proper Use of Forged Shoulder Eyebolt The JBL SoundFactor Install loudspeakers are supplied with three forged M10-1.5 x 35 mm shoulder eye- bolts with appropriate ratings and certified standards compliance, for use in overhead suspension appli- cations. -
Page 5: Proper Sling Termination
The slings described herein are "suspension slings" and are different from "lifting slings" as defined by government regulatory bodies. Do NOT use hardware chain. The JBL SoundFactor Install loudspeakers must be used in static suspension applications only. Wire rope suspension slings are suggested for all installations requiring suspension of the JBL SoundFactor Install loudspeakers. -

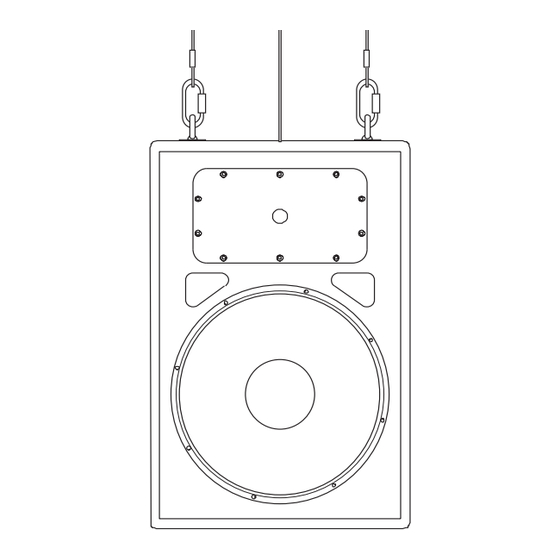

Page 6: Rigging Connections
Rigging Connections Some installations require the use of a removable connection between the structure and the loudspeak- er. Hardware commonly used for these applications includes: Quick Link Screw Pin Anchor Shackle Used in-line with only one wire Used in-line or at an angle up to rope per end. -
Page 7: Attachment To Structures
Attachment to Structures A licensed Professional Engineer must approve the placement and method of attachment to the structure prior to the installation of any overhead object. The following performance standards should be provided to the Professional Engineer for design purposes; Uniform Building Code as applica- ble, Municipal Building Code as applicable, Seismic Code as applicable, and a minimum of a 5:1 design factor throughout the suspension system. -
Page 8: Attachment To Structures
Attachment to Structures Angle Beam Wood Beam OSR Fitting Angle Beam Clamp (custom) grade 8 or B7 fasteners hardware as provided Concrete Beam Round Beam OSR Fitting Wire Rope Sling (standard) concrete anchors sling and SPA shackle Brick Wall Metal Stud Mounting Plate (standard/custom) Mounting Plate (standard/custom) concrete anchors with epoxy... -
Page 9: Technical Specifications - Sf12Mi
19.5 kg (43 lbs.) Shipping Weight: 22.0 kg (48.5 lbs.) High Frequency Driver: JBL 2412 1" exit compression driver mounted on Progressive Transition™ Waveguide Low Frequency Driver: JBL M112-8 Input Connectors: Neutrik® Speakon® NL-4 (x1); 1/4" TS phone jack (x1); parallel Enclosure Construction: 19 mm (3/4 in) MDF (Medium Density Fiberboard);... -
Page 10: Technical Specifications - Sf15I
27.4 kg (60.5 lbs.) Shipping Weight: 30.4 kg (67.0 lbs.) High Frequency Driver: JBL 2412, 1" exit compression driver mounted on Progressive Transition™ Waveguide Low Frequency Driver: JBL M115-8A Input Connectors: Parallel Neutrik® Speakon® NL-4 (x1); 1/4" TS phone jack (x1) Enclosure Construction: 19 mm (3/4 in) MDF (Medium Density Fiberboard);... -
Page 11: Product Dimensions
Product Dimensions SF12Mi 7.8 in 198 mm 60º 12.7 in 323 mm 8.4 in 213 mm 3.9 in 99 mm 2x O .45 in 12 in O .45 in 11.4 mm 305 mm 1.8 in 11.4 mm 45.7 mm 15.5 in 12.7 in... -
Page 12: Inspection, Maintenance And Liability
All implied warranties, including warranties of merchantability and fitness for particular purpose, are limited in duration to the length of the warranty. JBL's liability shall in no event exceed the cost of any defective product and shall not include incidental or consequential damages of any kind, even if JBL has been advised of the possibility. Some states do not allow limitations on how long certain warranties last and/or do not allow exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.
