QuickSpecs
Overview

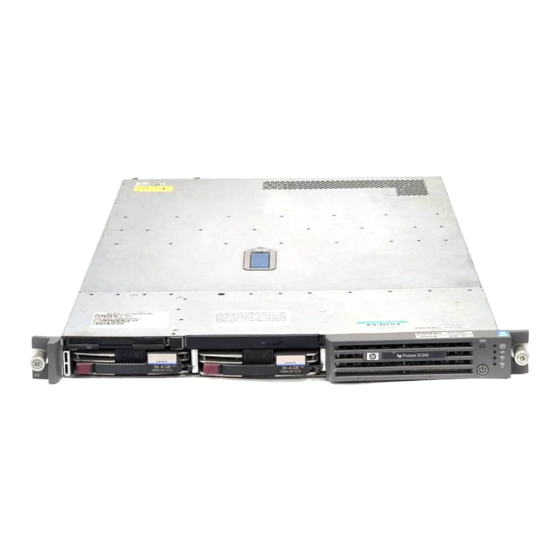

HP ProLiant DL360 Generation 3 (G3)
1. Tool-free cover
2. Processor (one shown, two supported)
3. 1.44-MB Diskette drive
4. 24x CD-ROM drive (low-profile)
What's New
Intel® Xeon 3.2 GHz/533 Processor (dual capability) with 2-MB L3 cache
Intel Xeon 2.8 GHz/533 Processor (dual capability) with 1-MB L3 cache
At A Glance
Leading the scale out environment with Integrated Lights-Out management, the DL360 offers essential availability
features and concentrated 1U compute power for spaced constrained internet and data center environments
Integrated Lights-Out (iLO) remote management embedded on every DL360
Up to 2 Intel Xeon 3.2 GHz/2MB, 3.2 GHz/1MB, 3.06 GHz/1MB, 3.06 GHz/512k, 2.8 GHz/1MB or 2.8 GHz/512k
Processors with 533MHz front side bus
1U Rack form factor (1.75")
ServerWorks GC -LE Chipset
Embedded Smart Array 5i Plus RAID Controller with optional BBWC
Two full length 64-bit/100MHz PCI-X slots (one slot available if redundant power supply is installed)
325-Watt hot plug power supply, with optional 1+1 redundancy
Up to 8GB of 2-way interleaved PC2100 DDR SDRAM running at 266MHz, Advanced ECC memory standard
Two NC7781 PCI-X Gigabit NICs (embedded)
Supports up to two 1" Ultra320 (only) hot plug hard drives
Exceptional serviceability with optional sliding rails, cable management and in-rack, tool-free access
ProLiant Essential Foundation Pack standard, including SmartStart, Insight Manager, ROM Based Setup Utility
(RBSU), and Subscriber's Choice
Protected by HP Services, including a three-year, next business day on-site limited global warranty and extended Pre-
Failure Warranty which covers processors, memory, and hard drives - Certain restrictions and exclusions apply.
Consult the HP Customer Support Center at 1-800-345-1518 for details.
DA - 11504 Worldwide QuickSpecs — Version 38 — 12.13.2004
HP ProLiant DL360 Generation 3
5. Two 1" Wide Ultra 320 SCSI Hot Plug Drive Bays
6. Rack side rails
7. 2 full length PCI-X slots
8. Memory slots
Page 1
