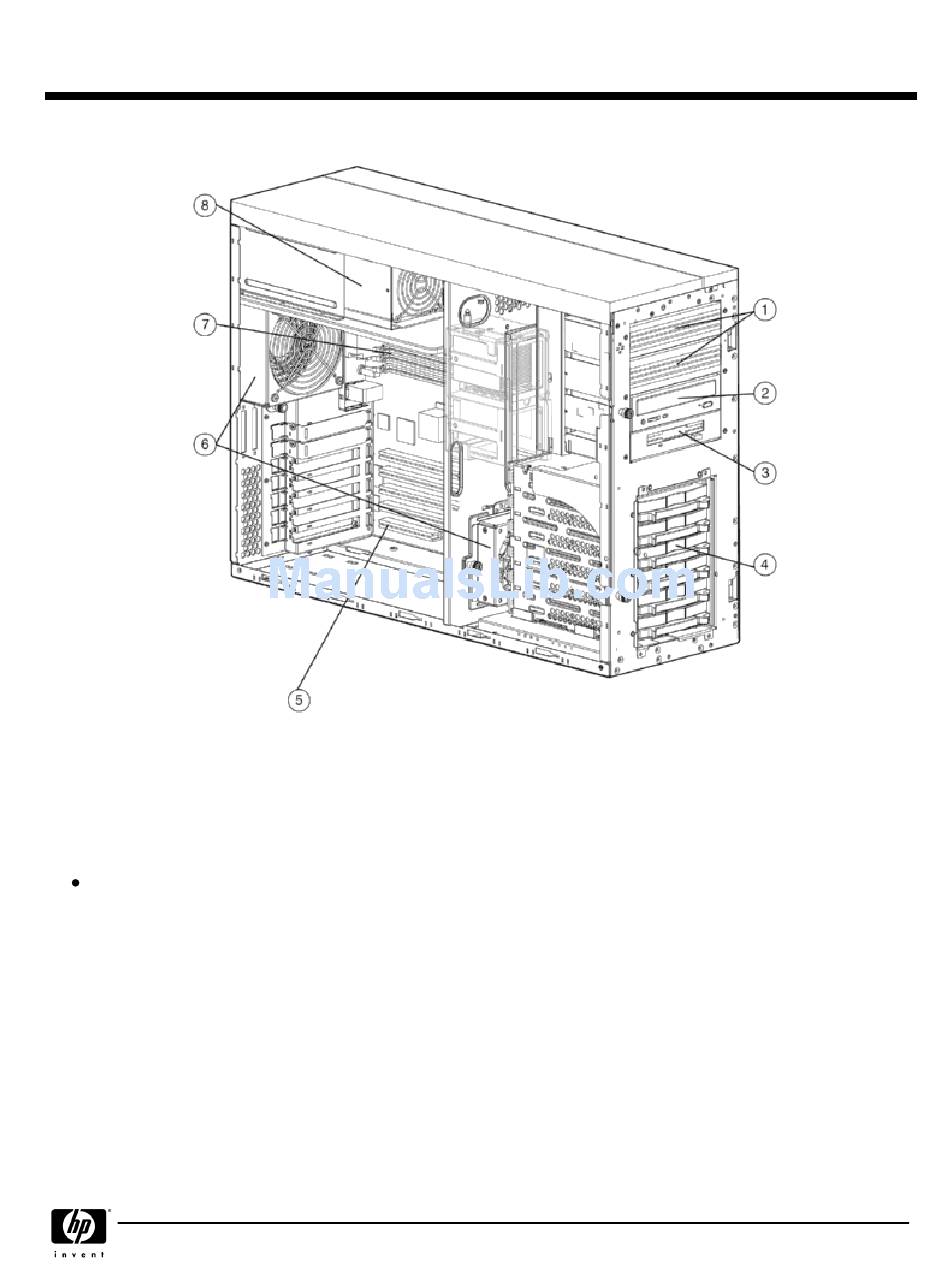

QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Overview 1. Two Removable Media Bays 6. System fan 2. 48X Max IDE (ATAPI) CD-ROM Drive 7. Four DIMM sockets for up to 8GB of memory, optionally interleaved 3.
Page 2
ROM based setup utility (RBSU) support and, redundant ROM Insight Manager, SmartStart, and Automatic Server Recovery (ASR-2) Protected by HP Services, including a three-year, next business day, on-site, limited global warranty and extended Pre-Failure Warranty. DA - 11430 Worldwide — Version 38 — February 13, 2004...
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Standard Features Processor Processor Processor Processor Intel Xeon Processor 3.06 GHz/533-512KB One of the following Intel Xeon Processor 2.8 GHz/533-512KB depending on Model Intel Xeon Processor 2.4 GHz/400-512KB...
Page 4
Square hole racks from 27”- 32” deep (including Compaq/HP 7000, 9000, 10000 and H9 series) Square or round hole racks, from 24”- 35” deep (including HP Rack System /E and HP Systems, with an adjustment) Telco racks with 3rd part option kit from Rack Solutions http://www.racksolutions.com/compaq/products.htm...
Page 5
Software notification of problems before those problems result in unplanned downtime or reduced productivity. Insight Manager 7 and HP Systems Insight Manager are both easy to set up work with the Insight Management Agents, integrated Light-Out and Remote Insight Light- Out Edition, and Version Control Agents to deliver robust fault, configuration, and asset management as well as remote administration.
Page 6
2 fans ship standard, 2 fans total supported (does not include power supply fans) Required Cabling Required Cabling Required Cabling Required Cabling For required cabling information, refer to the HP Web site at http://www.hp.com/servers/proliantML350. OS Support OS Support OS Support OS Support Microsoft Windows NT®...
Page 7
Rack Solutions. http://www.racksolutions.com/hp. HP Factory Express HP Factory Express HP Factory Express HP Factory Express HP Factory Express gives you the flexibility to choose from a full menu of factory capabilities all in one manufacturing Capabilities Capabilities Capabilities Capabilities facility, in one process, with one touch giving you full control and access to HP's World class manufacturing facility anytime.
Page 8
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Models ML350T03 X3.06- ML350T03 X3.06- ML350T03 X3.06- ML350T03 X3.06- Processor(s) Processor(s) Processor(s) Processor(s) (1) Intel Xeon Processor 3.06 GHz Processor standard (up to 2 supported)
Page 9
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Models ML350T03 X2.8- ML350T03 X2.8- ML350T03 X2.8- ML350T03 X2.8- Processor(s) Processor(s) Processor(s) Processor(s) (1) Intel Xeon Processor 2.8 GHz Processor standard (up to 2 supported)
Page 10
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Models ML350T03 X2.4- ML350T03 X2.4- ML350T03 X2.4- ML350T03 X2.4- Processor(s) Processor(s) Processor(s) Processor(s) (1) Intel Xeon Processor 2.4 GHz Processor standard (up to 2 supported)
Page 11
Services NOTE: NOTE: NOTE: NOTE: HP identifies current levels of NetServer support, services, and management. This service helps maximize customer's ability to add ProLiant platforms into their current environment. HP TopTools to Insight Manager 7 installation and startup service 304163-002...
Page 12
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Options Processors Processors Processors Processors Intel Xeon 3.06 GHz-512KB Processor Option Kit 257916-B21 NOTE: NOTE: NOTE: NOTE: The 3.06 GHz processor option kit (PN 257916-B21) supports ProLiant ML350 G3 systems with 533 MHz front side bus only.
Page 13
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Options Hard Drives Hard Drives Hard Drives Hard Drives Ultra320 – Universal Hot Plug Ultra320 – Universal Hot Plug Ultra320 –...
Page 14
NOTE: NOTE: NOTE: This 256-MB Battery Backed Cache Module supports the Smart Array 5300 series controllers, HP StorageWorks Modular Smart Array 1000 and the HP StorageWorks Modular Smart Array 500. 256MB DDR, Battery-Backed Cache Upgrade Kit for SA-6400 273913-B21 NOTE:...
Page 16
HP StorageWorks DAT 72 Tape Drive for ProLiant, Internal (Carbon) WW Q1525A HP StorageWorks DAT 72 Tape Drive for Open Connect, Internal (Carbon) WW Q1522A HP StorageWorks DAT 72 Tape Drive for ProLiant, Internal Hot Plug (Carbon) WW Q1529A NOTE: NOTE:...
Page 17
Tape Autoloaders HP StorageWorks 1/8 Autoloader HP StorageWorks 1/8 Autoloader HP StorageWorks 1/8 Autoloader HP StorageWorks 1/8 Autoloader HP StorageWorks 1/8 Autoloader, Tabletop, Ultrium 230 C9572CB HP StorageWorks 1/8 Autoloader, Tabletop, DLT VS80 C9264CB HP StorageWorks 1/8 Autoloader, Rackmount kit...
Page 18
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Options including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at: http://h18000.www1.hp.com/products/quickspecs/11438_na/11438_na.HTML (North America) http://h18000.www1.hp.com/products/quickspecs/11438_div/11438_div.HTML...
Page 20
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Options MSL Tape Library Rack Mount Kit 304826-B21 MSL5026 Rack Mount Kit, ProLiant Servers 231894-B22 MSL e1200-160 External Fibre Channel...
Page 21
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Options StorageWorks MSL6000 and MSL5000 departmental libraries StorageWorks MSL6000 and MSL5000 departmental libraries StorageWorks MSL6000 and MSL5000 departmental libraries StorageWorks MSL6000 and MSL5000 departmental libraries MSL5060L1 –...
Page 22
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Options MSL5026S2 – SDLT160 based mid-range library up to 2 drives and 26 slots MSL5026S2 – SDLT160 based mid-range library up to 2 drives and 26 slots MSL5026S2 –...
Page 23
(Worldwide) Cluster Options Cluster Options Cluster Options Cluster Options HP Serviceguard for Linux ProLiant Cluster A.11.14 for Red Hat EL 2.1 (2 node license cluster kit) 305199-B22 NOTE: NOTE: NOTE: NOTE: Kit includes 2 licenses, documentation and an Ethernet crossover cable.
Page 24
HP UPS Model T700 (700VA, 500 Watt), High Voltage (Int'l) 204015-B31 HP UPS Model T700 (700VA, 500 Watt), Low Voltage (Japan) 204015-291 HP UPS T1000 XR (1000 VA, 700 Watts), Low Voltage (NA) 204155-001 HP UPS T1000 XR (1000 VA, 700 Watts), High Voltage (Int'l) 204155-B31...
Page 25
NOTE: The UPS R12000 XR has a hardwired input and output. NOTE: NOTE: NOTE: NOTE: HP UPS R6000 has a hardwired input; the UPS R12000 XR has a hardwired input and output connection. UPS Options UPS Options SNMP Serial Port Card...
Page 26
HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Options HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC) (NA, Japan) 252663-D71 Modular PDUs 1U/0U Modular PDUs 1U/0U Modular PDUs 1U/0U...
Page 27
Please see the Rack Builder for configuration assistance at http://www.compaq.com/rackbuilder/. Rack Conversion Kit Rack Conversion Kit Rack Conversion Kit Rack Conversion Kit ProLiant ML350 Generation 3 Tower to Rack Conversion Kit (HP branded) 290683-B22 HP S10614 (14U) Rack Cabinet - Shock Pallet 292302-B22 HP Rack 10000 Series...
Page 28
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Options NOTE: NOTE: NOTE: NOTE: The Rack Blanking Panels (PN 253214-B21) contains 10 each of (4U). Rack Blanking Panels – Graphite (5U)
Page 29
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Options IP CAT5 Cable 3’, 4 pack 263474-B21 IP CAT5 Cable 6’, 8 pack 263474-B22 IP CAT5 Cable 12’, 8 pack 263474-B23 IP CAT5 Cable 20’, 4 pack...
Page 30
Factory Installation, Racking, and Customization Services Factory Express Server Configuration Level 1 293355-888 NOTE NOTE: Free Installation of HP Options - Installation of HP Options memory, NICs, hard drives, NOTE NOTE controllers, processors, I/O cards, pre-install standard OEM OS image, and tape drives. Installation fees will apply to all non-HP certified hardware and asset tags.
Page 31
Installation & Start-Up of a ProLiant server and Microsoft O/S per the Customer Description and/or 240013-002 Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays. (U.S. Part Number) Installation & Start-Up of a ProLiant server and Microsoft O/S per the Customer Description and/or FM-MSTEC-01 Data Sheet.
Page 32
HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Options HP Care Pack Priority Services for ProLiant Servers – Priority Silver HP Care Pack Priority Services for ProLiant Servers – Priority Silver HP Care Pack Priority Services for ProLiant Servers – Priority Silver HP Care Pack Priority Services for ProLiant Servers –...
Page 33
512 MB 512 MB 512 MB Following are memory options available from HP: 128MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 128 MB) 287494-B21 256MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
Page 34
512 MB 512 MB 512 MB Following are memory options available from HP: 128MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 128 MB) 287494-B21 256MB of Advanced ECC PC2100 DDR SDRAM DIMM Memory Kit (1 x 256 MB)
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Storage 0 - 5 6 x 1 in SCSI Hard Drive Bays 3.5 in Diskette Drive 48x CD-ROM C, D...
Page 36
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Storage Hard Drives Hard Drives Hard Drives Hard Drives Ultra320 Hot Pluggable Drives Ultra320 Hot Pluggable Drives Ultra320 Hot Pluggable Drives...
Page 37
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Storage Maximum Storage Capacity Maximum Storage Capacity Maximum Storage Capacity Maximum Storage Capacity – (StorageWorks Enclosure) Internal 1.174 TB (6 x 146.8-GB 1” Ultra320 hot plug hard drives with standard internal drive cage + 2 x 72.8-GB 1” Ultra320 Hot...
Page 38
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Storage Enhanced SCSI cable option) External 40/80-GB DLT VS 64-Bit/66Mhz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS External 20/40-GB DLT...
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 Power Specifications Part Number Part Number Part Number Part Number 264166-001 Spare Kit Spare Kit Spare Kit Spare Kit...
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 TechSpecs System Unit – Tower System Unit – Tower System Unit – Tower System Unit – Tower Dimensions Dimensions...
Page 41
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 TechSpecs System Unit – Rack System Unit – Rack System Unit – Rack System Unit – Rack Dimensions Dimensions...
Page 42
QuickSpecs HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 HP ProLiant ML350 Generation 3 TechSpecs 48X Max IDE (ATAPI) 48X Max IDE (ATAPI) 48X Max IDE (ATAPI) 48X Max IDE (ATAPI) Disk Disk...
Page 43
Warranty Warranty Warranty Maximum: The remaining warranty of the HP server product in which it is installed (to a maximum three-year limited warranty) Minimum: One-year, on-site limited warranty Pre-Failure Warranty: Drives attached to the Smart Array Controller and monitored under Insight Manager are supported by a Pre-Failure (replacement) Warranty.
Page 44
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
