CL5708M/CL5716M
8/16-Port 17" Single Rail USB-PS/2 LCD KVMP

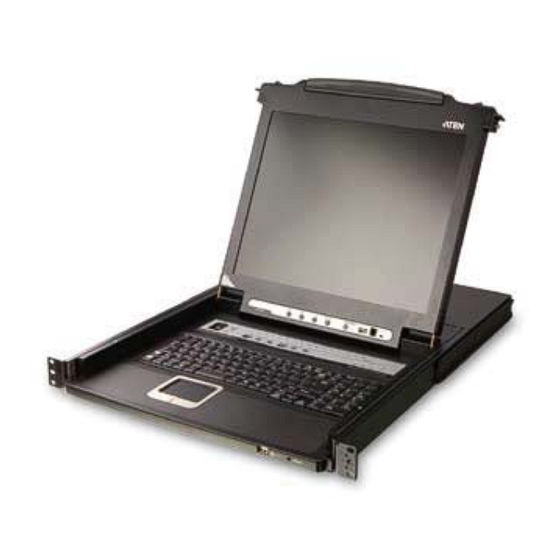

The CL5708 / CL5716 Slideaway™ LCD KVM Switch series are control units that
allow access to multiple computers from a single PS/2 or USB KVM (keyboard,
video, and mouse) console. A single CL5708 or CL5716 can control up to 8
or 16 computers. As many as 31 additional KVM switches can be
daisy-chained to the CL5708 / CL5716, so that up to 512 computers can
all be controlled from a single KVM console.
The CL5708 / CL5716 offers a space-saving, streamlined
approach to KVM switch technology by integrating a
keyboard, 17" LCD monitor, and touchpad in a 1U
rack-mountable sliding housing. For added security, an
optional fingerprint identification system
control access to the CL5708 / CL5716, and the servers
under its command.
The CL5708 / CL5716 is built on a modular design. The KVM section can be detached from the switch section
for convenient maintenance and repair.
FEATURES
Integrated KVM console with 17" LCD monitor in a Slideaway™ housing
Available with or without Fingerprint Identification Reader.
Space saving technology – up to two consoles (one bus) control up to 8 or 16 computers
Daisy-chain up to 31 additional units – control up to 256 (CL5708) or 512 (CL5716) computers
from a single console. (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A
CS1716A)
Dual Interface –supports computers and console with PS/2 or USB keyboards and mice
LCD module USB port allows each computer to access USB peripherals
LCD module rotates up to 115 degrees for a more comfortable viewing angle.
Multiplatform support – Windows, Linux, Mac, and Sun
Supports multimedia USB keyboards for PC, Mac and Sun
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting
of multiple computers even when the console focus is elsewhere
Supports external USB mouse
Superior video quality – supports resolutions up to 1280 x 1024 @ 75 Hz
TM
*
can be used to

Advertisement

loading
Need help?

Need help?

Do you have a question about the CL5708M and is the answer not in the manual?

Questions and answers

Summary of Contents for ATEN CL5708M

  • Page 1 CL5708M/CL5716M 8/16-Port 17” Single Rail USB-PS/2 LCD KVMP The CL5708 / CL5716 Slideaway™ LCD KVM Switch series are control units that allow access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5708 or CL5716 can control up to 8 or 16 computers.
  • Page 2 No software required – convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position Port names automatically reconfigured when station sequence is changed Two level password security –...
  • Page 3 Optional Single Person Easy Installation Kit Slideaway™ LCD KVM switches allow you to choose from a host of optional rack mount kits to meet your needs, including the Single Person Easy Installation Rack Mount Kit, which streamlines the rack mounting process.
  • Page 4 ATEN North America ATEN Technology ATEN New Jersey - SI/VAR Division 155 Pierce Street, Somerset, NJ 08873 19641 Da Vinci, Foothill Ranch, CA 92610 Phone: 888.999.ATEN (2836) Fax: 949.428.1100 Phone: 888.999.ATEN (2836) ext. 2300 Fax: 732.356.1639 Email: sales@aten-usa.com Website: www.aten-usa.com ATEN Connect...
