LCD KVMP Switch
CL5708 / CL5716
User Manual
www.aten.com

Advertisement

Table of Contents
loading

Related Manuals for ATEN CL5708

Summary of Contents for ATEN CL5708

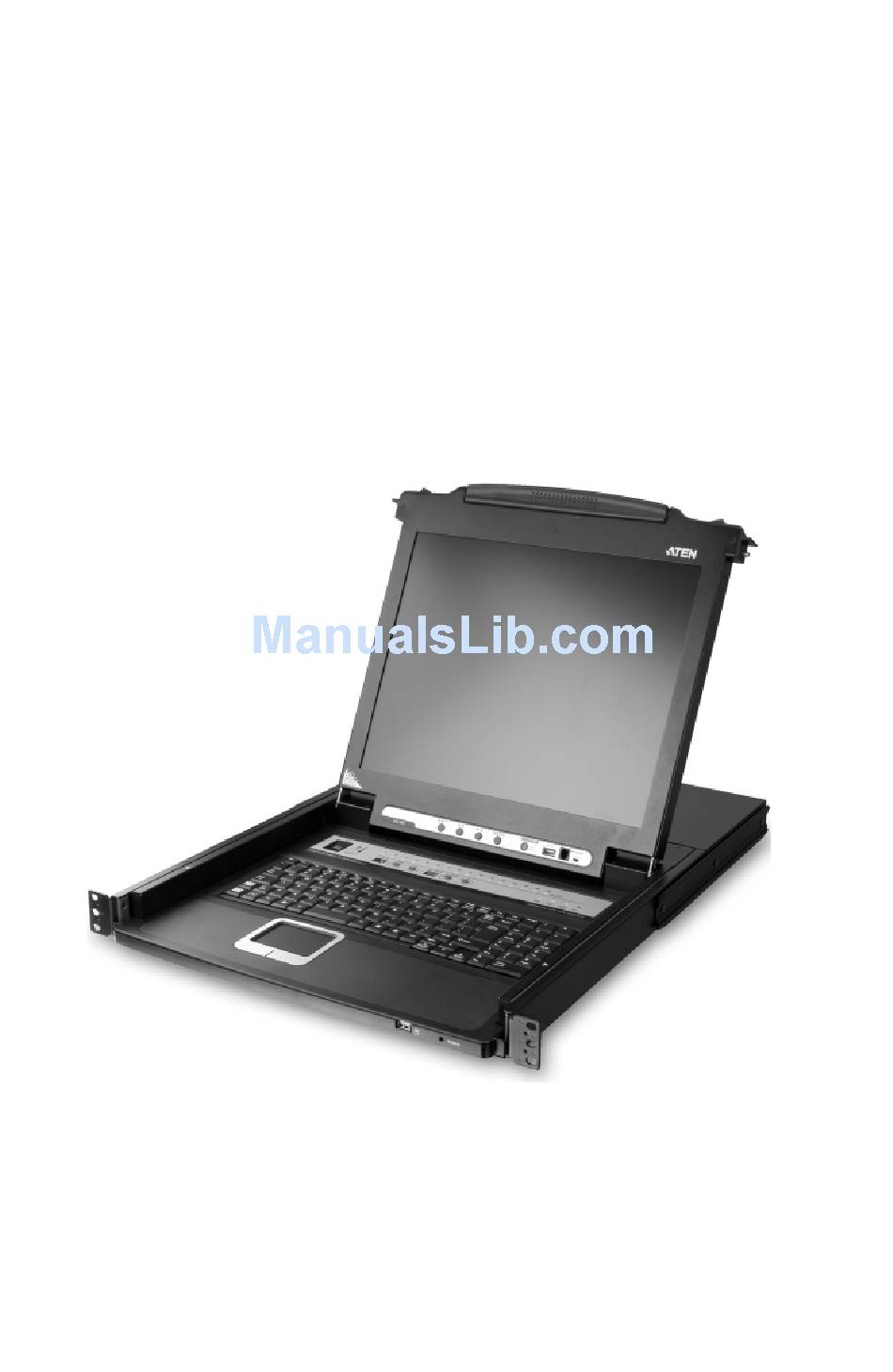

  • Page 1 LCD KVMP Switch CL5708 / CL5716 User Manual www.aten.com...

  • Page 2: Fcc Information

    CL5708 / CL5716 User Manual FCC Information This is an FCC Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: User Information

    CL5708 / CL5716 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://support.aten.com North America http://www.aten-usa.com/product_registration Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-10-5255-0110 Japan 81-3-5615-5811 Korea...

  • Page 4: Package Contents

    © Copyright 2009 - 2011 ATEN® International Co., Ltd. Manual Part No. PAPE-0290-AT4G Manual Date: 2011-01-20 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.

  • Page 5: Table Of Contents

    CL5708 / CL5716 User Manual Contents FCC Information ..........ii RoHS.
  • Page 6 CL5708 / CL5716 User Manual LCD OSD Configuration ........25 The LCD Buttons.
  • Page 7 Connection Tables ......... . 71 CL5708 to Compatible 8-Port Switches ..... . . 71 CL5708 to Compatible 16-Port Switches .

  • Page 8: About This Manual

    CL5708 / CL5716 User Manual About this Manual This user manual is provided to help you get the most from your CL5708 / CL5716 system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.

  • Page 9: Conventions

    For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 10 CL5708 / CL5716 User Manual This Page Intentionally Left Blank...

  • Page 11: Introduction

    The CL5708 / CL5716 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair. A special feature of the CL5708 / CL5716 D and E models is their use of DC power instead of the AC power used by most switch products.
  • Page 12 There is no better way to save time and money than with a CL5708 / CL5716 installation. By using the CL5708 / CL5716 with its sliding LCD console to manage your installation, you: eliminate the expense of having to purchase a separate keyboard, monitor, and mouse for each computer;...

  • Page 13: Features

    Space saving technology – up to two consoles (one bus) control up to 8 or 16 computers Daisy chain up to 31 additional units – control up to 256 (CL5708) or 512 (CL5716) computers from a single console Dual Interface – supports computers with PS/2 or USB keyboards and mice USB port allows each computer to access USB peripherals Multiplatform support –...
  • Page 14 CL5708 / CL5716 User Manual Extra console port – manage computers from an external console (monitor, USB or PS/2 keyboard and mouse) Supports external USB mouse Conveniently located station and port selectors, each with two 7-segment LED displays to quickly switch to target computers...

  • Page 15: Requirements

    1280 x 1024 @ 75 Hz. Make sure that none of the computer resolution settings exceed the LCD monitor's maximum resolution. PS/2 mouse and keyboard ports (6-pin Mini-DIN), or at least one USB port. Direct support Sun USB systems; or, for Sun legacy systems, an ATEN CV130A Sun Console Converter. Cables Substandard cables may damage the connected devices or degrade overall performance.

  • Page 16: Operating Systems

    CL5708 / CL5716 User Manual Operating Systems Supported operating systems are shown in the table, below: Version Windows 2000 and higher Linux RedHat 7.1 and higher SuSE 9.0 and higher Mandriva (Mandrake) 9.0 and higher UNIX 4.3 and higher FreeBSD 4.2 and higher...

  • Page 17: Components

    Chapter 1. Introduction Components Front View Note: The CL5716 is pictured in the diagrams of this chapter. However, the CL5708 is the same as the CL5716, except that it has 8 KVM ports.
  • Page 18 Upgrade that transfers the firmware upgrade data from the adminis- Section trator's computer to the CL5708 / CL5716 plugs into this RJ-11 connector. Firmware Upgrade Switch: During normal operation this switch should be in the NORMAL position. (See The Firm- ware Upgrade Utility, page 57 for firmware upgrading details.)

  • Page 19: Rear View (Ac Power)

    Grounding The grounding wire used to ground the switch attaches here. Terminal External For flexibility and convenience, the CL5708 / CL5716 Console Port supports an independent, external, KVM console. The external console keyboard, monitor, and mouse cables plug in here.

  • Page 20: Rear View (Dc Power)

    Terminal Power Switch This standard rocker switch powers the unit on and off. External For flexibility and convenience, the CL5708 / CL5716 Console Section supports an independent, external, KVM console. The external console keyboard, monitor, and mouse cables plug in here.

  • Page 21: Hardware Setup

    Overview For convenience and flexibility that allows mixing PS/2 and USB interfaces, the CL5708 / CL5716 design utilizes custom KVM cables that serve as intermediaries between the KVM switch and the connected computers. A separate custom KVM cable is required for each computer connection. The custom KVM cables are listed in the Cables section on page 5.

  • Page 22: Standard Rack Mounting

    CL5708 / CL5716 User Manual Standard Rack Mounting A standard rack mounting kit is provided with your CL5708 / CL5716. The kit enables the switch to be mounted in rack with a depth of 42.0–77.0 cm. L Brackets Side Mountng...

  • Page 23: Grounding

    To prevent damage to your installation it is important that all devices are properly grounded. Use a grounding wire to ground the CL5708 / CL5716 by connecting one end of the wire to the grounding terminal, and the other end of the wire to a suitable...

  • Page 24: Single Level Installation

    AC Power Models 1. Ground the unit. 2. If you choose to connect an external console to the CL5708 / CL5716, use the console cable provided to plug a keyboard, monitor, and mouse into the Console Port. See Cabling Diagrams, page 18.
  • Page 25 Chapter 2. Hardware Setup AC Power Installation Diagram...

  • Page 26: Dc Power Models

    DC Power Models 1. Ground the unit. 2. If you choose to connect an external console to the CL5708 / CL5716, use the console cable provided to plug a keyboard, monitor, and mouse into the Console Port. See Cabling Diagrams, page 18.
  • Page 27 Chapter 2. Hardware Setup DC Power Installation Diagram...

  • Page 28: Cabling Diagrams

    CL5708 / CL5716 User Manual Cabling Diagrams Use the following diagrams as a guide for attaching cables to an external console and/or computers you will be connecting to the CL5708 / CL5716. Console Cable Installation Diagram PS/2 KVM Cable Installation Diagrams...

  • Page 29: Daisy Chain Installations

    To control even more computers, up to 31 compatible KVM switches can be daisy chained down from the CL5708 / CL5716 (see the Appendix for a list of compatible ATEN switches). In a complete installation, as many as 256 or 512 computers can be controlled from the CL5708 / CL5716.

  • Page 30: Daisy Chain Installation Diagram

    CL5708 / CL5716 User Manual Daisy Chain Installation Diagram CHAIN OUT CL5708 / CL5716 CHAIN OUT CHAIN IN COMPATIBLE SWITCH CHAIN OUT CHAIN IN COMPATIBLE SWITCH TO NEXT STATION...

  • Page 31: Basic Operation

    Basic Operation Opening the Console The CL5708 / CL5716's console is located under the top cover. To access the console, slide the console module out and raise the cover. Note: As a safety precaution, to keep the console from accidentally sliding out, the console is locked into the In position.

  • Page 32: Closing The Console

    CL5708 / CL5716 User Manual Closing the Console To slide the console module back in, close the cover and do the following: 1. Pull the safety catches on the unit's side rails toward you and push the module in until it stops.

  • Page 33: Operating Precautions

    Chapter 3. Basic Operation Operating Precautions The maximum load bearing capacity of the keyboard module is 30kg. Failure to heed the information below can result in damage to the keyboard module. Right! Rest your hands and arms lightly on the keyboard module as you work.

  • Page 34: Powering Off And Restarting

    CL5708 / CL5716 User Manual Powering Off and Restarting If it becomes necessary to power off the CL5708 / CL5716, do the following before restarting it: 1. Shut down all the computers that are attached to the CL5708 / CL5716.

  • Page 35: Lcd Osd Configuration

    Chapter 3. Basic Operation LCD OSD Configuration The LCD Buttons The LCD OSD allows you to set up and configure the LCD display. Four buttons are used to perform the configuration, as described in the table, below: Button Function MENU When you have not entered the LCD OSD Menu function, pressing this button invokes the Menu function, and brings up the Main Menu.

  • Page 36: Lcd Adjustment Settings

    CL5708 / CL5716 User Manual LCD Adjustment Settings An explanation of the LCD OSD adjustment settings is given in the table below: Setting Explanation Brightness Adjusts the background black level of the screen image. Contrast Adjusts the foreground white level of the screen image.

  • Page 37: Hot Plugging

    Chapter 3. Basic Operation Hot Plugging The CL5708 / CL5716 supports hot plugging - components can be removed and added back into the installation by unplugging their cables from the ports without the need to shut the unit down. In order for hot plugging to work...

  • Page 38: Port Selection

    This number is displayed on the front panel station ID LED. The Port Number is a two digit number of the port on the CL5708 / CL5716 station that a computer is connected to. This number is displayed on the front panel port ID LED.

  • Page 39: Usb Peripheral Devices

    The front panel USB port is available to connect a USB peripheral device (flash drive, CD-ROM drive, printer, etc.) to the CL5708 / CL5716. Any computer connected to the CL5708 / CL5716 can access the USB peripheral on a one-at- a-time basis. The peripheral device is available to computers connected to the CL5708 / CL5716 on the same level only, and is not available to computers connected to daisy chained switches.
  • Page 40 CL5708 / CL5716 User Manual This Page Intentionally Left Blank...

  • Page 41: Osd Operation

    OSD Hotkey You can display the OSD on the LCD or an external console monitor while also viewing the display of any port on the CL5708 / CL5716 by pressing the [Scroll Lock] key twice. Note: You can optionally change the OSD hotkey to the Ctrl key, in which case you would press [Ctrl] twice (see OSD Hotkey, page 36).

  • Page 42: Osd Main Screen

    CL5708 / CL5716 User Manual OSD Main Screen When you invoke the OSD, a screen similar to the one below appears: Note: 1. The diagram depicts the administrator's main screen. The user main screen does not show the F4 and F6 functions, since these are reserved for the administrator and can't be accessed by users.

  • Page 43: Osd Main Screen Headings

    Chapter 4. OSD Operation OSD Main Screen Headings The table below describes the OSD Main Screen headings. Heading Description SN--PN This column lists the port ID numbers (station number - port number) for all the KVM ports on the installation. The simplest method to access a particular computer is move the highlight bar to it, then press [Enter].

  • Page 44: Osd Functions

    CL5708 / CL5716 User Manual OSD Functions OSD functions are used to configure and control the OSD. For example, you can rapidly switch to any port, scan selected ports, limit the list you wish to view, designate a port as a quick view port, create or edit a port name, or make OSD setting adjustments.

  • Page 45: F2: List

    Chapter 4. OSD Operation F2: LIST This function lets you broaden or narrow the scope of which ports the OSD displays on the main screen. The submenu choices and their meanings are given in the table below. Choice Meaning Lists all of the ports on the installation that have been set accessible by the administrator for the current logged in user.

  • Page 46: F3: Set

    CL5708 / CL5716 User Manual F3: SET This function allows the administrator and each user to set up his own working environment. A separate profile for each is stored by the OSD and is activated according to the username that was provided during login.
  • Page 47 Chapter 4. OSD Operation (Continued from previous page.) Setting Function SCAN–SKIP Selects which computers will be accessed under skip mode (see MODE F5 SKP, page 42), and Auto Scan mode (see F7 SCAN, page 44. Choices are: ALL - All the ports which have been set accessible (see SET ACCESSIBLE PORTS, page 39);...

  • Page 48: F4: Adm

    CL5708 / CL5716 User Manual F4: ADM F4 is an administrator only function. It allows the administrator to configure and control the overall operation of the OSD. To change a setting double-click it, or use the up and down arrow keys to move the highlight bar to it then press [Enter].
  • Page 49 Chapter 4. OSD Operation (Continued from previous page.) Setting Function SET USER To record a fingerprint: LOGIN 1. Select an item from the list and double-click it, or move the high- (continued) light bar to it and press [Enter]. 2. Swipe the selected finger across the reader 3 times as directed. 3.
  • Page 50 CL5708 / CL5716 User Manual (Continued from previous page.) Setting Function EDIT PORT To help remember which computer is attached to a particular port, NAMES every port can be given a name. This function allows the administrator to create, modify, or delete port names. To edit a port name: 1.
  • Page 51 3. Press [Esc] to exit. The operating system you selected is assigned to the KVM port. FIRMWARE In order to upgrade the CL5708 / CL5716 firmware (see page 57), UPGRADE you must first enable Firmware Upgrade mode with this setting.

  • Page 52: F5: Skp

    CL5708 / CL5716 User Manual F5: SKP Clicking the F5 field or pressing [F5] invokes Skip mode. This function enables you to easily skip backward or forward – switching the console focus from the currently active computer port to the previous or next available one.

  • Page 53: F6: Brc

    Chapter 4. OSD Operation F6: BRC F6 is an administrator only function. Clicking the F6 field, or pressing [F6], invokes Broadcast (BRC) mode. When this function is in effect, commands sent from the console are broadcast to to all available computers on the installation.

  • Page 54: F7: Scan

    CL5708 / CL5716 User Manual F7: SCAN Clicking the F7 field or pressing [F7] invokes Auto Scan mode. This function allows you to automatically switch among the available computers at regular intervals so that you can monitor their activity without having to take the trouble of switching yourself.

  • Page 55: Keyboard Port Operation

    Keyboard Port Operation Hotkey Port Control Hotkey port control allows you to provide KVM focus to a particular computer directly from the keyboard. The CL5708 / CL5716 provides the following hotkey port control features: Selecting the Active Port Auto Scan Mode Switching...

  • Page 56: Invoke Hotkey Mode

    CL5708 / CL5716 User Manual Invoke Hotkey Mode All hotkey operations begin by invoking Hotkey mode. There are two possible keystroke sequences used to invoke Hotkey mode, though only one can be operational at any given time: Number Lock and Minus Keys 1.

  • Page 57: Select The Active Port

    Chapter 5. Keyboard Port Operation Select the Active Port Each KVM port is assigned a port ID (see Port ID Numbering, page 27). You can directly access any computer on the installation with a hotkey combination that specifies the port ID of the KVM port that a computer is connected to. To access a computer using hotkeys: 1.

  • Page 58: Auto Scan Mode

    CL5708 / CL5716 User Manual Auto Scan Mode Auto Scan automatically switches, at regular intervals, among all the KVM ports that have been set as accessible under Scan–Skip Mode, so that their activity can be monitored automatically. See Scan–Skip Mode on page 37 for more information.

  • Page 59: Skip Mode

    Chapter 5. Keyboard Port Operation Skip Mode This feature allows you to switch between computers in order to monitor them manually. You can dwell on a particular port for as long as you like – as opposed to auto-scanning, which automatically switches after a fixed interval. To invoke Skip mode, key in the following hotkey combination: 1.

  • Page 60: Computer Keyboard / Mouse Reset

    CL5708 / CL5716 User Manual Computer Keyboard / Mouse Reset If the keyboard or mouse cease to function on the computer connected to the currently selected port, you can perform a keyboard / mouse reset on the computer. This function is essentially the same as unplugging and replugging the keyboard and mouse on the target computer.

  • Page 61: Quick Hotkey Control

    Chapter 5. Keyboard Port Operation Quick Hotkey Control The Quick Hotkey (see HOTKEY, page 37) can be toggled between [Num Lock] + [-], and [Ctrl] + [F12]. To toggle the Quick Hotkey: 1. Invoke hotkey mode with the [Num Lock] + [-] or [Ctrl] + [F12] combination.

  • Page 62: Port Os Control

    After pressing a function key you automatically exit Hotkey mode. Restore Default Values This administrator only hotkey restores the CL5708 / CL5716 default values. See RESTORE DEFAULT VALUES, page 40. To restore the default values, key in the following hotkey combination: 1.

  • Page 63: Hotkey Summary Table

    Chapter 5. Keyboard Port Operation Hotkey Summary Table [Num Lock] + [-] [A] [Enter] Invokes Auto Scan mode. When Auto Scan mode is in effect, [P] or [Ctrl] + [F12] [Q] [Enter] left-click pauses auto-scanning. When auto-scanning is paused, pressing any key or another left-click resumes auto- scanning.
  • Page 64 CL5708 / CL5716 User Manual This Page Intentionally Left Blank...

  • Page 65: Keyboard Emulation

    Chapter 6 Keyboard Emulation Mac Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Mac keyboard. The emulation mappings are listed in the table below. PC Keyboard Mac Keyboard [Shift] Shift [Ctrl] Ctrl [Ctrl] [1] [Ctrl] [2] [Ctrl] [3] [Ctrl] [4] [Alt]...

  • Page 66: Sun Keyboard

    CL5708 / CL5716 User Manual Sun Keyboard The PC compatible (101/104 key) keyboard can emulate the functions of the Sun keyboard when the Control key [Ctrl] is used in conjunction with other keys. The corresponding functions are shown in the table below.

  • Page 67: The Firmware Upgrade Utility

    Introduction The purpose of the Windows-based firmware upgrade utility is to provide an automated process for upgrading the CL5708 / CL5716 and compatible adapter cable firmware. The program comes as part of a firmware upgrade package that is specific for each device.

  • Page 68: Preparation

    CL5708 / CL5716 User Manual Preparation To prepare for the firmware upgrade, do the following: 1. Use the Firmware Upgrade Cable (provided with this unit), to connect a COM port on your computer to the Firmware Upgrade Port of your switch.

  • Page 69: Starting The Upgrade

    Chapter 7. The Firmware Upgrade Utility Starting the Upgrade To upgrade the firmware: 1. Run the downloaded firmware upgrade package file either by double- clicking the file icon, or by opening a command line and entering the full path to it. The Firmware Upgrade Utility welcome screen appears: Note: The screens shown in this section are for reference only.
  • Page 70 CL5708 / CL5716 User Manual The Firmware Upgrade Utility main screen appears. The devices capable of being upgraded are listed in the Device List panel: 4. Click Next to perform the upgrade. If you enabled Check Firmware Version, the utility compares the device's firmware level with that of the upgrade files.

  • Page 71: Upgrade Succeeded

    Chapter 7. The Firmware Upgrade Utility Upgrade Succeeded After the upgrade has completed, a screen appears to inform you that the procedure was successful: Click Finish to close the firmware upgrade utility. Upgrade Failed If the Upgrade Succeeded screen doesn't appear, it means that the upgrade failed to complete successfully.

  • Page 72: Firmware Upgrade Recovery

    CL5708 / CL5716 User Manual Firmware Upgrade Recovery There are three conditions that call for firmware upgrade recovery: When a firmware upgrade is manually aborted. When the mainboard firmware upgrade fails. When the I/O firmware upgrade fails. To perform a firmware upgrade recovery, do the following: 1.

  • Page 73: Appendix

    Appendix Safety Instructions General Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. Do not use the device near water.
  • Page 74 CL5708 / CL5716 User Manual (Continued from previous page.) Do not allow anything to rest on the power cord or cables. Route the power cord and cables so that they cannot be stepped on or tripped over. If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating.

  • Page 75: Rack Mounting

    Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.

  • Page 76: Technical Support

    CL5708 / CL5716 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, see Telephone Support, page iii. North America Email Support ATEN TECH support@aten-usa.com ATEN NJ sales@aten.com Online Technical Support ATEN TECH http://www.aten-usa.com/support...

  • Page 77: Specifications

    Appendix Specifications Function CL5708D Computer Direct Connections 256 (via daisy chain) Port Selection OSD, Hotkeys, Pushbuttons Connectors External Console Port 1 x SPHD-18 (Male) External Mouse Port 1 x USB Type-A (Female) KVM Ports 8 x SPHD-15 (Female) Daisy Chain Port 1 x DB-25 (Male) FW Upgrade 1 x RJ-11 (Female)
  • Page 78 CL5708 / CL5716 User Manual Function CL5716D Computer Direct Connections 512 (via daisy chain) Port Selection OSD, Hotkeys, Pushbuttons Connectors External Console Port 1 x SPHD-18 (Male) External Mouse Port 1 x USB Type-A (Female) KVM Ports 16 x SPHD-15 (Female)
  • Page 79 Appendix Function CL5708M Computer Direct Connections 256 (via daisy chain) Port Selection OSD, Hotkeys, Pushbuttons Connectors External Console Port 1 x SPHD-18 (Male) External Mouse Port 1 x USB Type-A (Female) KVM Ports 8 x SPHD-15 (Female) Daisy Chain 1 x DB-25 (Male) FW Upgrade 1 x RJ-11 (Female) Power...
  • Page 80 CL5708 / CL5716 User Manual Function CL5716M Computer Direct Connections 512 (via daisy chain) Port Selection OSD, Hotkeys, Pushbuttons Connectors External Console Port 1 x SPHD-18 (Male) External Mouse Port 1 x USB Type-A (Female) KVM Ports 16 x SPHD-15 (Female)

  • Page 81: Connection Tables

    Appendix Connection Tables The following tables indicate the relationship between the number of units and the number of computers that they control on a daisy chained installation. CL5708 to Compatible 8-Port Switches Computers Computers Computers Computers 1–8 65–72 129–136 193–200 9–16...

  • Page 82: Cl5716 To Compatible 8-Port Switches

    CL5708 / CL5716 User Manual CL5716 to Compatible 8-Port Switches Computers Computers Computers Computers 1–16 73–80 137–144 201–208 17–24 81–88 145–152 209–216 25–32 89–96 153–160 217–224 33–40 97–104 161–168 225–232 41–48 105–112 169–176 233–240 49–56 113–120 177–184 241–248 57–64 121–128 185–192...

  • Page 83: Supported Kvm Switches

    Appendix Supported KVM Switches The table below lists KVM switches that are compatible with the CL5708 / CL5716 and the type of expansion that they use. (KVM switches listed below are sold separately. Contact your dealer for details.) Expansion Type...

  • Page 84: Clear Login Information

    CL5708 / CL5716 User Manual Clear Login Information If you are unable to perform an Administrator login (because the Username and Password information has become corrupted, or you have forgotten it), you can clear the login information with the following procedure.

  • Page 85: Osd Factory Default Settings

    Appendix OSD Factory Default Settings The factory default settings are as follows: Setting Default OSD Hotkey [Scroll Lock] [Scroll Lock] Port ID Display Position Upper Left Corner Port ID Display Duration 3 Seconds Port ID Display Mode Port Number plus the Port Name Scan Duration 5 Seconds Scan/Skip Mode...

  • Page 86: Optional Rack Mounting

    CL5708 / CL5716 User Manual Optional Rack Mounting For convenience and flexibility, three optional rack mounting kits are available: A long bracket standard rack mounting kit for 68.0–110.0 cm racks; A short bracket Easy-Installation rack mount kit for 52.0–70.0 cm racks;...
  • Page 87 Appendix 2. Attach the left and right easy-installation mounting rails to the inside of the rack. The flange that supports the switch will be to the inside. Rear Flange Slide Bar LEFT RAIL Rear Attachment Sliding Bracket Support Rear Flange Flange RIGHT RAIL...
  • Page 88 CL5708 / CL5716 User Manual (Continued from previous page.) 3. Slide the switch onto the support flanges. Use the screws supplied with this package to loosely attach the front of the switch to the front of the rack (only tighten the screws part way).

  • Page 89: Troubleshooting

    The distance between the external console and the the external monitor. CL5708 / CL5716 is too great. The maximum VGA cable distance should not exceed 20m and, in some cases, may need to be shorter. Replace the VGA cable with one...

  • Page 90: Keyboard Invocation Keys

    CL5708 / CL5716 User Manual Keyboard Invocation Keys Two dedicated keys are provided on the keyboard module to make it easy to invoke Hotkey mode and the OSD, as shown in the diagram, below Note: These keys are toggles. Press them once to invoke the feature, press them again to exit.
  • Page 91 BRC, 43 F2 LIST, 35 Broadcast Mode, 43 F3 SET, 36 F4 ADM, 38 F5 SKP, 42 CL5708 / CL5716 F6 BRC, 43 AC Power Rear view, 9 F7 SCAN, 44 DC Power Rear view, 10 F8 LOUT, 44 Front view, 7...
  • Page 92 CL5708 / CL5716 User Manual computers, 5 external console, 5 Manual port switching, 28 Hot Plugging, 27 Mouse Reset, 50 External console ports, 27 KVM ports, 27 Hotkey Online registration, iii Beeper Control, 50 Opening the console, 21 Command Mode, 37...
  • Page 93 Index standard, 12 SET, 36 Rack mounting Accessible Ports, 39 Easy installation, 76 Logout Timeout, 39 Optional, 76 Operating System, 41 safety information, 65 Quick View Ports, 40 Rear View SJ/T 11364-2006, ii AC power, 9 Skip Mode, 42, 49 DC power, 10 SKP, 42 Requirements...
