QuickSpecs
Overview
Compaq ProLiant DL360 Generation 2

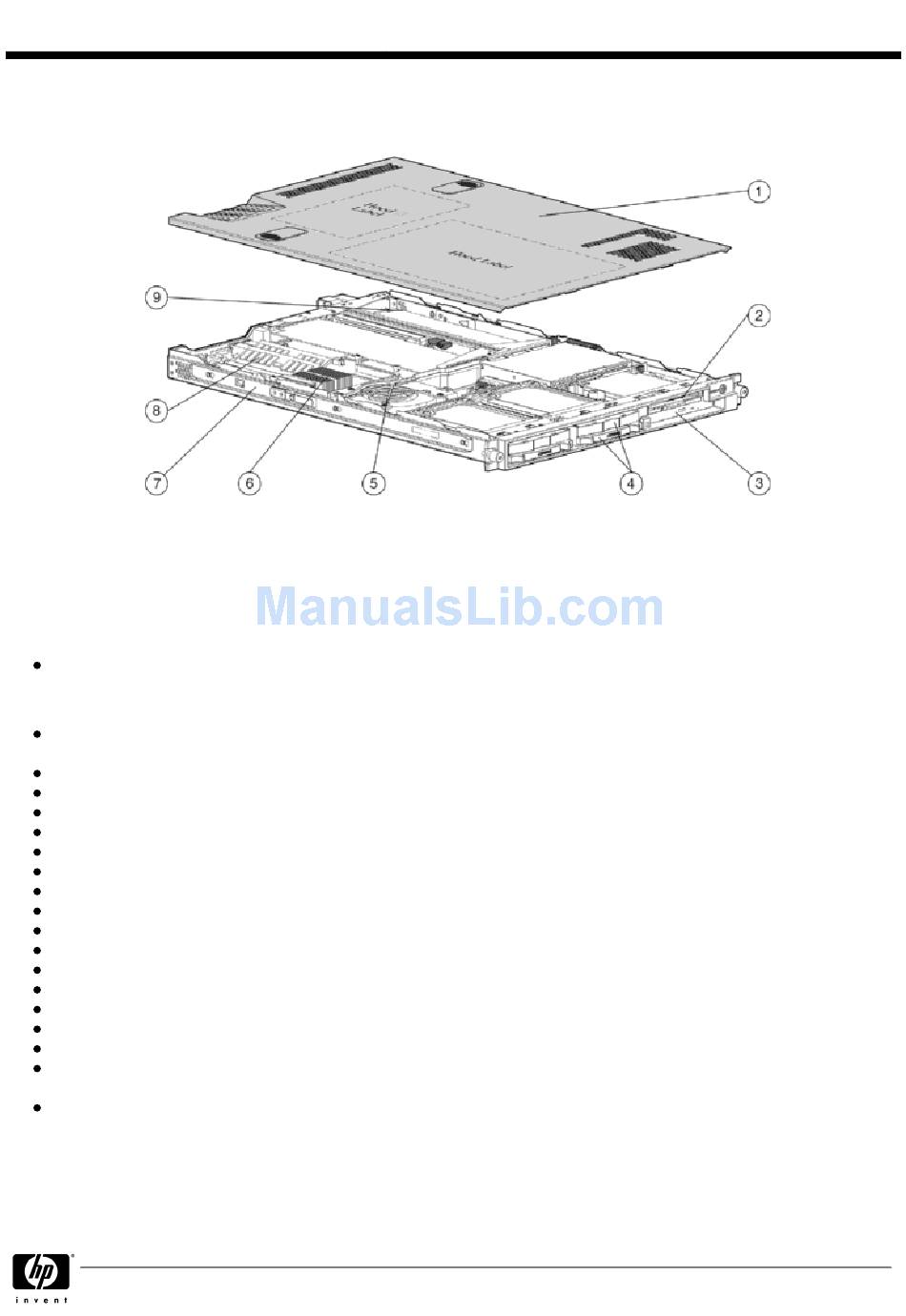

1. Tool-free cover (for easy internal component access)
2. 1.44-MB Floppy Drive
3. 24x CD-ROM Drive (Low-Profile)
4. Two 1" Wide Ultra3 SCSI Hot Plug Drive Bays
What's New
New DC Power Supply for the DL360 (48 V)
At A Glance
Continuing to innovate highly manageable, performance driven, rack-optimized server for space constrained, scale-out
environments
Intel® Pentium III FC-PGA 1.40-GHz processor (dual capability)
512-KB level 2 ECC cache
1U Rack form factor (1.75")
ServerWorks HE- SuperLite Chipset
Triple Peer PCI Architecture with 133-MHz Front Side Bus
Integrated Lights-Out (iLO) Management (ASIC on motherboard)
Smart Array 5i Controller (integrated on system board)
Two full length expansion PCI slots: 64-bit/66-MHz
Two USB ports
200-Watt Power Supply
256-MB PC133-MHz Registered ECC SDRAM memory, (2 x 1 Interleaved Memory), expandable to 4 GB
Two Compaq NC7780 PCI-X 10/100/1000-T Server Adapters
Wide Ultra3 SCSI Drive Cage standard supports up to two 1" Wide Ultra3/Ultra320 hot plug hard drives
Internal hot plug capacity up to 293.6 GB (2 x 146.8-GB 1" HD)
Exceptional serviceability with optional sliding rails, cable management and in-rack, tool-free service ability access
Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU) Insight Manager7, Status LEDs including system
health and UID and SmartStart
Protected by HP Services, including a three-year, next business day on-site limited global warranty and extended Pre-
Failure Warranty which covers processors, memory, and hard drives — Certain restrictions and exclusions apply.
Consult the HP Customer Support Center at 1-800-345-1518 for details.
DA - 11049 Worldwide QuickSpecs — Version 35 — 9.30.2003
Compaq ProLiant DL360 Generation 2
5. High Pressure Blower
6. Processor (one shown, two supported)
7. Rack side rails
8. 2 Full Length PCI Slots
Page 1
