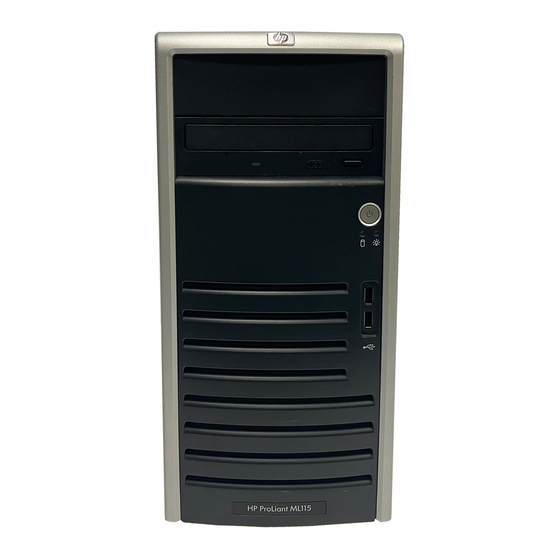

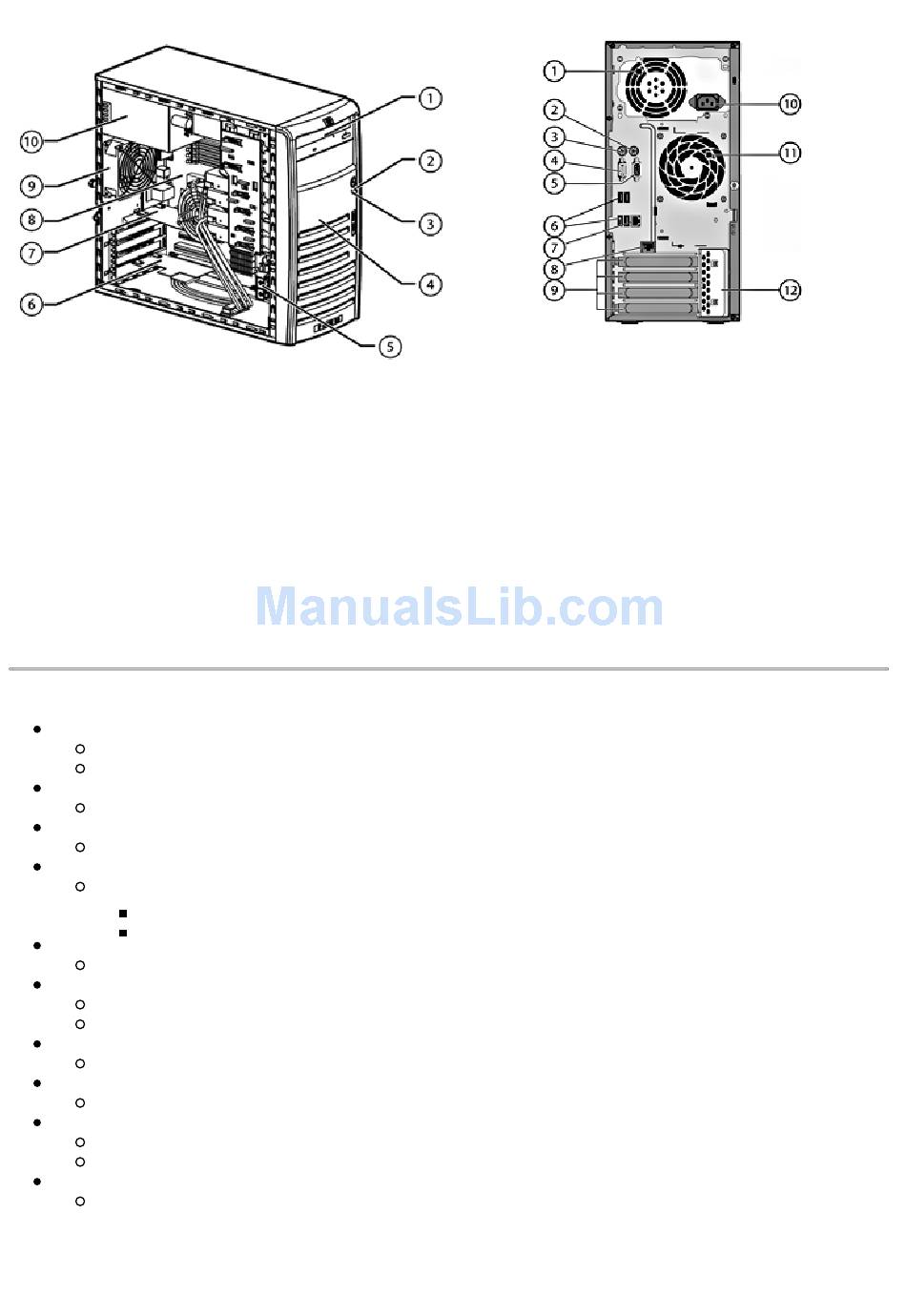

Front View:
1.
CD-ROM Drive
2.
Power LED
3.
Drive Activity LED
4.
Well ventilated chassis design
5.
Full Length Card Retainer
6.
HDD controller card (Optional)
7.
HP LO 100c Management Card (Optional)
8.
Main System Board
9.
Rear System Fan
10.
370W Power Supply
At A Glance
Processor:
Dual-Core AMD Opteron 1000 Series processors
Single-Core Athlon 64 3500+ processors
Memory:
512 MB Standard / 8 GB Maximum of PC2-5300 DDR2 667 MHz ECC unbuffered Memory
Storage Controller:
4 Port SATA controller with Embedded RAID on Motherboard (RAID 0,1,5)
Internal Drive Support:
4 HDD Support:
2TB SATA max storage (utilizing 500GB CTO HDD)
1.2TB SAS max storage (4 x 300GB)
Network Controller:
Embedded NC320i PCI Express Gigabit Server Adapter
Expansion Slots:
Two 32-bit/33MHz PCI at 3.3V slot
Two PCI-Express slots (x8 and x16).
USB Ports:
Eight total USB ports (2 internal, 2 front, 4 rear)
Form Factor:
Micro ATX tower
Management:
Standard IPMI reporting
Lights Out 100c Remote Management Card (Optional)
Warranty:
Protected by HP Services and a worldwide network of HP Authorized Channel Partners, including a one-year,
limited warranty, Next Business Day 1, year on-site limited Global warranty. Certain restrictions and exclusions
apply. SATA hard drives have a one year warranty. (3-1-1 warranty offered in AP only).
Rear View:
1.
PSU fan
2.
PS/2 mouse port
3.
PS/2 keyboard port
4.
VGA port
5.
Serial port A
6.
Rear USB 2.0 ports
7.
LAN port (RJ-45)
8.
HP LO100c Remote Management Card port (Optional)
9.
PCI slot covers
10. Power supply outlet
11. Rear system fan
12. PCI slot cover lock

Advertisement

loading
Need help?

Need help?

Do you have a question about the Computer Parts and is the answer not in the manual?

Questions and answers

Related Manuals for HP Computer Parts

Summary of Contents for HP Computer Parts

  • Page 1 Lights Out 100c Remote Management Card (Optional) Warranty: Protected by HP Services and a worldwide network of HP Authorized Channel Partners, including a one-year, limited warranty, Next Business Day 1, year on-site limited Global warranty. Certain restrictions and exclusions apply. SATA hard drives have a one year warranty. (3-1-1 warranty offered in AP only).
  • Page 2 NOTE: Slot 2 only supports standard PCI 32 bit add-on card due to proximity of the Heat Sink. Storage Controller HP 8 Internal Port SAS HBA with RAID (0,1) One of the following Integrated 4 port SATA controller with embedded RAID depending on Model *Embedded RAID setup instructions located in User Guide, CTO RAID set-up not available.
  • Page 3 Setup password 8 total (4 rear, 2 front panel, 2 internal (one for USB Tape connectivity)) NOTE: Internal USB ports are optimal for the attachment of HP USB DAT Tape Drives NOTE: Please see the following URL for additional information regarding USB support: http://h18004.www1.hp.com/products/servers/platforms/usb-...
  • Page 4 HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers, as well as, the MSA1000, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.
  • Page 5 Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.
  • Page 6 (1) Dual-Core AMD Opteron 1214 (2.2GHz, 2MB Cache) 2MB (2x1MB) Level 2 cache (Opteron) 512 MB PC2-5300 ECC (DDR2-667Mhz) (1 x 512 MB) HP Embedded 4 Port SATA Controller with embedded RAID (0,1,5) 160GB SATA HDD Maximum 2TB (4 x 500GB) SATA...

  • Page 7: Step 1: Base Configuration

    NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
  • Page 8 Step 3: Choose Additional Options for Factory Integration NOTE: For additional options, please refer to the "Options" section below. NOTE: Some options may not be factory integratable. Please contact your local sales representative for additional information. Operating Systems Pre-install Microsoft Windows 2003 SBS Standard Edition MS W2003 SBS R2 Std 1XX FIO Eng SW MS W2003 SBS R2 Prm 1XX FIO Eng SW Country Code Key...
  • Page 9 Configuration Information Section of this QuickSpecs to order via Configuration to Order. HP Non-Hot Plug SATA Cable NOTE: The purchase of a SATA Hard Disk Drive requires the purchase of HP SATA Cable option kit (P/N 442901-B21). Serial Attached SCSI (SAS) Non-Hot Plug (SAS Models Only) HP 300GB SAS 3.5"...
  • Page 10 NOTE: 3TB of Disk Storage. HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive NOTE: 3TB of Disk Storage. NOTE: Please see the HP D2D Backup Systems QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/12651_div/12651_div.html Installation of Server Monitor/Utility Shelf...
  • Page 11 HP KVM Switch HP 1x4 Console Switch Options HP PS2 Server Console Cable, 6 foot, 2-Pack HP USB Server Console Cable, 6 foot, 2-Pack NOTE: Required for supporting USB peripherals. NOTE: For additional information regarding KVM Switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
  • Page 12 Hardware Services Next Business Day On-Site Service 9-Hour x 5-Day Coverage, 3 Years Hardware Services 6 Hour Call-to-Repair 24-Hour x 7-Day Coverage, 3 Years, 6 Hour Call-to-Repair Hardware Installation Service HP Install ProLiant ML115 Service NOTE: For more information, customer/resellers can contact http://www.hp.com/services/carepack. U4434E U4435E...
  • Page 13 5120 MB Maximum 8192 MB Following are memory options available from HP: 2 GB Unbuffered PC2-5300 ECC DIMM (1 x 2 GB) 1 GB Unbuffered PC2-5300 ECC DIMM (1 x 1 GB) 512 MB Unbuffered PC2-5300 ECC DIMM (1 x 512 MB)

  • Page 14: Drive Support

    4 Port SATA controller with Embedded RAID on Motherboard (0,1,5) Position Supported Controller 3,4,5,6 HP 8 Internal Port SAS HBA with RAID (0,1) 1TB (4x250GB (BTO) 2TB (4 x 500GB (CTO) 1.2TB (4x300GB) 1TB (4x250GB (BTO) 2TB (4 x 500GB (CTO) 1.2TB (4x300GB)
  • Page 15 Backup Systems D2D110 D2D120 D2D130 (Worldwide) Controller USB 2.0 port USB 2.0 port HP SC44Ge Host Bus Adapter HP SC44Ge Host Bus Adapter HP SC11Xe Host Bus Adapter HP SC11Xe Host Bus Adapter Embedded Network Controller Controller/HBA Option Kit Part Number...
  • Page 16 Part Number Spare Kit Operational Input Voltage Range (Vrms) Frequency Range (Nominal) (Hz) Nominal Input Voltage (Vrms) Max Rated Output Wattage Rating Nominal Input Current (A rms) Max Rated Input Wattage Rating (Watts) Max. Rated VA (Volt-Amp) Efficiency (%) Power Factor Leakage Current (mA) Maximum Inrush Current (A peak) Maximum Inrush Current duration...
  • Page 17 HP ProLiant ML115 Fully Configured Fully Loaded System output Wattage Fully Loaded System Input Current (A rms) Fully Loaded System Thermal (BTU- Fully Loaded System VA (Volt-Amp) 920 System Leakage with all power supplies loaded (mA) System Inrush Current with all power...
  • Page 18 Power (per power supply) Temperature Range Relative Humidity (non-condensing) Acoustic Noise HP 160GB 1.5G SATA 160GB 7,200 rpm 7.2K NHP 3.5" HDD 411275-B21 14.46 x 6.88 x 16.76 in (36.7 x 17.5 x 42.6 cm) 23.15 lb (10.5 kg) Range Input Voltage...
  • Page 19 3.5" HDD 431950-B21 48X Max IDE (ATAPI) Disk CD-ROM Drive 398972-B21 Block Size Interface Access Times (typical) Data Transfer Rate Cache Buffer Start-up Time (typical) < 7 seconds Stop Time Laser Parameters Operating Conditions Dimensions Height 1.0 in (25.4mm) Width 4.0 in.
  • Page 20 RAID 1 (Mirroring) RAID 0 (Striping) RAID 5 (Striping with parity) NOTE: On SATA models with embedded RAID, setup instructions are located in User Guide, CTO RAID is set-up not available. HP ProLiant 100 Series Server User Guide: http://h20000.www2.hp.com/bc/docs/support/SupportManual/ c00368941/c00368941.pdf?jumpid=reg_R1002_USEN 6.6 x 2.5 x 0.6 in (16.8 x 6.4 x 1.6 cm)
  • Page 21 The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
