Furuno MF/HF DSC Terminal DSC-6/6A Specifications page 2

GENERAL CHARACTERISTICS
1. Rules and Regulations
CCIR Rec. 493 (Class A), 541
IMO Res. A609 (15), CEPT TR/34-01
2. Distress Call and Message
Distress Call and Message (RR3112: Format specifier
(distress), Self-ID, Nature of distress, Distress coordinates,
Time, Telecommand, EOS, ECC)
3. Class of Emission
DSC: F1B/J2B (J2B w/FS-1562)
Voice:J3E, H3E (2182 kHz)
TTY: F1B/J2B (J2B w/FS-1562)
4. Manual Setting or Scan of Distress Frequencies
MF/HF DSC:
2187.5, 4207.5, 6312, 8414.5, 12577, 16804.5 kHz
Corresponding MF/HF NBDP (not scanned):
2174.5, 4177.5, 6268, 8376.5, 12520, 16695 kHz
TP: 2182, 4125, 6215, 8291, 12290, 16420 kHz
5. Message Storage
Receive:
50 distress messages max. plus 50 non-distress messages
Transmit:
50 non-distress messages plus 99 files containing station ID,
telephone no., frequency, etc.
6. Nav Data
IEC61162
7. Alarms
Aural and visual on receipt of distress, urgency or general
calls
8. Display
24 characters x 2 lines
Character composition: 5 x 7 dots
LCD with adjustable backlighting
DSC signal,
DSC ship business and routine
telephony,
(scanning watch)
telex
FS-1562
DSC ship business and routine
(scanning watch)
DSC distress
and safety
ALLWAVE RECEIVER
(continuous watch)
RV-107
MF/HF DSC
RECEIVER
AA-50
FURUNO U.S.A., INC.
Camas, Washington, U.S.A.
Phone: +1 360-834-9300 Telefax: +1 360-834-9400
FURUNO (UK) LIMITED
Denmead, Hampshire, U.K.
Phone: +44 1705-230303 Telefax: +44 1705-230101
FURUNO FRANCE S.A.
Bordeaux-Mérignac, France
Phone: +33 5 56 13 48 00 Telefax: +33 5 56 13 48 01
FURUNO ESPANA S.A.
Madrid, Spain
Phone: +34 91-725-90-88 Telefax: +34 91-725-98-97

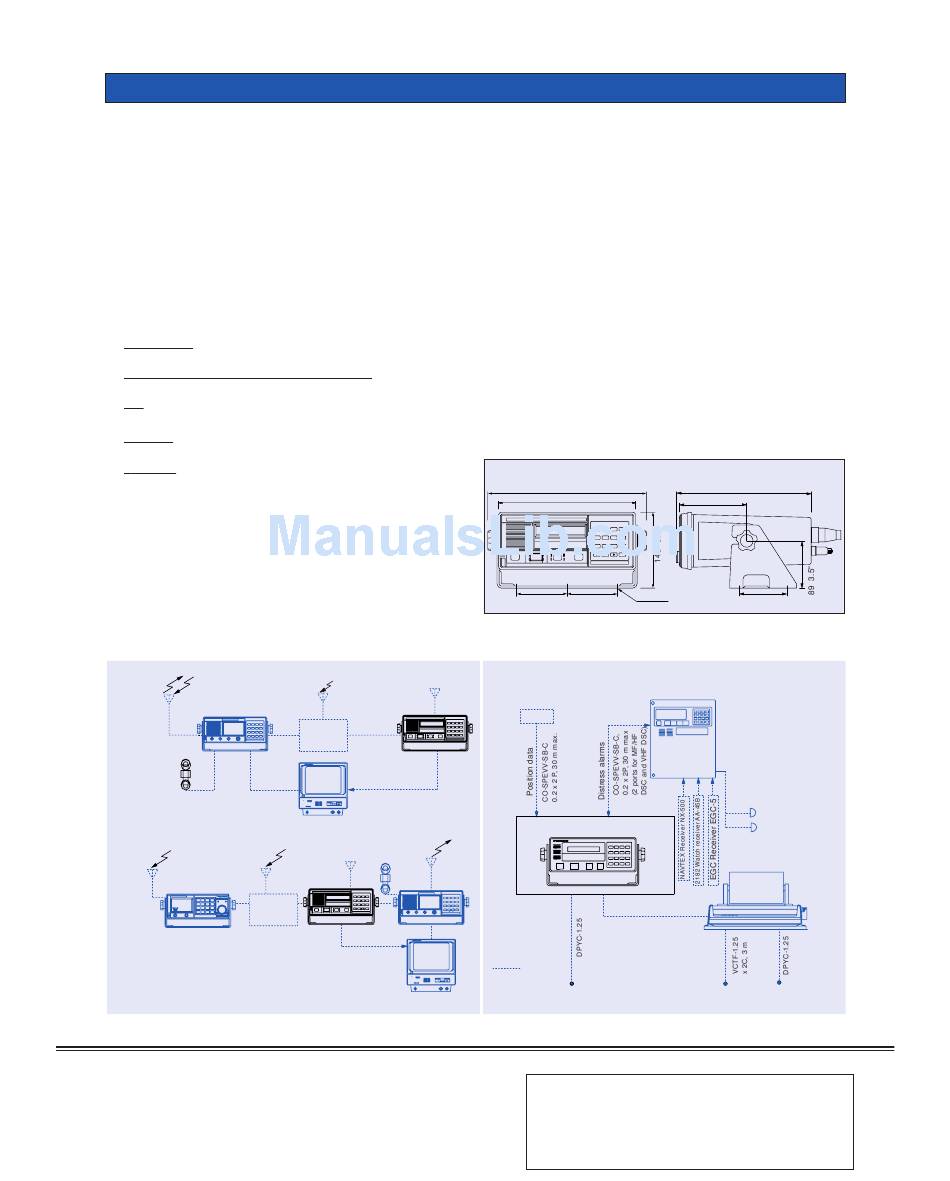

SPECIFICATIONS OF DSC-6/6A
DSC distress
For DSC-6A
and safety
(continuous watch)
DSC-6/6A
MF/HF DSC
RECEIVER
AA-50
Setting telecommand,
working freq., etc.
NBDP Terminal
DP-5/6
DSC signal,
telephony,
telex
For DSC-6A
FS-1562
DSC-6/6A
Setting telecommand,
working freq., etc.
NBDP Terminal
DP-5/6
FURUNO DANMARK AS
Hvidovre, Denmark
Phone: +45 36 77 45 00 Telefax: +45 36 77 45 01
FURUNO NORGE A/S
Ålesund, Norway
Phone: +47 70 102950 Telefax: +47 70 127021
FURUNO SVERIGE AB
Västra Frölunda, Sweden
Phone: +46 31-7098940 Telefax: +46 31-497093
FURUNO SUOMI OY
Helsinki, Finland
Phone: +358 9 3417570 Telefax: +358 9 3415716
9. Modulator and Demodulator
Level: -30 dBm to +10 dBm at 600 ohms, balanced
Frequency: Mark 1615 Hz, Space 1785 Hz, 100 baud
Stability: ±0.5 Hz
RECEIVER CHARACTERISTICS OF DSC-6A
Receive Frequency: 2187.5 kHz
Sensitivity: Error rate 1 % at 0 dBµV
POWER SUPPLY
10.8 - 40.0 VDC, 15 W
115/230 VAC thru AC/DC changeover supply
EQUIPMENT LIST
Standard
1. DSC terminal
2. Installation materials and spare parts
Optional
1. Mounting bracket
2. Printer PP-500
Weight: 3.5 kg
299 11.8"
258 10.2"
6 - 7.5
˘
(95 3.7")
(95 3.7")
Centralized control/monitoring
NAV
Distress
message
controller
DMC-5
DSC-6/6A standard system
57FE-338-205W, 5 m
Option
24 VDC
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
99043N Printed in Japan
254.1 10.0"
127 5.0"
(89 3.5")
Alarms
Captain's room
Operator's room
PRINTER
PP-500/510
115 or 230 VAC 24 VDC
(For PP-500) (For PP-510)
