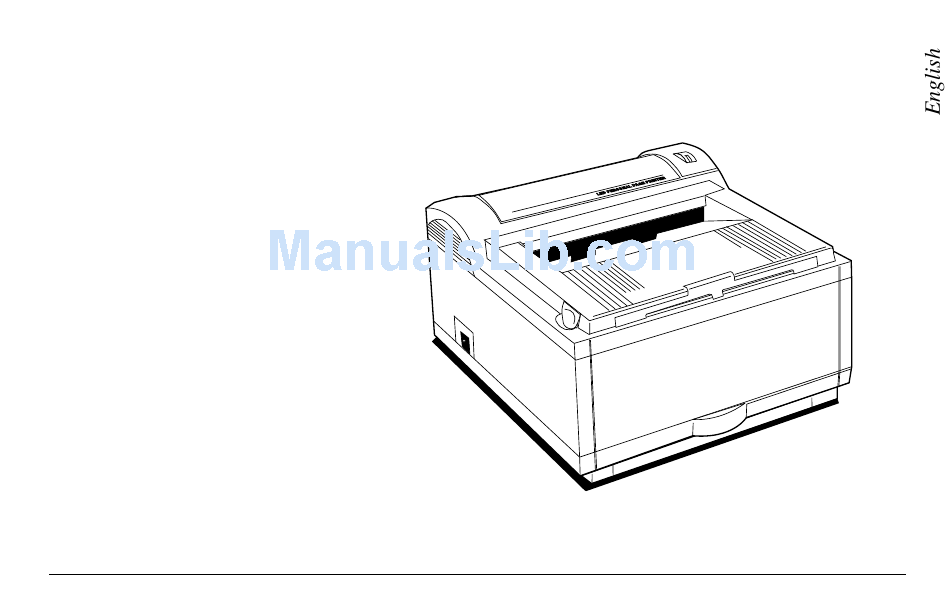

- Page 1 OL600ex/OL610ex Read Me First...
- Page 2 Every effort has been made to ensure that the information in Oki is a registered trademark of Oki Electric Industry this document is complete, accurate, and up-to-date. Oki Company, Ltd. assumes no responsibility for the results of errors beyond its control.
- Page 3 Safety Instructions Your Oki printer has been carefully designed to give you years • Do not use your printer near water, or spill liquid of any of safe, reliable performance. As with all electrical equipment, kind into it. however, there are a few basic precautions you should take to •...
- Page 4 These are some of the things to look for: • The power cable or plug is frayed or damaged. • Liquid has been spilled into the printer, or it has been exposed to water. • The printer has been dropped, or the cabinet is damaged. OL600ex/OL610ex...
-
Page 5: Table Of Contents
Changing the Language (OL610ex) ...... 20 Choosing Paper ............13 Printing a Demo Page ..........21 Paper Sizes ............13 Control Panel (OL610ex and OL600ex/OP) ..21 Paper Weight ........... 13 The Display Window........22 Installing Paper ..........14 The Buttons ............. 22 Paper Exit Paths ............. - Page 6 OL600ex/OL610ex...
-
Page 7: Printer Features
• 300 DPI plus 600 DPI Class output from Windows™ • Serial Parallel Converter • 44 Bitmap fonts As an Energy Star Partner, Oki has • 1 MB memory with Enhanced Memory Management, determined that this product meets expandable to 18 MB the Energy Star guidelines for energy efficiency. -
Page 8: Check The Contents
1. Printer (with Image Drum Cartridge installed). 2. Driver Diskettes. 3. Toner Cartridge. 4. Printer Handbook. 5. Power Cable. 6. Lightproof plastic bag (for storing image drum if printer must be shipped). If anything is missing, contact your dealer for a replacement. OL600ex/OL610ex... -
Page 9: Printer Components
Printer Components Rear paper exit tray Top paper exit bin Manual feed tray Power switch Automatic paper feed tray LED array Power cable receptacle Image drum cartridge with toner installed Bi-directional parallel interface port Read Me First... -
Page 10: Setting Up Your Printer
Setting Up Your Printer Remove the protective sheet 3. Remove the protective sheet. 1. Press and open the cover. Be Careful: do not touch the Image Drum's green surface. 2. Remove the image drum. 4. Replace the image drum. OL600ex/OL610ex... -
Page 11: Installing Toner
Installing Toner 1. Remove the sponge and discard. 3. Unwrap the new cartridge. 2. Shake the toner cartridge to evenly distribute toner. 4. Remove the tape. Do not remove cartridge from packaging. Read Me First... - Page 12 5. Insert the toner cartridge. 7. Close the printer cover. 6. Push the blue lever forward. OL600ex/OL610ex...
-
Page 13: Choosing Paper
Choosing Paper Paper Sizes Letter EXEC • For best results, use paper that is smooth and of high Legal 13* C5 Envelope* quality, like copier type paper or paper with a Sheffield rating of 100-250. • Store paper in its ream wrapper until you are ready to COM-10* Monarch* use it. -
Page 14: Installing Paper
Installing Paper 3. Adjust the paper guides. 1. Push the paper tray handle. 2. Remove the paper tray. 4. Insert paper. OL600ex/OL610ex... -
Page 15: Paper Exit Paths
5. Re-insert the paper tray. Paper Exit Paths Top Paper Exit • Printed pages exit face down. • Pages are stacked in the order printed. • Exit bin holds 100 sheets (20lb. paper) Pull the front exit extender forward. Lift out the metal support bar. -
Page 16: Rear Paper Exit
Pull out the rear exit extender until it locks into place. Lift feed tray. Pull the tray down. out the metal support bar. To return to top exit, fold in the metal support bar and push the rear exit extender in until it clicks into place. OL600ex/OL610ex... -
Page 17: Transparencies/Adhesive Labels
2. Adjust the guides. Insert a sheet of paper until the printer Transparencies/Adhesive Labels grips it. When using letterhead paper, insert letterhead in first face up. • Use Manual Feed • Always use rear output. 3. Set your software application for manual feed and paper •... -
Page 18: Printing Envelopes
Pull down the manual feed tray and adjust the paper guides. 2. Insert the envelope, flap down and to the left, until the printer grips it. 3. Set envelope size and landscape orientation in your software, then issue the print command. OL600ex/OL610ex... -
Page 19: Connecting Your Printer
Connecting Your Printer 2. Plug the power cord into the printer, then into a grounded outlet. Make sure your printer is not plugged in and your computer is turned off. The parallel cable should support bi-directional communication and must be shielded. 1. -
Page 20: Installing Printer Driver
The DOS Operator Panel may also be installed by running From Windows™ 3.1x Program Manager install.bat. 1. Insert Disk 1 supplied with your Oki printer. 1. Insert Disk 2 into drive A: 2. Click FILE – RUN... 2. From the DOS command line go onto drive A. -
Page 21: Printing A Demo Page
Printing a Demo Page (OL610ex and OL600ex/OP) Control Panels OL610ex 1. Press ON LINE (Ready light off). OL610ex 2. Press and hold Print Demo. The Demo Page prints. OL600ex/OP OL 600ex/OP The Ready Light Printer is on line ready to receive data. All buttons are now inactive except the ON LINE button. -
Page 22: The Display Window
The Display Window (OL610ex and OL600ex/OP) The Buttons (OL610ex and OL600ex/OP) Indicates the following: • Press ON LINE to switch printer between on line and off line modes. Press to end Menu session. • What the printer is doing during normal operation. -
Page 23: Oki Systems Company Address
Oki Systems Company Oki Systems (UK) Limited 550 Dundee Road Slough Trading Estate Slough Berks. SL1 4LE Tel: 01753-819819 Fax: 01753-819899 Read Me First... -
Page 24: Index
Printer Driver 20 choosing 18 choosing 17 Protective sheet how to print 18 Optional accessories 7 removing 10 Unpacking contents 8 Fonts 7 Paper Ready Light 21 choosing Rear paper exit quality 13 how to set up 16 weight 13 OL600ex/OL610ex...
