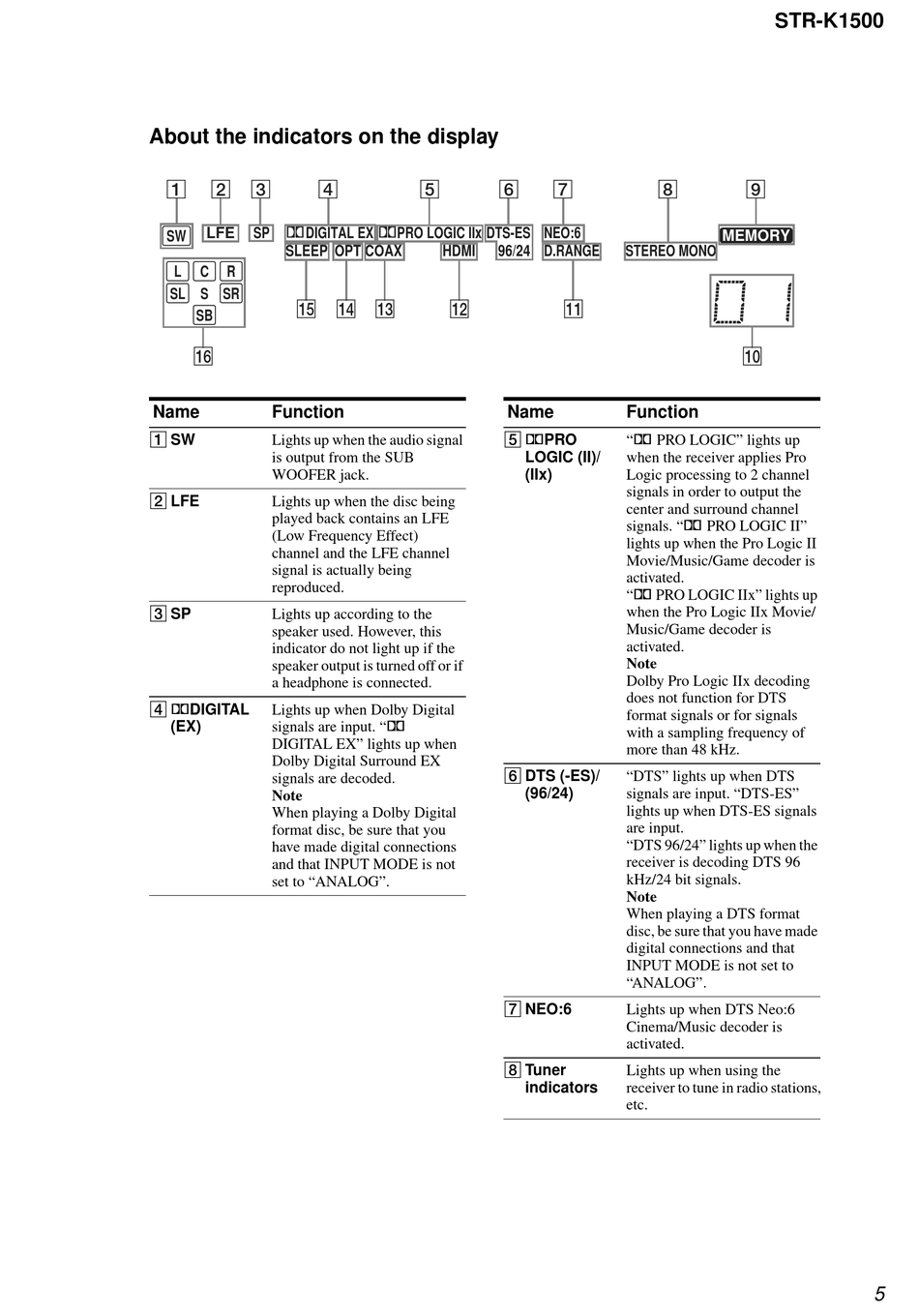

About the indicators on the display
1 2 3 4
;
SP DIGITAL EX
LFE
SW
SLEEP OPT COAX
L C R
SL S SR
qg
SB
qh
Name Function
A SW
Lights up when the audio signal
is output from the SUB
WOOFER jack.
B LFE
Lights up when the disc being
played back contains an LFE
(Low Frequency Effect)
channel and the LFE channel
signal is actually being
reproduced.
C SP
Lights up according to the
speaker used. However, this
indicator do not light up if the
speaker output is turned off or if
a headphone is connected.
D ;DIGITAL
Lights up when Dolby Digital
(EX) signals are input. ";
DIGITAL EX" lights up when
Dolby Digital Surround EX
signals are decoded.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is not
set to "ANALOG".
5 6
;
PRO LOGIC IIx DTS-ES
HDMI 96/24
qf qd qs
Name
E ;PRO
F DTS (-ES)/
G NEO:6
H Tuner
7 8
NEO:6
D.RANGE STEREO MONO
qa
Function
"; PRO LOGIC" lights up
LOGIC (II)/ when the receiver applies Pro
(IIx)
Logic processing to 2 channel
signals in order to output the
center and surround channel
signals. "; PRO LOGIC II"
lights up when the Pro Logic II
Movie/Music/Game decoder is
activated.
"; PRO LOGIC IIx" lights up
when the Pro Logic IIx Movie/
Music/Game decoder is
activated.
Note
Dolby Pro Logic IIx decoding
does not function for DTS
format signals or for signals
with a sampling frequency of
more than 48 kHz.
"DTS" lights up when DTS
(96/24) signals are input. "DTS-ES"
lights up when DTS-ES signals
are input.
"DTS 96/24" lights up when the
receiver is decoding DTS 96
kHz/24 bit signals.
Note
When playing a DTS format
disc, be sure that you have made
digital connections and that
INPUT MODE is not set to
"ANALOG" .
Lights up when DTS Neo:6
Cinema/Music decoder is
activated.
Lights up when using the
indicators
receiver to tune in radio stations,
etc.
STR-K1500
9
MEMORY
q;
5
