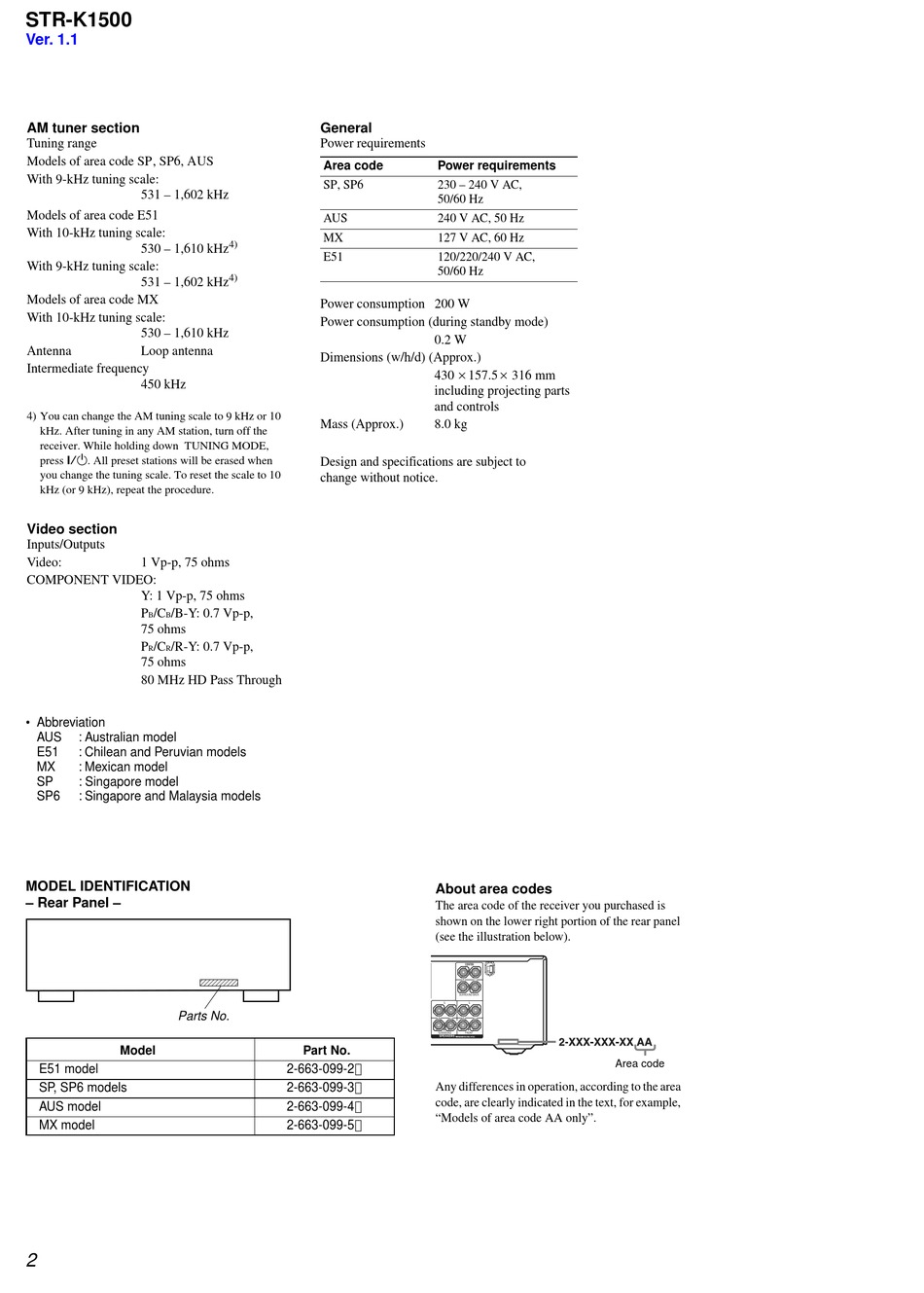

STR-K1500
Ver. 1.1
AM tuner section
Tuning range
Models of area code SP, SP6, AUS
With 9-kHz tuning scale:
531 – 1,602 kHz
Models of area code E51
With 10-kHz tuning scale:
530 – 1,610 kHz
With 9-kHz tuning scale:
531 – 1,602 kHz
Models of area code MX
With 10-kHz tuning scale:
530 – 1,610 kHz
Antenna Loop antenna
Intermediate frequency
450 kHz
4) You can change the AM tuning scale to 9 kHz or 10
kHz. After tuning in any AM station, turn off the
receiver. While holding down TUNING MODE,
press ?/1. All preset stations will be erased when
you change the tuning scale. To reset the scale to 10
kHz (or 9 kHz), repeat the procedure.
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
P /C /B-Y: 0.7 Vp-p,
B B
75 ohms
P /C /R-Y: 0.7 Vp-p,
R R
75 ohms
80 MHz HD Pass Through
• Abbreviation
AUS : Australian model
E51 : Chilean and Peruvian models
MX : Mexican model
SP : Singapore model
SP6 : Singapore and Malaysia models
MODEL IDENTIFICATION
– Rear Panel –
Parts No.
Model
E51 model
SP, SP6 models
AUS model
MX model
2
General
Power requirements
Area code
SP, SP6
AUS
MX
4)
E51
4)
Power consumption 200 W
Power consumption (during standby mode)
Dimensions (w/h/d) (Approx.)
Mass (Approx.)
Design and specifications are subject to
change without notice.
Part No.
2-663-099-2[]
2-663-099-3[]
2-663-099-4[]
2-663-099-5[]
Power requirements
230 – 240 V AC,
50/60 Hz
240 V AC, 50 Hz
127 V AC, 60 Hz
120/220/240 V AC,
50/60 Hz
0.2 W
× ×
430 157.5 316 mm
including projecting parts
and controls
8.0 kg
About area codes
The area code of the receiver you purchased is
shown on the lower right portion of the rear panel
(see the illustration below).
CENTER
+ –
SURROUND BACK
L L
+ – + –
R R
SURROUND FRONT
SPEAKERS
Any differences in operation, according to the area
code, are clearly indicated in the text, for example,
"Models of area code AA only".
Area code
