X3200 Images; Front View; Rear View - IBM system x3200 Product Manual

An affordable single-socket, dual-core server with high performance and data protection for small
and medium businesses

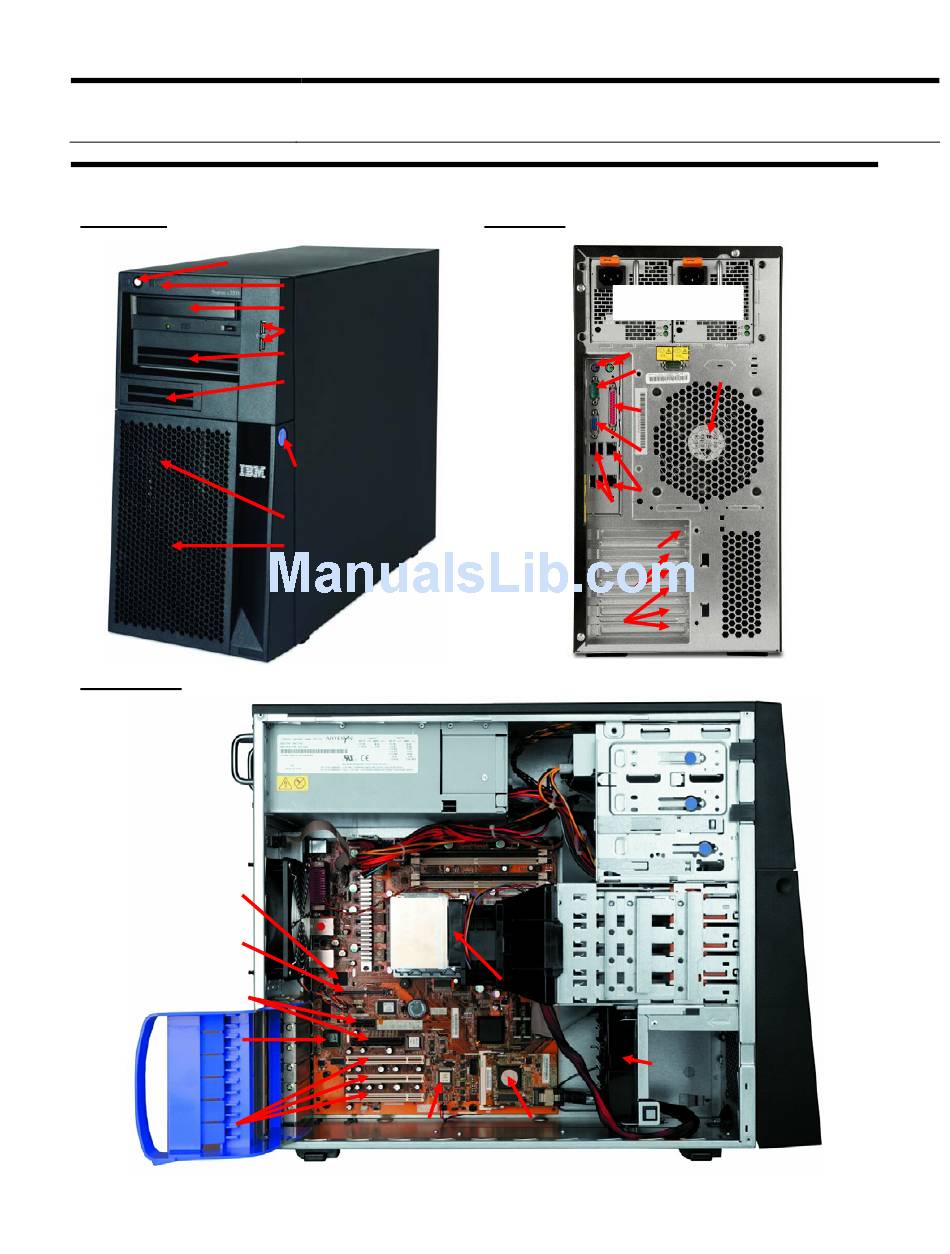

x3200 Images

Front View

Power Button
Interior View
Gb Ethernet
Controller
Remote
Supervisor
Adapter II
SlimLine
Slot
PCI-E Slots
Video
Controller
Adapter
Retainer
Bracket
PCI Slots
Please see the Legal Information section for important notices and information.
share the iSeries server's systems management, CD-ROM, tape and disk storage via the iSeries
dynamic virtual storage architecture. This can take the place of a SAN for a customer with an
established System i5 or iSeries infrastructure.
Status LEDs
Optical Drive
USB Ports
Optical / Tape /
GoVault Drive
Floppy Drive Bay
Cover Release
Button
HDD Bays
Hexagonal
Ventilation Holes
Hot-swap/
Redundant Power
Supplies
DIMM Slots
Fa
Processor
and
Heatsink
Mini BMC

Rear View

Hot-swap/Redundant
Power Supplies
PS/2 Ports
Serial Port
Parallel
Port
Video
Port
Gb Ethernet
Ports
4 USB Ports
Rem. Sup. Ad.
II SlimLine
Slot
PCI-E
Slots
PCI
Slots
Optical
Optical/Tape/Go
Vault Drive Bay
Floppy Drive
HDD Bays
HDD Fan
and Air
Dam
Processor
Fan
Adapter
Retainer
Bracket
SAS Controller
System
Fan
9
