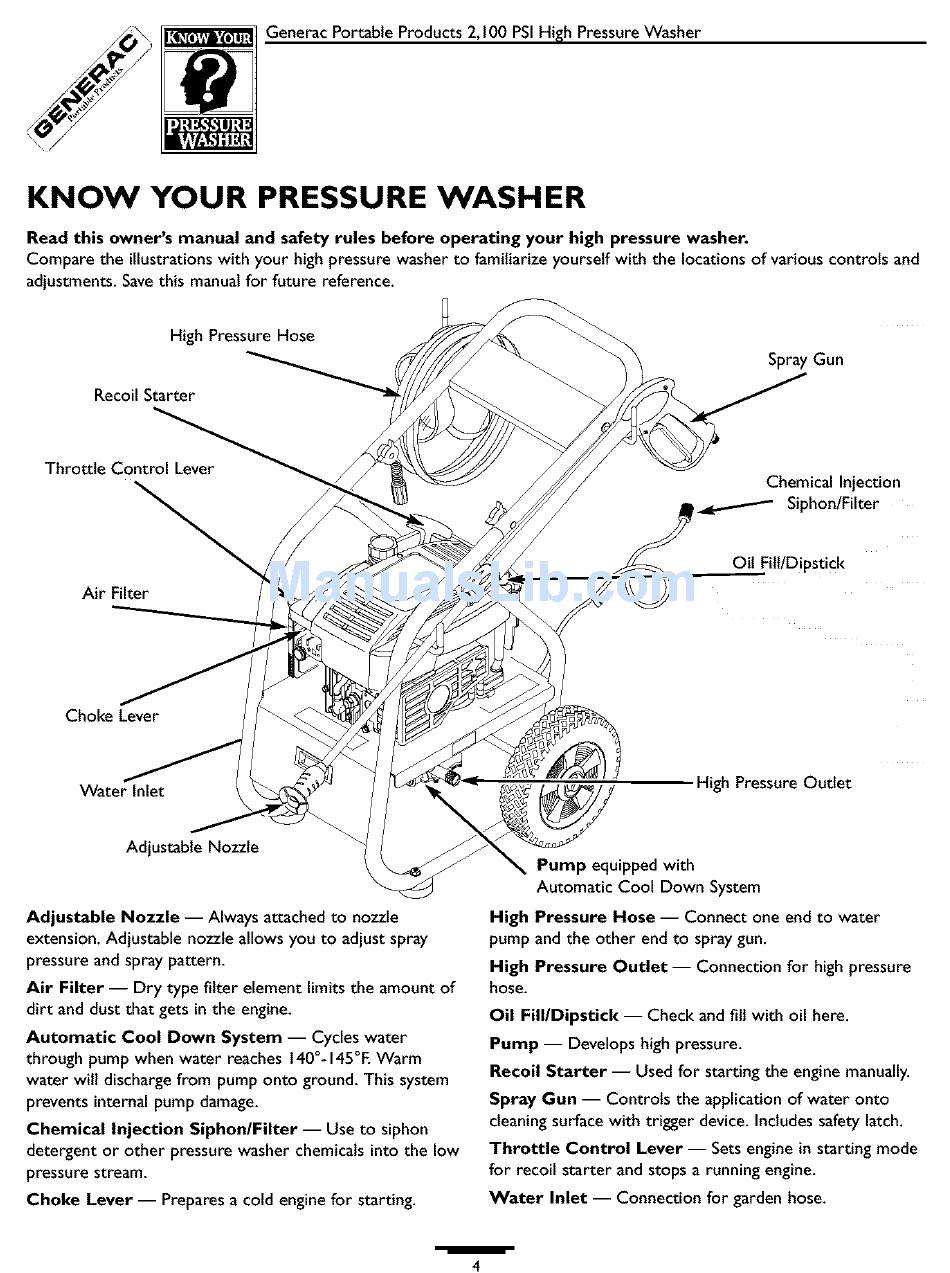

KNOW YOUR PRESSURE WASHER
Read this owner's manual and safety rules before operating your high pressure washer.
Compare the illustrations with your high pressure washer to familiarize yourself with the locationsof various controls and
adjustments. Savethis manual for future reference.
High Pressure Hose
Spray Gun
Recoil Starter
Throttle Control Lever
Air Filter
Chemical Injection
Choke Lever
Water Inlet
High Pressure Outlet
Adjustable Nozzle
Adjustable Nozzle -- Always attached to nozzle
extension. Adjustable nozzle allows you to adjust spray
pressure and spray pattern.
Air Filter -- Dry type filter element limits the amount of
dirt and dust that gets in the engine.
Automatic Cool Down System -- Cycles water
through pump when water reaches 140°-145°E Warm
water wilt discharge from pump onto ground. This system
prevents internal pump damage.
Chemical Injection SiphonlFilter -- Use to siphon
detergent or other pressure washer chemicals into the low
pressure stream.
Choke Lever -- Prepares a cold engine for starting.
Pump equipped with
Automatic Cool Down System
High Pressure Hose -- Connect one end to water
pump and the other end to spray gun.
High Pressure Outlet -- Connection for high pressure
hose.
Oil Fill/Dipstick -- Check and fill with oil here.
Pump -- Develops high pressure.
Recoil Starter -- Used for starting the engine manually.
Spray Gun -- Controls the application of water onto
cleaningsurface with trigger device. Includes safety latch.
Throttle Control Lever -- Sets engine in starting mode
for recoil starter and stops a running engine.
Water Inlet -- Connection for garden hose.
/
