Proudly Made in USA

The IntelliControl is designed and built in the USA and comes with a limited two year parts
and labor warranty.
1B. IntelliControl Parts Guide

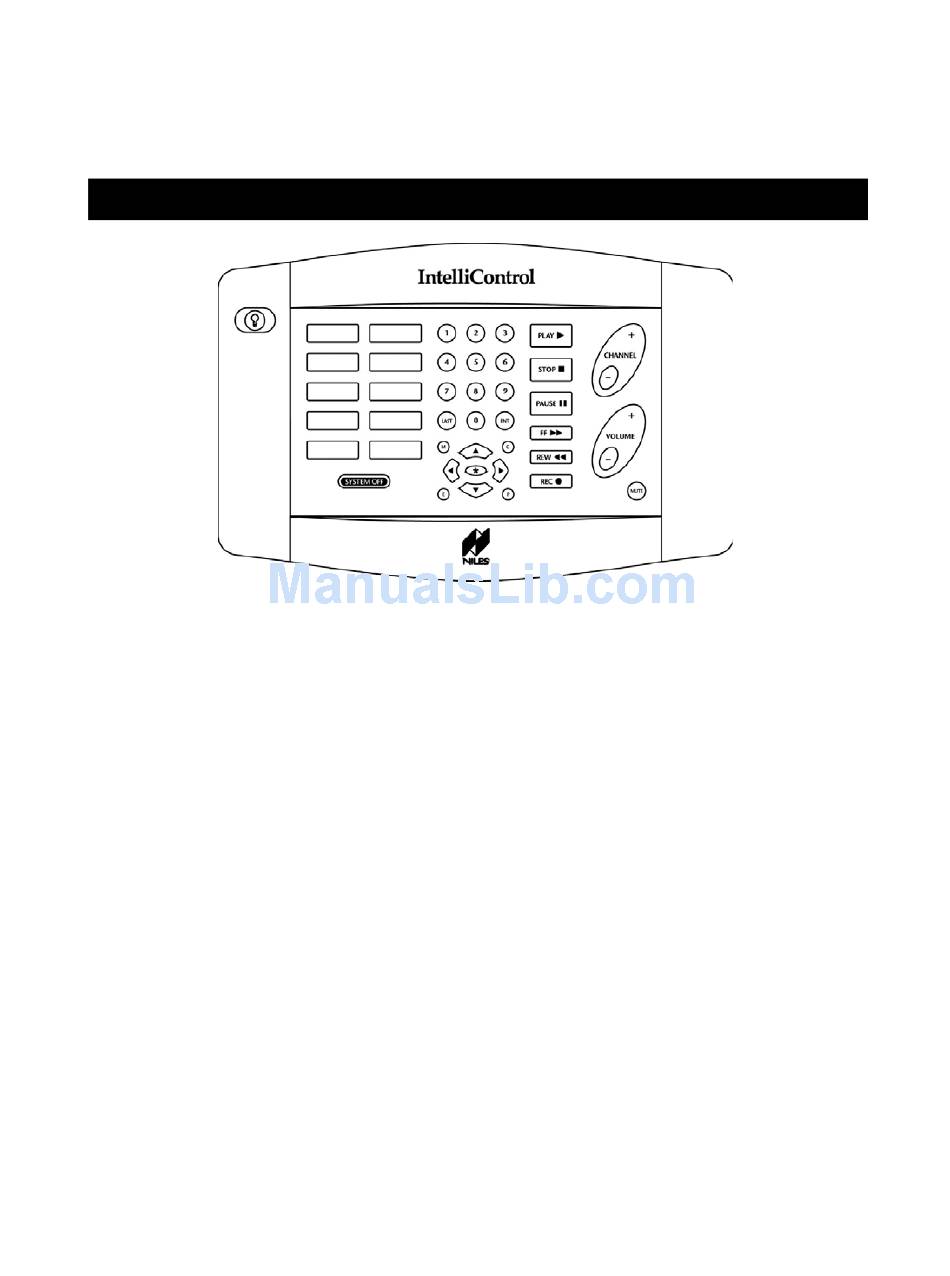

Figure 1 The IntelliControl Tabletop Remote

The Tabletop Remote

The Tabletop Remote is a radio frequency (RF) transmitter which communicates with the
Main System Unit (MSU) on a RF carrier frequency of 418MHz. The Tabletop Remote
features the following:
•
Ten Master Keys – The ten Master Keys on the left side of the remote may be
custom labeled and will initiate the IntelliControl's automation functions when
programmed via the IntelliFile II PC Interface and Programming Software. Pressing a
Master Key will prompt the MSU to check the On/Off status of all of the components in
the system and issue the necessary IR commands to configure the system so the
user may enjoy the selected source.
•
System Off Key – When pressed, the Tabletop Remote will instruct the MSU to
check the On/Off status of all the components in the system and issue the necessary
IR commands to power down the system.
•
Backlight Key – Pressing the Backlight Key (located on the upper left corner of the
Tabletop Remote) will illuminate all the keys to enable complete control of the system
in dark rooms.
•
Function Keys – The thirty-two Function Keys include the numeric, menu, transport,
mute, volume, and channel keys. Once a Master Key is selected, the Function Keys
