The IR/RF Test LED

The RF test LED may be plugged into an IR flasher output to determine if the jack (or

the flasher driver circuitry) is working properly. The Test LED should light red when

commands are issued from the remote and output via that port. The Test LED may also

be plugged into the jack on the bottom lip of the Tabletop Remote to determine if the

tactile buttons are making contact.

Note: Testing the Tabletop Remote with the Test LED DOES NOT determine if the

Remote is transmitting RF, only that the buttons are making electrical contact.

Also Note: DO NOT PLUG THE TEST LED INTO THE AUDIO, VIDEO, OR

ASSIGNABLE 12V CONTROL VOLTAGE OUTPUTS. YOU WILL DESTROY THE

TEST LED.

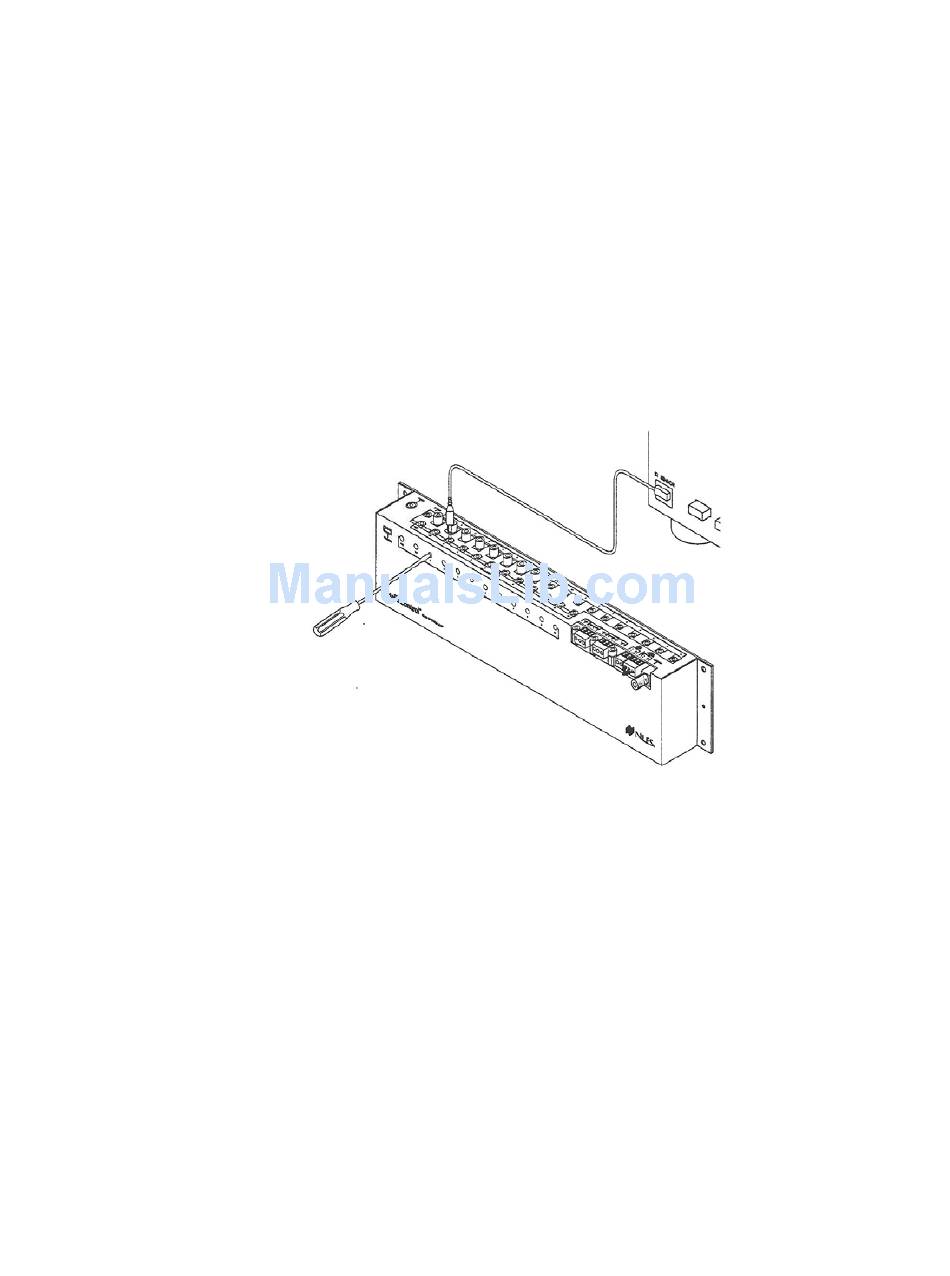

Figure 13 Adjusting Flasher Levels
