AD-8920 REMOTE DISPLAY INSTRUCTION MANUAL
（日本語の取扱説明書は反対面をご覧ください。 ）

1. Introduction

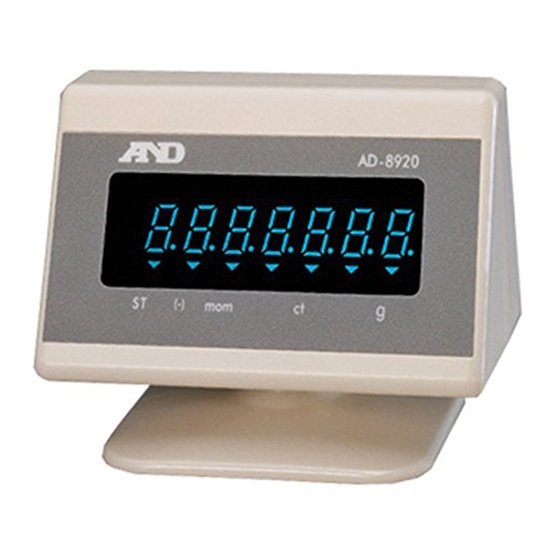

The AD-8920 is a remote display that uses vacuum fluorescent display technology. It displays the weighing
data transmitted by an A&D manufactured weighing instrument using RS-232C or current loop. Applicable
weighing instruments (electronic balances/platform scales) are listed below. When the output connector of the
weighing instrument is of the DIN type, an optional DIN conversion cable is required.
What the package contains
・AD-8920 main unit
・Communication cable (Approx. 1 m)
・AC adapter
・Instruction manual (this leaflet)
Options (Sold separately)
DIN conversion cable
・OP-01
(Approx. 25 cm)

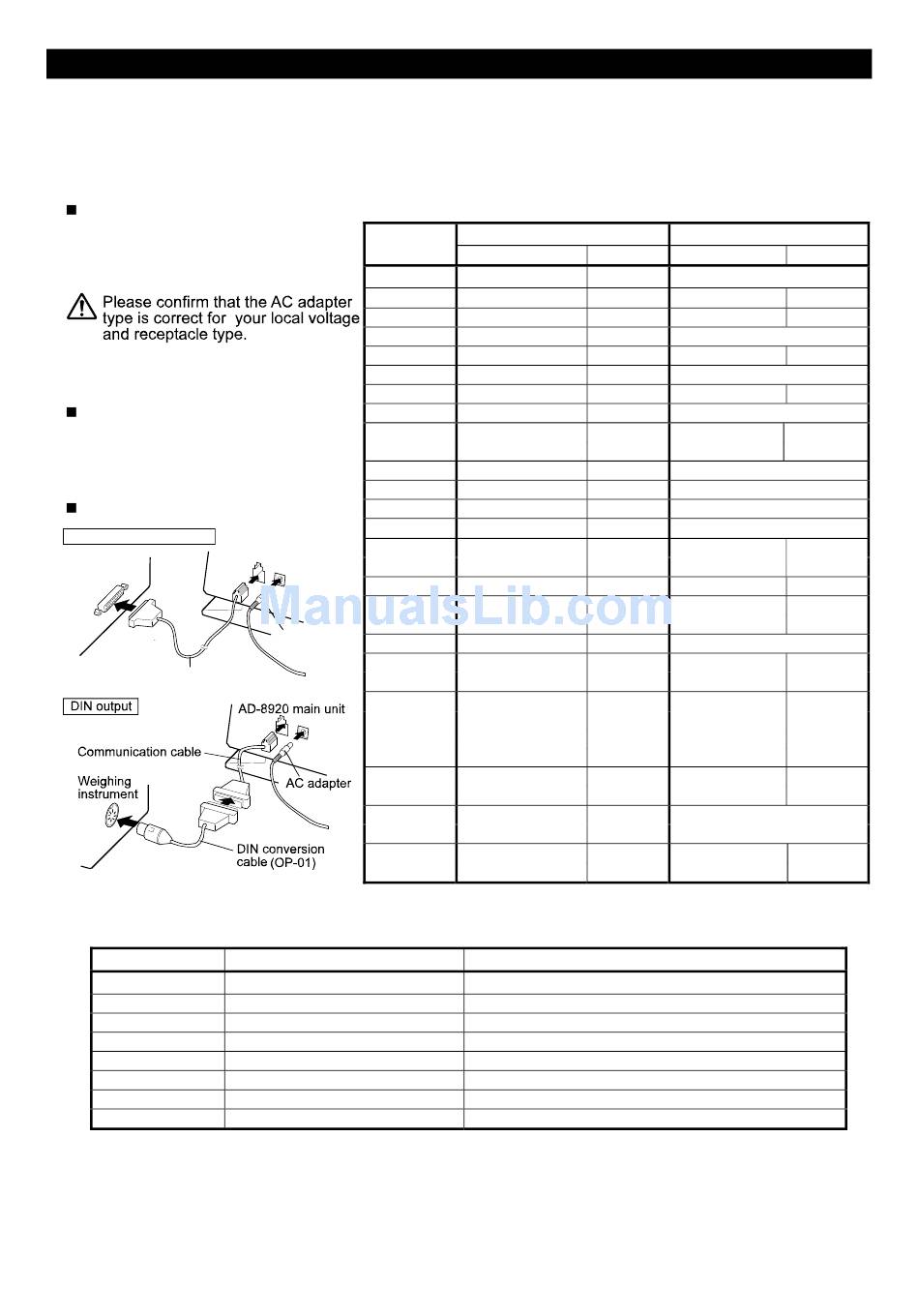

Connection diagram
D-SUB9/D-SUB25 output
Weighing
instrument
Communication cable

2. Preparation

2-1. Setting the weighing instrument
Item
Data output mode
Baud rate
Length, Parity bit
Stop bits
Terminator
Data format
CTS control
Output (hardware)
Note) The available items depend on the weighing instrument. (An item is not available when the setting is fixed.)
For a detailed description of the settings, refer to the instruction manual of each weighing instrument.
2-2. Connecting the AD-8920
1.Confirm that the AC adapter is of the correct type. 2.Refer to the Table1 shown above to connect the
communication cable correctly. Use the OP-01 DIN conversion cable when the output connector on the
weighing instrument is of the DIN type. 3.Refer to the connecting diagram shown above to connect the
AD-8920 to the weighing instrument by the communication cable.
1WMPD4000178C
Table 1 Applicable instruments and required options (As of August, 2007)
Weighing
instrument
AD-4212A/B
EK-G,EW-G
EK-H
EK-i,EW-i
ET-W
FC-i
FG
FG-M/L
FP
FS
FX-i
GH,HR-i
GR
GX,GF, GP,
AD-8920 main unit
GX-K
HA-M
HA-A
AC adapter
HC-i
HF,HM
HP
HR
HV-G
HW-G
HX
Table 2 List of instrument settings
Setting
Stream mode
2400bps or 600bps
7 bits-even, 7 bits-odd, or 8 bits-none
1 bit or 2 bits
<CR> or <CR><LF>
A&D standard format
No control of CTS, RTS
RS-232C or current loop
Using RS-232C
On instrument
On AD-8920
None (D-SUB25) None
OP-03(D-SUB25) None
OP-03H(D-SUB25) None
None (D-SUB9) None
OP-03W(D-SUB25) None
None (D-SUB9) None
OP-03(DIN7) OP-01
OP-23(DIN8) OP-01
OP-03(D-SUB25) None
OP-03(DIN7) OP-01
None (D-SUB9) None
None (D-SUB9) None
None (D-SUB25) None
None (D-SUB25) None
OP-03(D-SUB25) None
OP-03(D-SUB25) None
OP-03(DIN8) OP-01
OP-03(D-SUB25) None
OP-03(D-SUB25) None
OP-03(D-SUB25) None
None (DIN8) OP-01
None (D-SUB25) None
Outputs the weighing data continuously.
AD-8920 recognizes the baud rate automatically.
AD-8920 functions correctly with any one of those listed.
AD-8920 functions correctly with either one.
AD-8920 functions correctly with either one.
AD-8920 recognizes the output mode automatically.
P-3/4
Using current loop
On instrument
Not applicable
OP-05(DIN7)
OP-05H(DIN7)
Not applicable
OP-05W(DIN7)
Not applicable
OP-05(DIN7)
Not applicable
OP-03 or
OP-04(DIN7)
Not applicable
Not applicable
Not applicable
Not applicable
OP-04 or
OP-06(DIN7)
OP-03(DIN7)
OP-03 or
OP-04(DIN7)
Not applicable
OP-03 or
OP-05(DIN7)
Either one of
OP-03,OP-04,
OP-05,OP-06,
(DIN7)
OP-03 or
OP-05(DIN7)
Not applicable
OP-04 or
OP-05(DIN7)
Description
On AD-8920
OP-01
OP-01
OP-01
OP-01
OP-01
OP-01
OP-01
OP-01
OP-01
OP-01
OP-01
OP-01
