- Page 1 LCC11 シリーズ 圧縮型ロードセル LCC11 Series Compression Load Cells 取 扱 説 明 書 Instruction Manual 1WMPD4000448B MSAWT001 ﾍﾟｰｼﾞ 1...

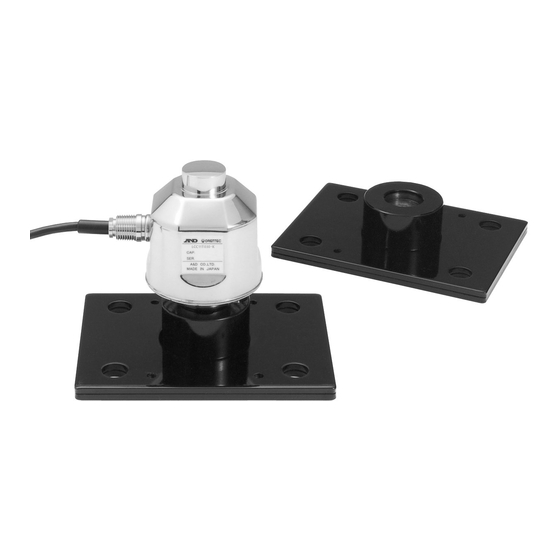

- Page 2 2. LCC11 Series Compression Load Cells The Type with Pre-Installed Accessories Accessories are a bearing plate with upper socket and a mounting plate with lower socket. LCC11T010-K (Rated capacity 100 kN ) LCC11T020-K (Rated capacity 200 kN ) LCC11T030-K...
-
Page 3: Specifications
4. Specifications Rated capacities........100 kN, 200 kN, 300 kN Rated output...........2mV/V±0.1% Maximum safe overload ......200%R.C. Combined error ........±0.016%R.O. Zero balance ..........±1%R.O. Compensated temperature range...-20°C ~ 60°C Minimum excitation voltage ....5VDC Recommended excitation voltage ..5 ~ 12VDC Maximum excitation voltage ....15VDC Input terminal resistance ......800Ω±80 Ω... - Page 4 Step 2 There are rotation stopper pins on the load cell. Insert each pin into the guide of the lower socket. Arrange the direction of the load cell cable along a wider movement of the bearing plate to prevent interference between these pins and the lower socket. Example: For a truck scale, arrange the cable direction along to a vehicle direction.
- Page 5 6. Socket Shapes When you make sockets, use the following drawing. The hardness of the socket is HRC32 to 38. More than 5 More than 5 Bottom φ44 +0.2 Bottom φ35 +0.2 Make 2 guides at least 6.3S 6.3S Taper 10° Taper 5°...
-
Page 6: Maintenance
Do not input any excessive excitation voltage above the tolerance, it will cause damage to the load cell. Avoid shock and overload to the load cell. Use lubricant between the load cell and sockets. When the welding is executed, ground the earth line and disconnect the load cell cable from the indicator to protect the load cell and indicator from the welding current. - Page 7 9. Dimensions The Type With Pre-Installed Accessories 200±1 8-φ20 Both plate Grounding terminal M4 Load φ72 Upper dust cover 4-wire shield cable Dust cover PT-1/2 φ72 φ99 φ94 Support The Type Without Accessories Grounding terminal M4 Load φ34 4-wire shield cable PT-1/2 Rotation stopper pin φ10 φ43...
- Page 8 3-23-14 Higashi-Ikebukuro, Toshima-ku, Tokyo 170-0013 JAPAN Telephone: [81] (3) 5391-6132 Fax: [81] (3) 5391-6148 A&D ENGINEERING, INC. 1756 Automation Parkway, San Jose, California 95131 U.S.A. Telephone: [1] (408) 263-5333 Fax: [1] (408)263-0119 A&D INSTRUMENTS LIMITED <UK Office> Unit 24/26 Blacklands Way, Abingdon Business Park, Abingdon, Oxfordshire OX14 1DY United Kingdom Telephone: [44] (1235) 550420 Fax: [44] (1235) 550485 A&D INSTRUMENTS LIMITED...
