1. LCC12 Series Weigh Modules
LCC12T010
LCC12T020
LCC12T030
2. Introduction

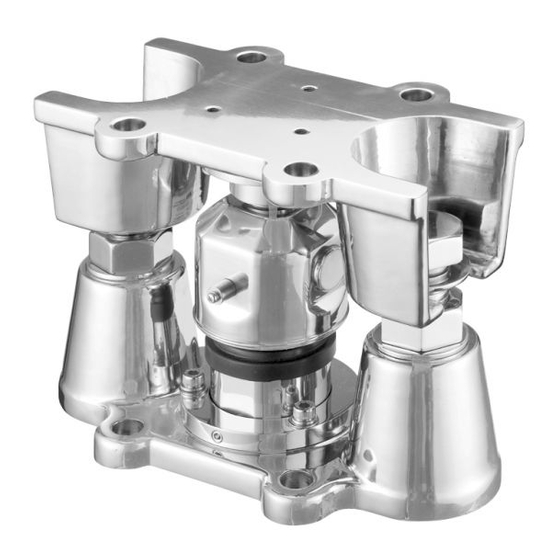

The LCC12 series are stainless steel weigh modules and are composed of a
compression load cell with a self-aligning function and mount fixtures with
built-in anti-vibration mechanism/lift-off protection mechanism.
As the rated capacity range is from 100 kN to 300 kN, the LCC12 series are
optimum for large tank scales.
The LCC12 series can be used in severe environments, equivalent to IP68, as
the load cell is hermetically sealed.
The only required adjustment is checking the stopper units, which allows easy
Installation and maintenance.
Being compact and lightweight, the LCC12 series can be installed almost
anywhere.
Consider the system design and installation carefully because for precision
weighing, the load cell is more sensitive. Read this instruction manual carefully,
for correct installation and precision weighing.
1WMPD4000785B
(Rated capacity 100 kN )
(Rated capacity 200 kN )
(Rated capacity 300 kN )
- 7 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for A&D LCC12T010
Summary of Contents for A&D LCC12T010
- Page 1 Ltd. Product specifications are subject to change without any obligation on the part of the manufacturer. © 2008 1. LCC12 Series Weigh Modules LCC12T010 (Rated capacity 100 kN ) LCC12T020 (Rated capacity 200 kN ) LCC12T030 (Rated capacity 300 kN ) 2.
-
Page 2: Specifications
1WMPD4000785B 3. Specifications Rated capacities........100 kN, 200 kN, 300 kN Rated output...........2mV/V±0.1% Maximum safe overload ......150%R.C. Permissible horizontal force ....75 kN Permissible lifting force......80 kN Combined error ........±0.03%R.O. Zero balance ..........±1%R.O. Compensated temperature range...-20°C to 60°C Minimum excitation voltage ....5VDC Recommended excitation voltage ..5 to 12VDC Maximum excitation voltage ....15VDC Input terminal resistance ......800Ω±80 Ω... - Page 3 1WMPD4000785B 5. Installation 1. Align and machine the mounting holes on the platforms to secure the upper and lower mount fixtures, and on the brackets for a tank. 2. Insert a jack between the platform and tank and raise the tank to install the weigh module.
- Page 4 1WMPD4000785B 6. Precautions Design the structure to install the load cell strong enough to withstand the load. Make the platform strong enough to withstand the load. Protect the load cell from direct sunlight when the system is installed in the open air.
- Page 5 1WMPD4000785B 8. Dimensions - 11 - 1WMPD4000785B...
