Installation
Built-In Speedcook Ovens
Connect
Elect Jcal
Electrical Shock Hazard
• Electrical ground is required on the appliance.
• Do not connect the electrical supply until
appliance is permanently grounded.
• Disconnect power to the junction box before
making the electrical connection.
• This appliance must be grounded to a metallic,
permanent wiring system, or a grounding
connector should be connected to the
grounding terminal or wire lead on the appliance.
Failure to do so could result in fire, personal injury or electrical
shock.

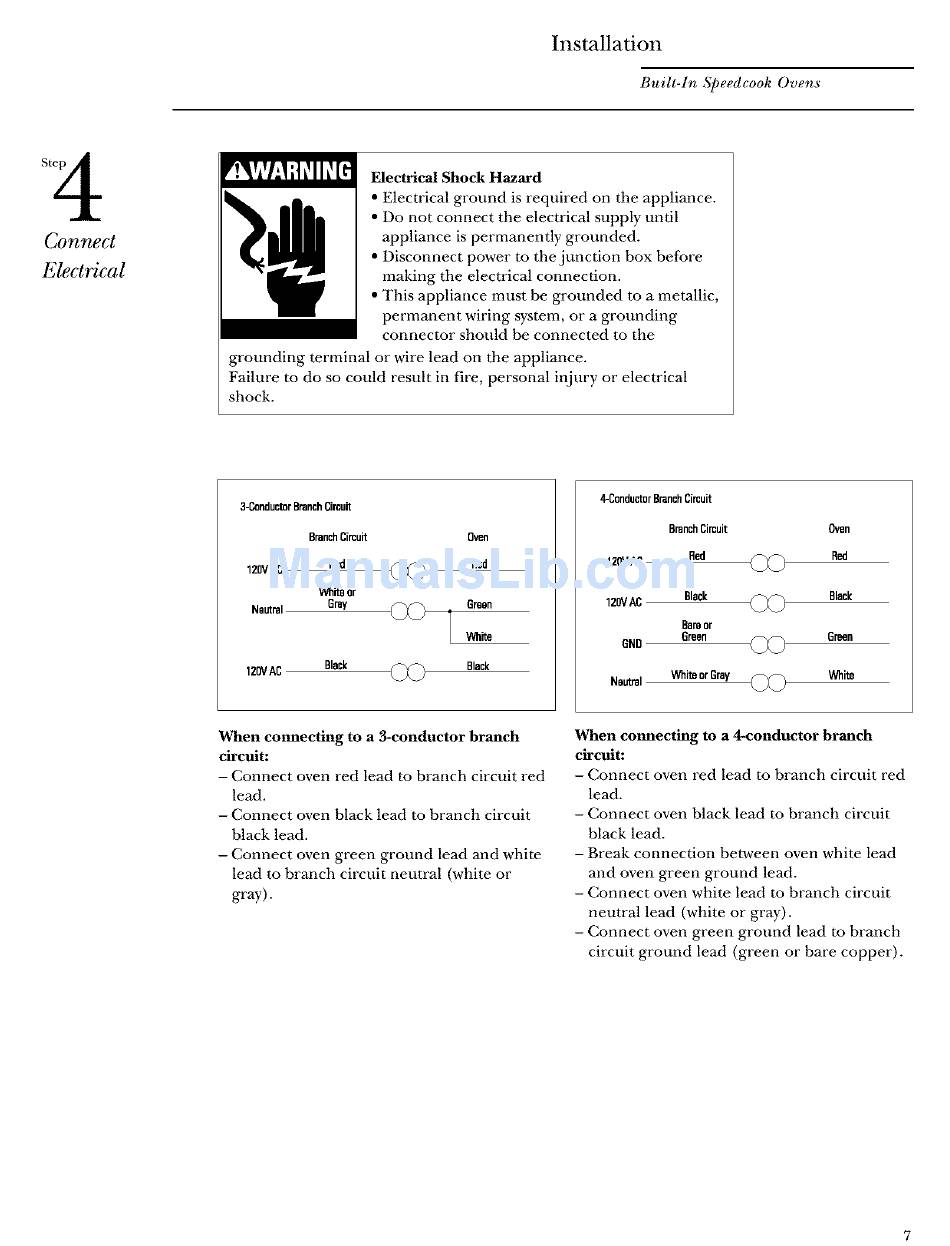

3-Conducter B ranch Circuit
Branch Circuit
120VAC Red
_ite or
Neutral Gray
120VAC Black
Red
Green
Whffe
Black
4-conductor Branch Circuit
Branch Circuit Oven
120VAC Red Red
120VAC Black Black
Bara
or
6reen
Green
GNB
Nsutral White orGray White
When connecting to a 3-conductor branch
circuit:
- Connect oven red lead to branch circuit red
lead.
- Connect oven black lead to branch circuit
black lead.
- Connect oven green ground lead and white
lead to branch circuit neutral (white or
gray).
When connecting to a 4-conductor branch
circuit:
- Connect oven red lead to branch circuit red
lead.
- Connect oven black lead to branch circuit
black lead.
- Break connection between oven white lead
and oven green ground lead.
- Connect oven white lead to branch circuit
neutral lead (white or gray).
- Connect oven green ground lead to branch
circuit ground lead (green or bare copper).
