Cabinetry
Built-In Speedcook Ovens
Prepm the
Opening
4

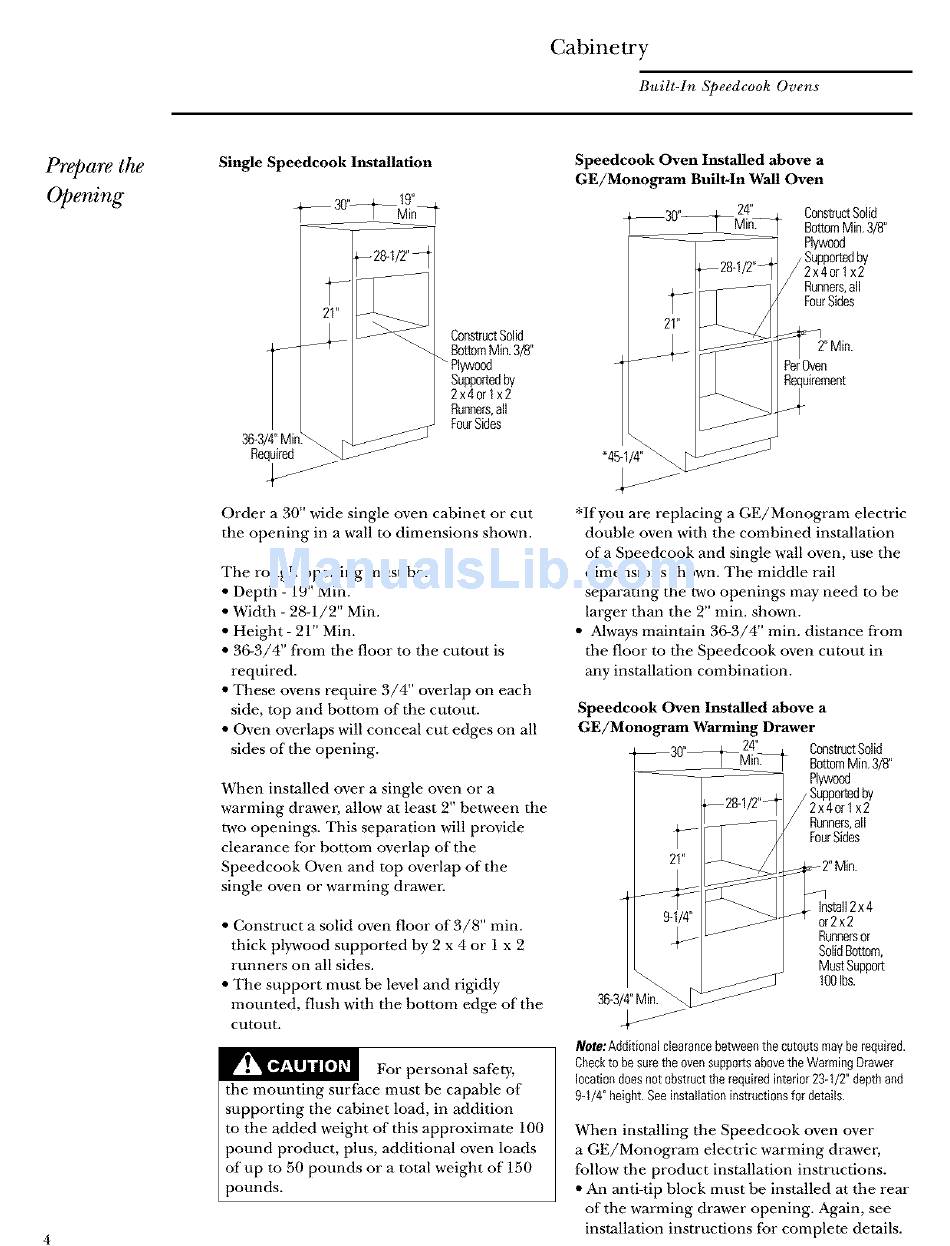

Single Speedcook Installation
- 28-1/2" _
3B3j4M,0
Required
Construct S olid
130tt0m Mie.3/8"
_" Plyw0ed
Supportedby
2x40rlx2
Runners, a ll
Four S ides
Order a 30" wide single oven cabinet or cut
the opening in a wall to dimensions shown.
The rough opening must be:
• Depth - 19" Min.
• Width - 28-1/2" Min.
• Height - 21" Min.
• 36-3/4" fi'om the floor to the cutout is
required.
• These ovens require 3/4" overlap on each
side, top and bottom of the cutout.
• Oven overlaps will conceal cut edges on all
sides of the opening.
When installed over a single oven or a
warming drawe_; allow at least 2" between the
two openings. This separation will provide
clearance fbr bottom overlap of the
Speedcook Oven and top overlap of the
single oven or warming drawer.
• Construct a solid oven floor of 3/8" min.
thick plywood supported by 2 x 4 or 1 x 2
runners on all sides.
• The support must be level and rigidly
mounted, flush with the bottom edge of the
cutout.
For personal safizry,
the mounting surface must be capable of
supporting the cabinet load, in addition
to the added weight of this approximate 100
pound product, plus, additional oven loads
of up to 50 pounds or a total weight of 150
pounds.
Speedcook Oven Installed above a
GE/Monogram Built-In Wall Oven
Construct S olid
BottomMin.3/8"
Plywood
,Supported b y
2x4orlx2
Runners, all
Four S ides
PerOven
*If you are replacing a GE/Monogram electric
double oven with the combined installation
of a Speedcook and single wall oven, use the
dimensions shown. The middle rail
separating the two openings may need to be
larger than the 2" min. shown.
• Always maintain 36-3/4" min. distance fi-om
the floor to the Speedcook oven cutout in
any installation combination.
Speedcook Oven Installed above a
GE/Monogram Warming Drawer
_30" Construct Solid
Bottom Min.3/8"
Plywood
,Supported b y
2x4orlx2
Runners, all
Four S ides
21"
36-3/4" M in.
Install2x4
or2x2
Runners or
Solid Bottom,
MustSupport
100Ibs.
Noto:Additional clearance between the cutouts may be required.
Checkto be sure the oven supports above the Warming Drawer
location does not obstruct the required interior 23-1/2" depth and
9-1/4" height See installation instructions for details
When installing the Speedcook oven over
a GE/Monogram electric warming drawe_.
fi_llow the product installation instructions.
• An anti-tip block must be installed at the rear
of the warming drawer opening. Again, see
installation instructions fi_r complete details.
