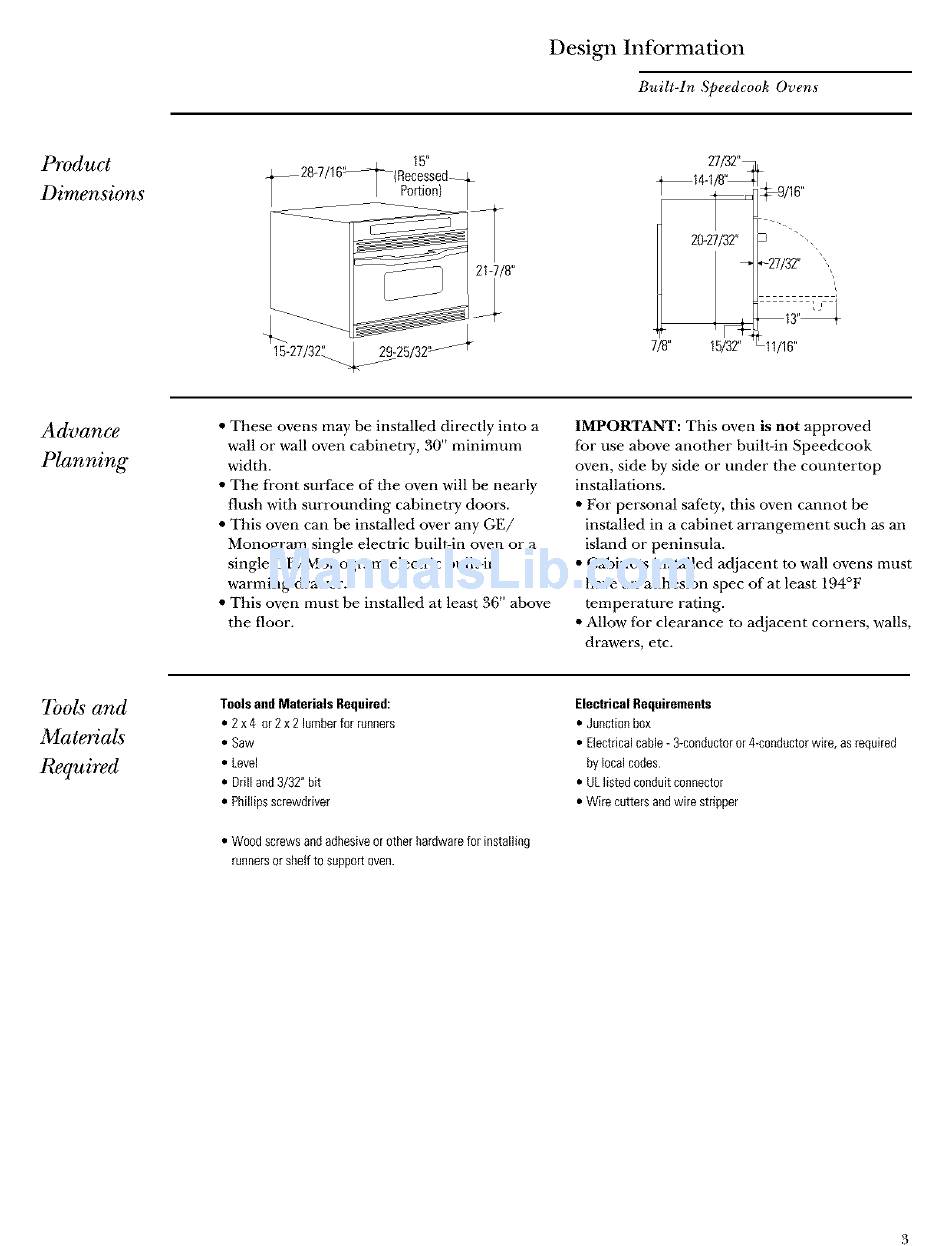

GE SCB2000 Installation Instructions Manual page 3

Design Information
Built-In Speedcook Ovens
Product
Dimensions
21-7/8"
15_-27/32 " 29-25/32 "/r
27/32"4],_
14-I/8"_
4_ :--9/16"
20-27/32"
D
-,,
___ -27/32" ",
122222::_ ]ZZJ
13. "_r
7/8" 15/32"_r 11/16"
Advance
Planning
• These ovens may be installed directly into a
wall or wall oven cabinetry, 30" minimum
width.
• The fi'ont surface of the oven will be nearly
flush with surrounding cabinetry doors.
• This oven can be installed over any GE/
Monogram single electric buih-in oven or a
single GE/Monogram electric buih-in
warming drawer.
• This oven must be installed at least 36" above
the floor.
IMPORTANT: This oven is not approved
for use above another built-in Speedcook
oven, side by side or under the countertop
installations.
• For personal safety, tbis oven cannot be
installed in a cabinet arrangement such as an
island or peninsula.
• Cabinets installed ac[jacent to wall ovens must
have an adhesion spec of at least 194°F
temperature rating.
• Allow for clearance to adjacent corners, walls,
drawers, etc.
7bols and
Materials
.%qui, d
Tools and Materials Required:
• 2 x 4 el 2 x 2 lumber fol runners
• Saw
• Level
• Drill and 3/32" bit
• Phillips screwdriver
• Wood screws and adhesive or other hardware for installing
runners or shelf to support oven.
Electrical Requirements
• Junction box
• Electrical cable - 3-conductor or &conductor wire, as required
by local codes
• UL listed conduit connector
• Wire cutters and wire stripper
