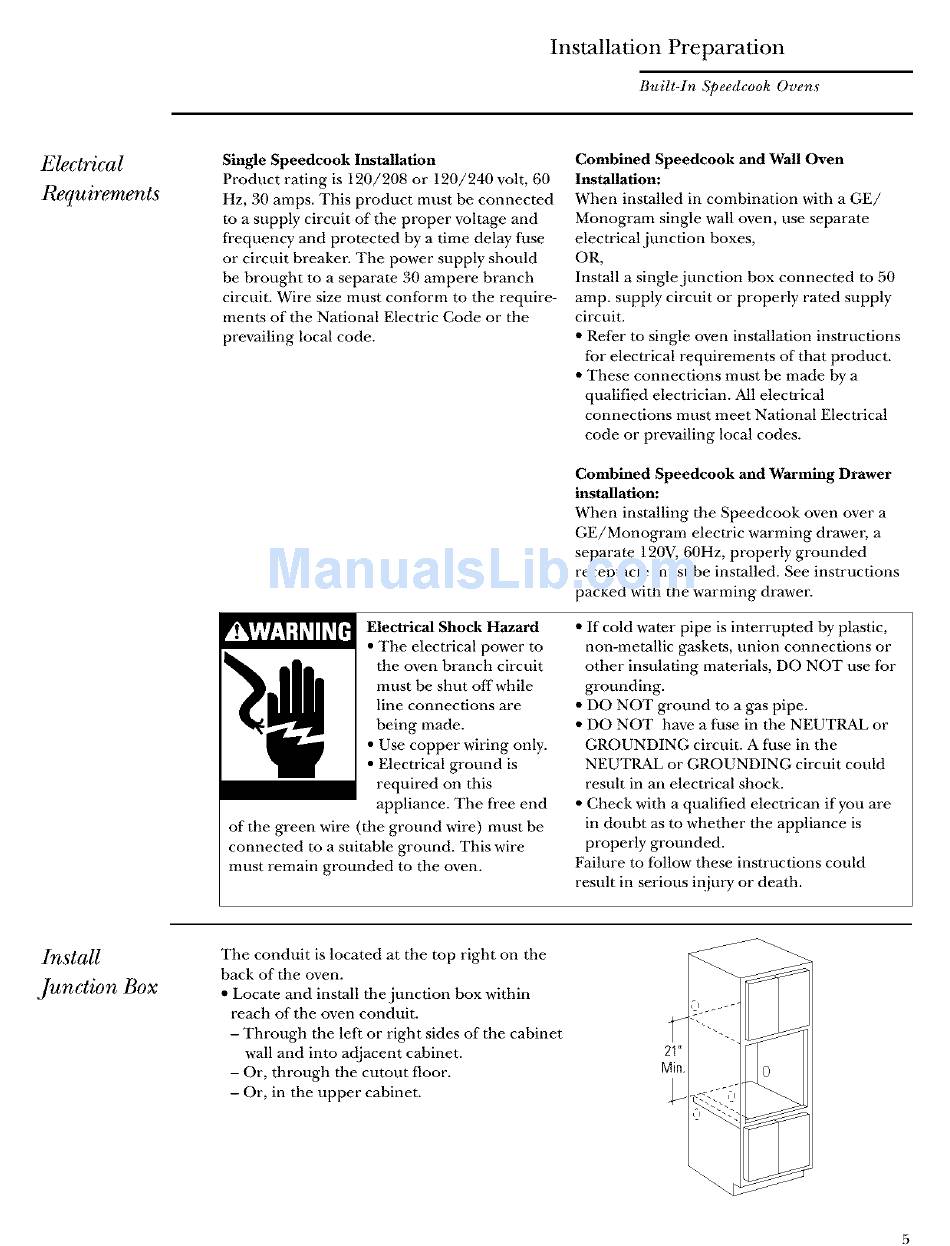

Installation Preparation
Built-In Speedcook Ovens
Elect,Jcal
Requirements
Single Speedcook Installation
Product rating is 120/208 or 120/240 volt, 60
Hz, 30 amps. This product must be connected
to a supply circuit of the proper voltage and
frequency and protected by a time delay fuse
or circuit breaker. The power supply should
be brought to a separate 30 ampere branch
circuit. Wire size must conform to the require-
ments of the National Electric Code or the
prevailing local code.
Combined Speedeook and Wall Oven
Installation:
When installed in combination with a GE/
Monogram single wall oven, use separate
electrical junction boxes,
OR,
Install a single junction box connected to 50
amp. supply circuit or properly rated supply
circuit.
• Refer to single oven installation instructions
for electrical requirements of that product.
• These connections must be made by a
qualified electrician. All electrical
conneclions must meet National Electrical
code or prevailing local codes.
Combined Speedcook and Warming Drawer
installation:
When installing the Speedcook oven over a
GE/Monogram electric warming drawer, a
separate 120V, 60Hz, properly grounded
receptacle must be installed. See instructions
packed with the warming drawer.
Electrical Shock Hazard
• The electrical power to
the oven branch circuit
must be shut offwhile
line connections are
being made.
• Use copper wiring only.
• Electrical ground is
required on this
appliance. The free end
of the green wire (the ground wire) must be
connected to a suitable ground. This wire
must remain grounded to the oven.
• If cold water pipe is interrupted by plastic,
non-metallic gaskets, union connections or
other insulating materials, DO NOT use for
grounding.
• DO NOT ground to a gas pipe.
• DO NOT have a fuse in the NEUTRAL or
GROUNDING circuit. A tuse in the
NEUTRAL or GROUNDING circuit could
result in an electrical shock.
• Check with a qualified electrican if you are
in doubt as to whether the appliance is
properly grounded.
Failure to tollow these instructions could
result in serious it!imy or death.
Install
Junction Box
The conduit is located at the top right on the
back of the oven.
• Locate and install the junction box within
reach of the oven conduit.
- Through the left or right sides of the cabinet
wall and into adjacent cabinet.
- Or, through the cutout floor.
- Or, in the upper cabinet.
Min.
5
