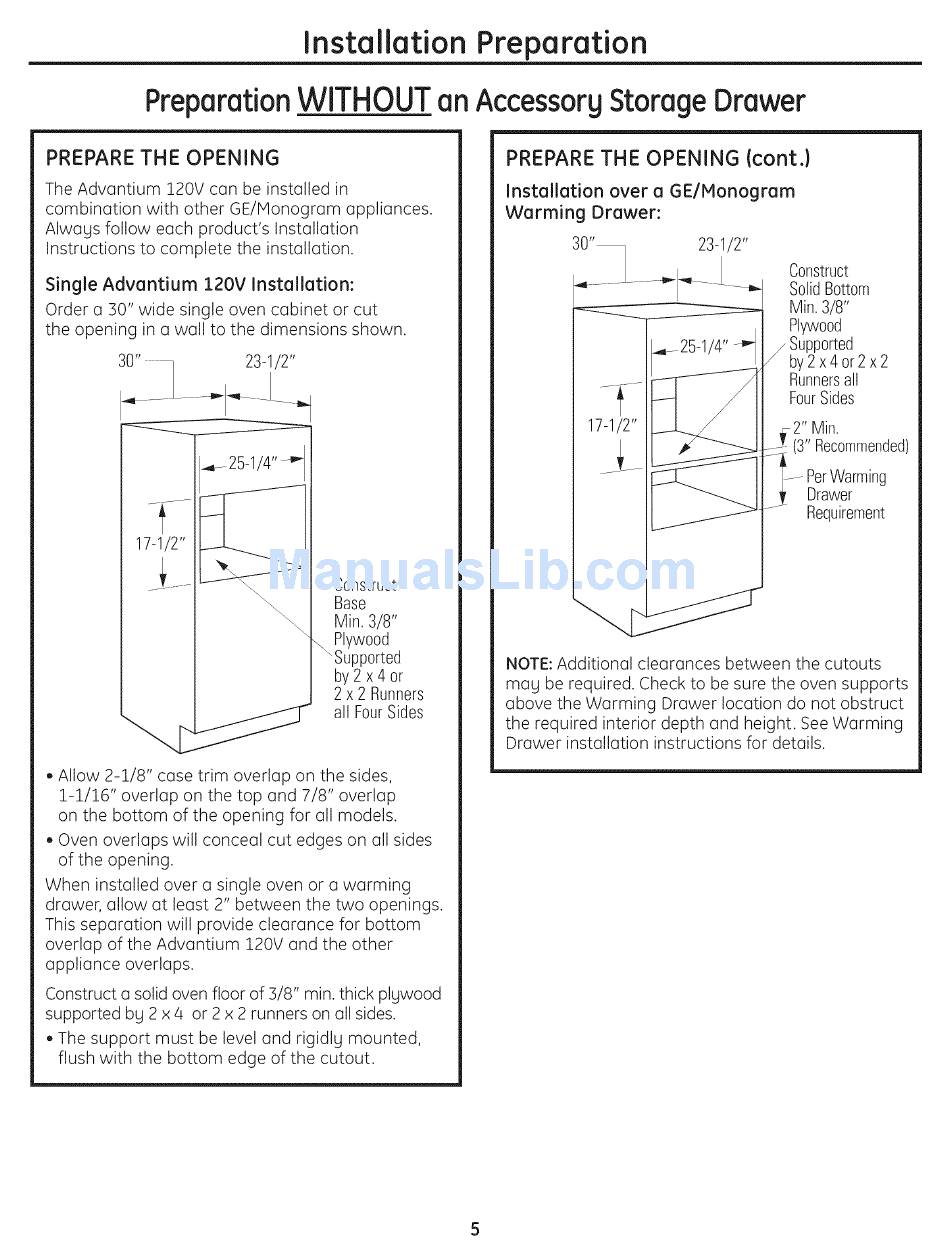

Installation Preparation
PreparationWITHOUTan AccessoryStorage Drawer
PREPARE THE OPENING
The Advantium 120V can be installed in
combination with other GE/Monogrom oppliances.
AlwoLIs follow eoch product's Installotion
Instructions to complete the installation.
Single Advantium 120V Installation:
Order a 30" wide single oven cobinet or cut
the opening in a wall to the dimensions shown.
\\ \
\\\\
Construct
Base
Min. 3/8"
_Plyw00d
Supported
by2x40r
2 x 2 Runners
all Four Sides
• Allow 2-1/8" cose trim overlop on the sides,
1-1/16" overlop on the top ond 7/8" overlop
on the bottom of the opening for oll models.
• Oven overlaps will conceal cut edges on all sides
of the opening.
When instolled over o single oven or o warming
drower, allow ot least 2" between the two openings.
This separotion will provide clearonce for bottom
overlap of the Advantium 120V and the other
applionce overlaps.
Construct o solid oven floor of 3/8" min. thick plgwood
supported bg 2 x 4 or 2 x 2 runners on oll sides.
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
PREPARE THE OPENING {cont.)
Installation over a GE/Monogram
Warming Drawer:
17-1/2"
23-1/2"
Construct
Solid Bottom
Min. 3/8"
Plywood
_ Supp0rted
by2x40r2x2
Runnersall
FourSides
2" Min.
(3" Recommended)
PerWarming
Drawer
Requirement
NOTE: Additionol cleoronces between the cutouts
mall be required. Check to be sure the oven supports
above the Warming Drawer Iocotion do not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.
